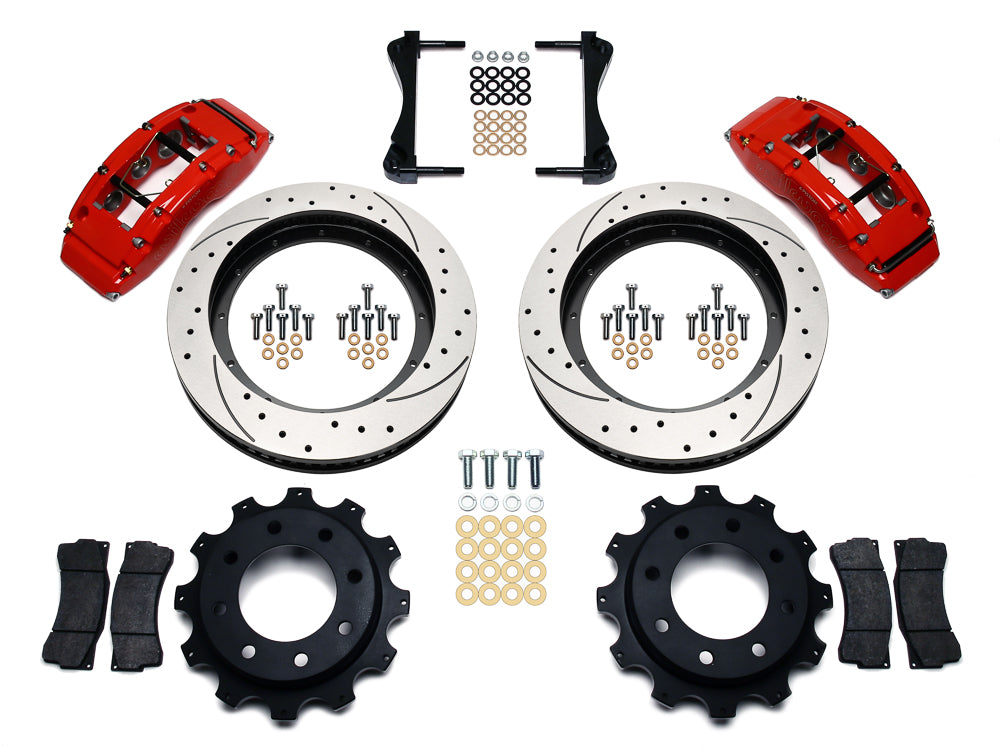

Wilwood red TC6R rear brake kit with 16.00-inch drilled and slotted rotors, calipers and mounting components laid out

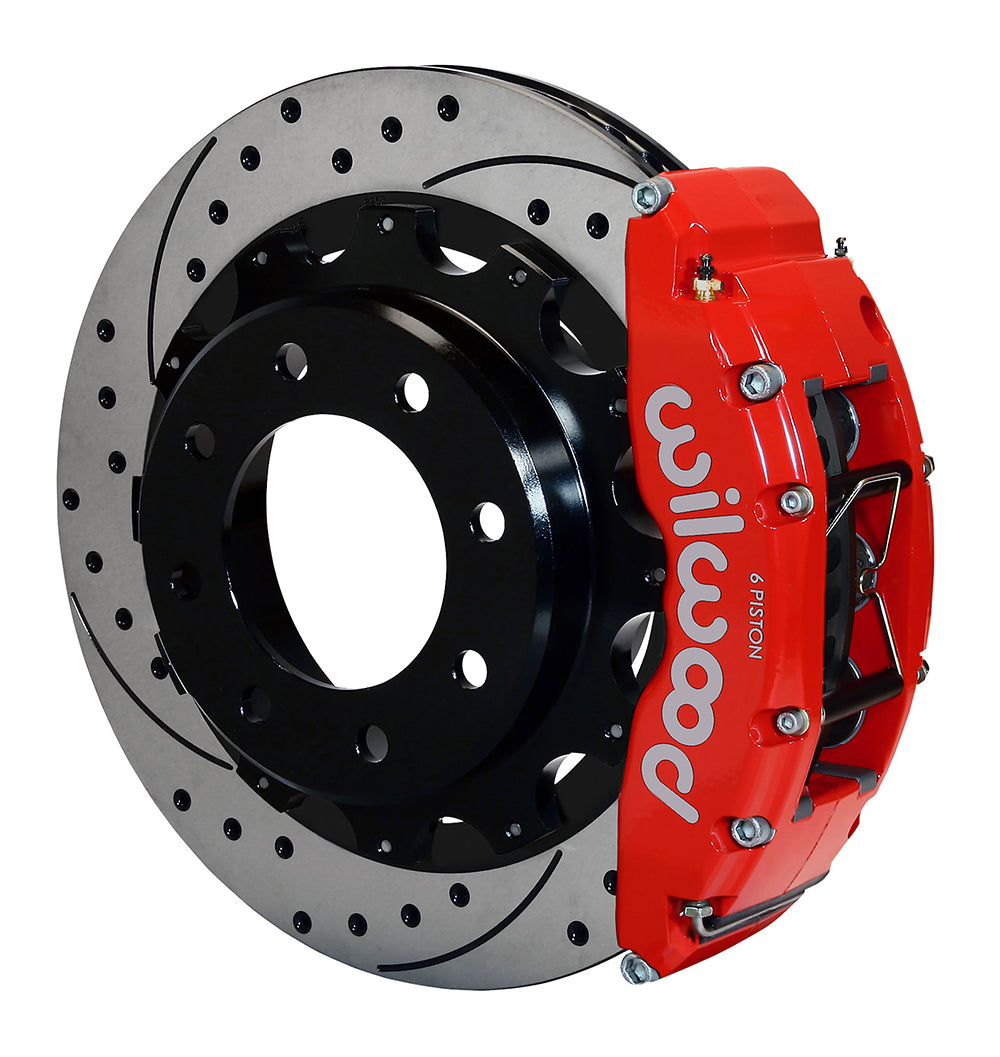

Assembled view of a Wilwood red TC6R rear caliper with a 16.00-inch drilled and slotted rotor
Wilwood red TC6R rear brake kit with 16.00-inch drilled and slotted rotors, calipers and mounting components laid out
Assembled view of a Wilwood red TC6R rear caliper with a 16.00-inch drilled and slotted rotor

Wilwood Rear Drilled/Slotted Brake Kit - Selected 1999–2009 GM Trucks / SUVs and Hummer H2, 4.63-inch Rear Register, 16.00-inch Rotors and Red TC6R

SKU: 140-9405-DR

$3,200.56 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red TC6R calipers surround the SRP rotors in this 16-inch GM/H2 rear system. The package retains the OE parking mechanism through iron hats sized for a 4.63-inch register, with hydraulic hoses purchased for the specific vehicle year. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among the disc brake systems and components Wilwood Engineering designs and manufactures. The Camarillo, California company was founded by Bill Wood in 1977 and supports motorsport, street-performance and specialized applications. Choose each component to match the complete system’s braking requirements.

Technical Details

Kit contents and separate parts

  • Manufacturer part number: 140-9405-DR
  • Supply: one kit with brake components for both sides of the rear axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Hydraulic hoses: not included
  • OE parking brake retained; 4.63-inch center register is mandatory.

Rotors and mounting dimensions

  • Rotors: 16.00 in; 406.4 mm diameter x 1.38 in; 35.05 mm thick; vented Iron
  • Friction faces: SRP Drilled & Slotted
  • Rotor finish: Black Electro Coat
  • Internal vanes: 72 staggered
  • Hats: iron; Black E-Coat; 1.780-inch hat offset
  • Rotor/hat wheel-stud clearance patterns: 8 x 6.5 in; 8 x 165.1 mm
  • Hat wheel-stud clearance holes: 0.640 in, corresponding to the listed hat patterns

Calipers and friction components

  • Calipers: TC6; 6 pistons per caliper
  • Caliper finish: Red Powder Coat
  • Body construction: Forged aluminum
  • Piston material: stainless
  • Caliper mounting: radial
  • Hydraulic inlet: 1/8-27 NPT
  • Included pad compound: BP-10
  • Listed piston bore sizes: 1.75 / 1.38 / 1.38 in

Fitment & Compatibility

This eight-lug rear package requires a 4.63-inch axle center register. Check the table below for the listed Silverado/Sierra 1500HD, 2500 and 2500HD, Suburban/Yukon XL 2500 and Hummer H2 applications; steering-system and drive-layout qualifications still apply. The hats retain the OE parking-brake hardware. Measure the register rather than selecting solely by model name. DS-556 specifies separate hoses 220-9811 for 1999–2006 and 220-18649 for 2007–2011 applications; match the actual listed vehicle and connections. Front-kit hose references do not specify this rear system. Nominal minimum wheel diameter: 20 in; 508 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For help matching the axle, spindle and brake components, contact PMB Performance. Our team brings over 20 years of experience in brakes and vehicle restoration.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1999-2004 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear Disc Disc Rear Kit 1, 2, 3
1999-2004 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear Disc Disc Rear Kit 1, 2, 3
2000 Chevrolet Suburban 2500 8 Lug - 4 x 4 w/ 4.63 Center Register Rear Disc Disc Rear Kit 1, 2, 3
2000 GMC Yukon XL 2500 8 Lug - 4 x 4 w/ 4.63 Center Register Rear Disc Disc Rear Kit 1, 2, 3
2001-2002, 2006 Chevrolet Silverado 1500 HD Pickup 8 Lug - All Disc Disc Rear Kit 1, 2, 3
2001-2006 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear Disc Disc Rear Kit 1, 2, 3
2001-2006 Chevrolet Suburban 2500 8 Lug - All w/ 4.63 Center Register Rear Disc Disc Rear Kit 1, 2, 3
2001-2002, 2006 GMC Sierra 1500 HD Pickup 8 Lug - All Disc Disc Rear Kit 1, 2, 3
2001-2006 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear Disc Disc Rear Kit 1, 2, 3
2001-2006 GMC Yukon XL 2500 8 Lug - All w/ 4.63 Center Register Rear Disc Disc Rear Kit 1, 2, 3
2003, 2005 Chevrolet Silverado 1500 HD Pickup 8 Lug - All w/o 4 wheel steering Disc Disc Rear Kit 1, 2, 3
2003, 2005 GMC Sierra 1500 HD Pickup 8 Lug - All w/o 4 wheel steering Disc Disc Rear Kit 1, 2, 3
2003-2006 Hummer H2 Base Base Disc Disc Rear Kit 1, 2, 3
2005-2006 Hummer H2 Adventure Adventure Disc Disc Rear Kit 1, 2, 3
2005-2006 Hummer H2 Luxury Luxury Disc Disc Rear Kit 1, 2, 3
2007-2009 Hummer H2 Adventure Adventure Disc Disc Rear Kit 1, 4, 2, 3
2007-2009 Hummer H2 Base Base Disc Disc Rear Kit 1, 4, 2, 3
2007-2009 Hummer H2 Luxury Luxury Disc Disc Rear Kit 1, 4, 2, 3
2007 Hummer H2 Special Edition Special Edition Disc Disc Rear Kit 1, 4, 2, 3

Application Notes

  1. Fits axle with 4.63 center register only.
  2. Line kit included (manufacturer): None
  3. Rear hoses are separate. DS-556 specifies 220-9811 for 1999–2006 and 220-18649 for 2007–2011 applications; verify the actual vehicle connections and routing.
  4. This is a rear brake kit. Front-system hose references do not specify its rear hose selection; use the rear instructions and verify the vehicle connections.
