Wilwood Front FNSL6R Brake Kit for BMW M3 (1995–1999) and Z3 M Roadster 3.2L (1998–2001) - 14.00-inch GT Slotted Rotors, Red

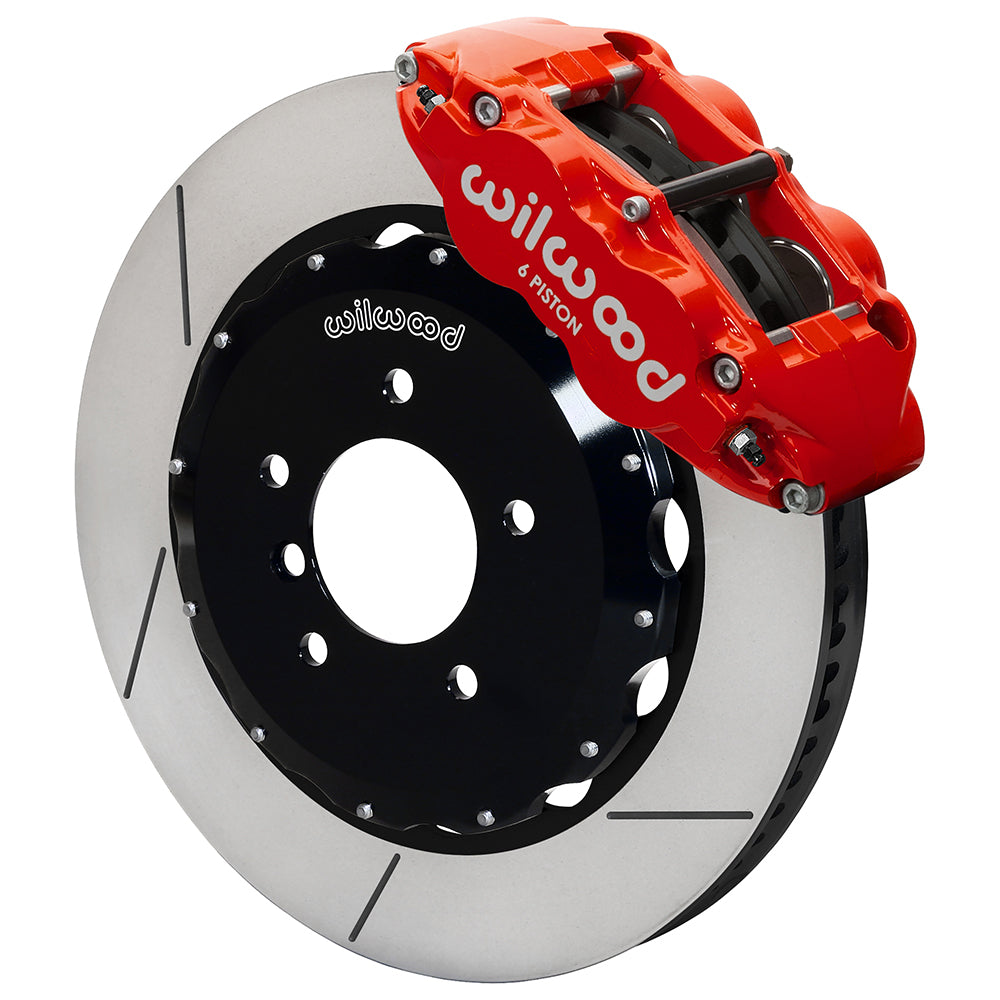

GT slotted rotors and red FNSL6R calipers distinguish this front kit for the listed BMW M3 and Z3 M Roadster. It replaces the service-brake components while retaining the hub and spindle, with hydraulic hoses selected separately. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood, its range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines. Individual parts must match the complete brake system and its operating requirements.

Technical Details

Calipers and friction components

• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
• Caliper finish: Red Powder Coat
• Body construction: Forged aluminum
• Piston material: stainless
• Caliper mounting: radial
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

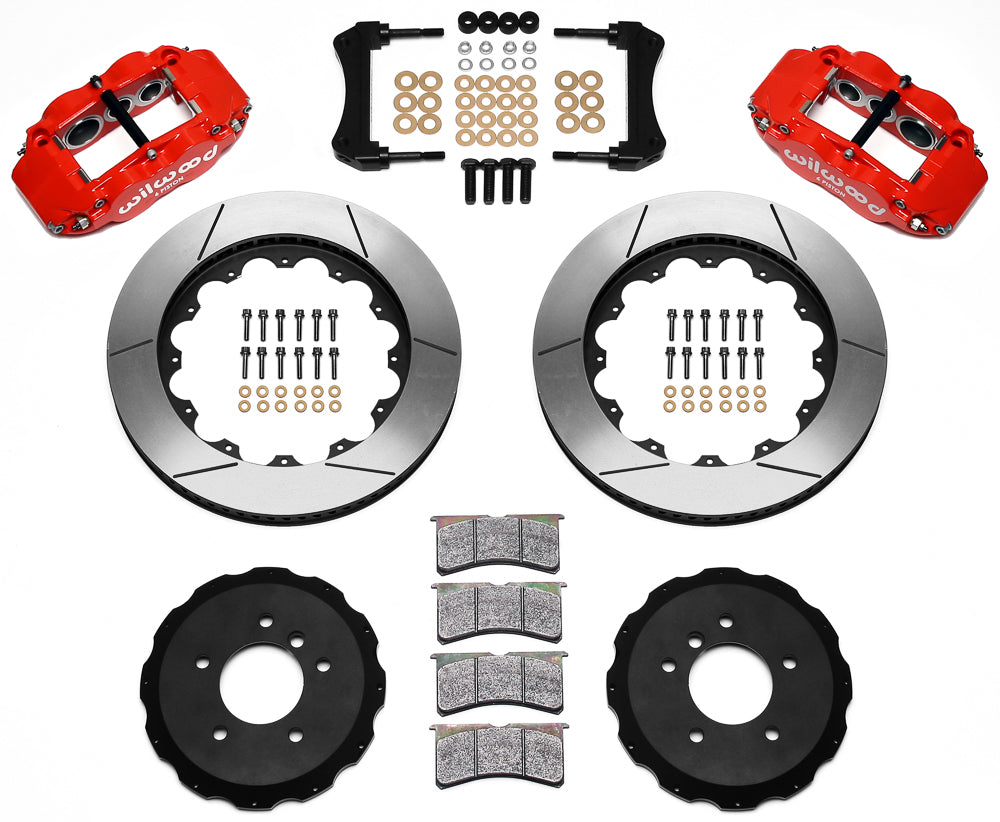

Kit contents and separate parts

• Manufacturer part number: 140-9300-R
• Supply: one kit with brake components for both sides of the front axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Hydraulic hoses: not included
• Separate hose kit application reference: 220-8799; verify the vehicle connections and routing

Rotors and mounting dimensions

• Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
• Friction faces: GT Slotted
• Rotor finish: Black Electro Coat
• Internal vanes: 72 curved
• Hats: aluminum; Black E-Coat; 0.560-inch hat offset
• Rotor/hat wheel-stud clearance patterns: 5 x 4.75 in; 5 x 120.65 mm
• Hat wheel-stud clearance holes: 0.520 in, corresponding to the listed hat patterns

Fitment & Compatibility

Applicable models are the 1995–1999 BMW M3 and the 1998–2001 Z3 M Roadster with the listed 3.2L engine, as detailed in the table below. Do not extend this fitment to other E36 or Z3 brake configurations. The kit keeps the original front hubs and uses aluminum rotor hats; their listed clearance pattern is not a wheel-pattern conversion. DS-539 includes the installation and wheel envelope. Hydraulic hoses are separate, with 220-8799 specified for this application. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

• Installation instructions

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Our team at PMB Performance draws on 20+ years of brake and restoration work. We can help check the mounting requirements and component choices for your build.

Vehicle Applications

Application Notes

1. 14" Rotor
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-8799
