Wilwood Front System for BMW M3 (1995–1999) and Z3 M Roadster 3.2L (1998–2001): 14.00-inch GT Slotted Rotors with Black FNSL6R

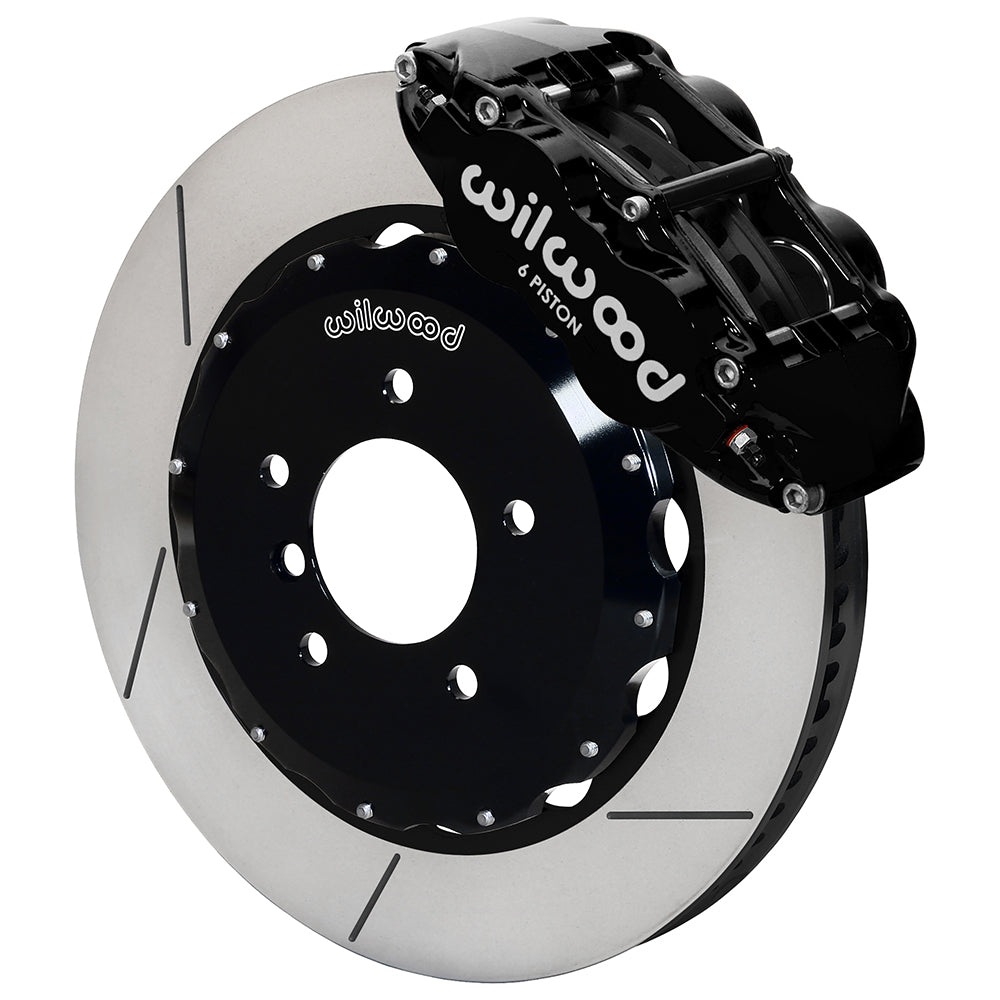

Black Superlite calipers and GT slotted rotors make this a 14-inch front upgrade for the listed BMW M3 and Z3 M Roadster applications. The six-piston package uses aluminum hats on the existing hubs and includes BP-10 pads. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among the disc brake systems and components Wilwood Engineering designs and manufactures. The Camarillo, California company was founded by Bill Wood in 1977 and supports motorsport, street-performance and specialized applications. Component selection must account for the requirements of the complete brake system.

Technical Details

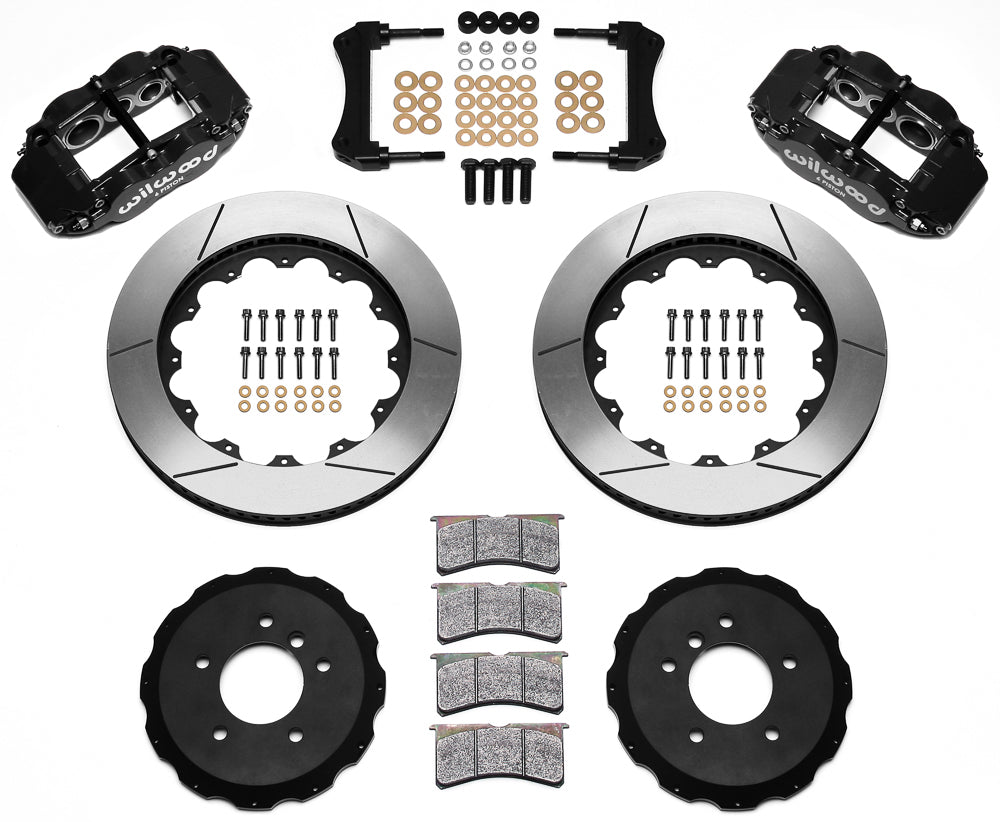

Kit contents and separate parts

• Manufacturer part number: 140-9300
• Supply: one kit with brake components for both sides of the front axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Hydraulic hoses: not included
• Separate hose kit application reference: 220-8799; verify the vehicle connections and routing

Rotors and mounting dimensions

• Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
• Friction faces: GT Slotted
• Rotor finish: Black Electro Coat
• Internal vanes: 72 curved
• Hats: aluminum; Black E-Coat; 0.560-inch hat offset
• Rotor/hat wheel-stud clearance patterns: 5 x 4.75 in; 5 x 120.65 mm
• Hat wheel-stud clearance holes: 0.520 in, corresponding to the listed hat patterns

Calipers and friction components

• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
• Caliper finish: Black Powder Coat
• Body construction: Forged aluminum
• Piston material: stainless
• Caliper mounting: radial
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

Fitment & Compatibility

Applicable models are the 1995–1999 BMW M3 and the 1998–2001 Z3 M Roadster with the listed 3.2L engine, as detailed in the table below. Do not extend this fitment to other E36 or Z3 brake configurations. The kit keeps the original front hubs and uses aluminum rotor hats; their listed clearance pattern is not a wheel-pattern conversion. DS-539 includes the installation and wheel envelope. Hydraulic hoses are separate, with 220-8799 specified for this application. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

• Installation instructions

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For help matching the axle, spindle and brake components, contact PMB Performance. Our team brings over 20 years of experience in brakes and vehicle restoration.

Vehicle Applications

Application Notes

1. 14" Rotor
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-8799
