Product details

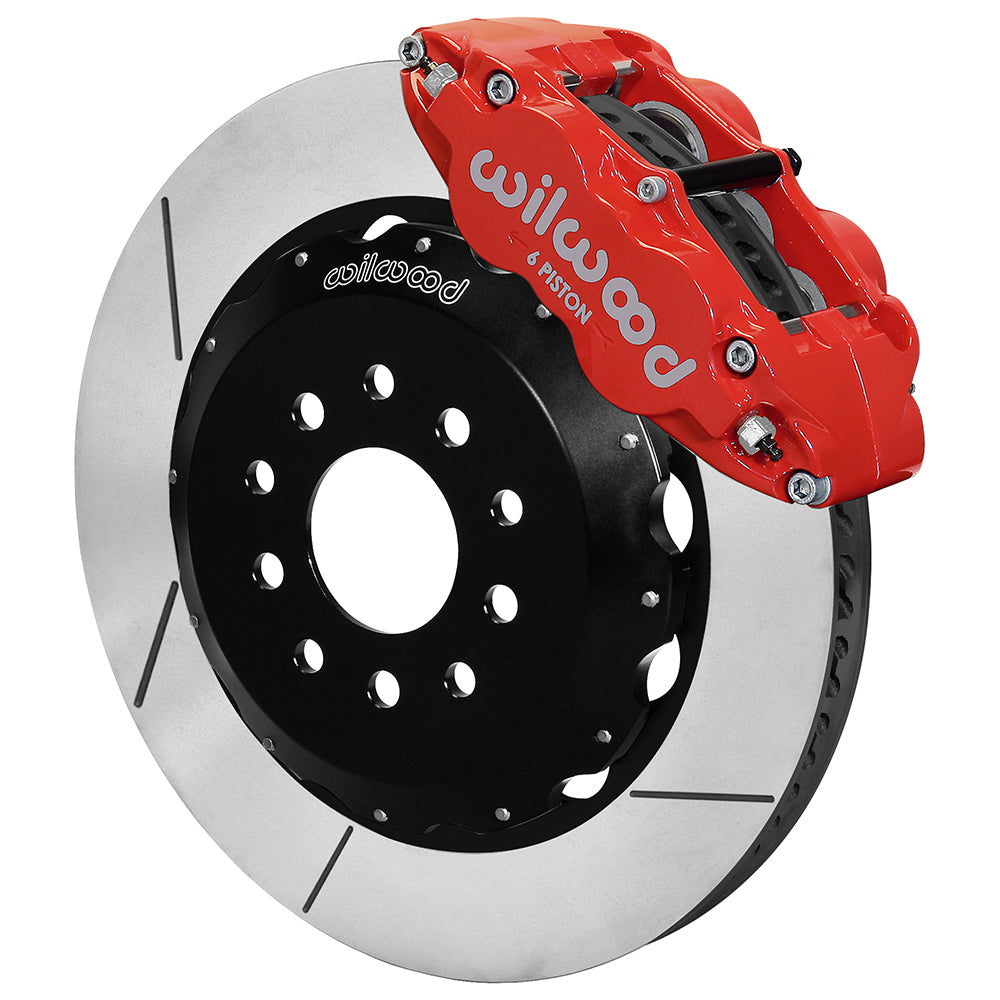

The red-caliper GT version of this C4 kit includes BP-20 pads and 72-curved-vane rotors. Its front FNSL6R calipers use the listed 1.38/1.12/1.12-inch bore arrangement, with the installation configured for the supported 1988–1996 Corvette hubs. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Each component must be chosen for its role within the complete braking system.
Technical Details
Calipers and friction components
- Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-20
- Listed piston bore sizes: 1.38 / 1.12 / 1.12 in
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
- Friction faces: GT Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: aluminum; Black E-Coat; 0.880-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Hat wheel-stud clearance holes: 0.560 / 0.520 in, corresponding to the listed hat patterns
Kit contents and separate parts
- Manufacturer part number: 140-9298-R

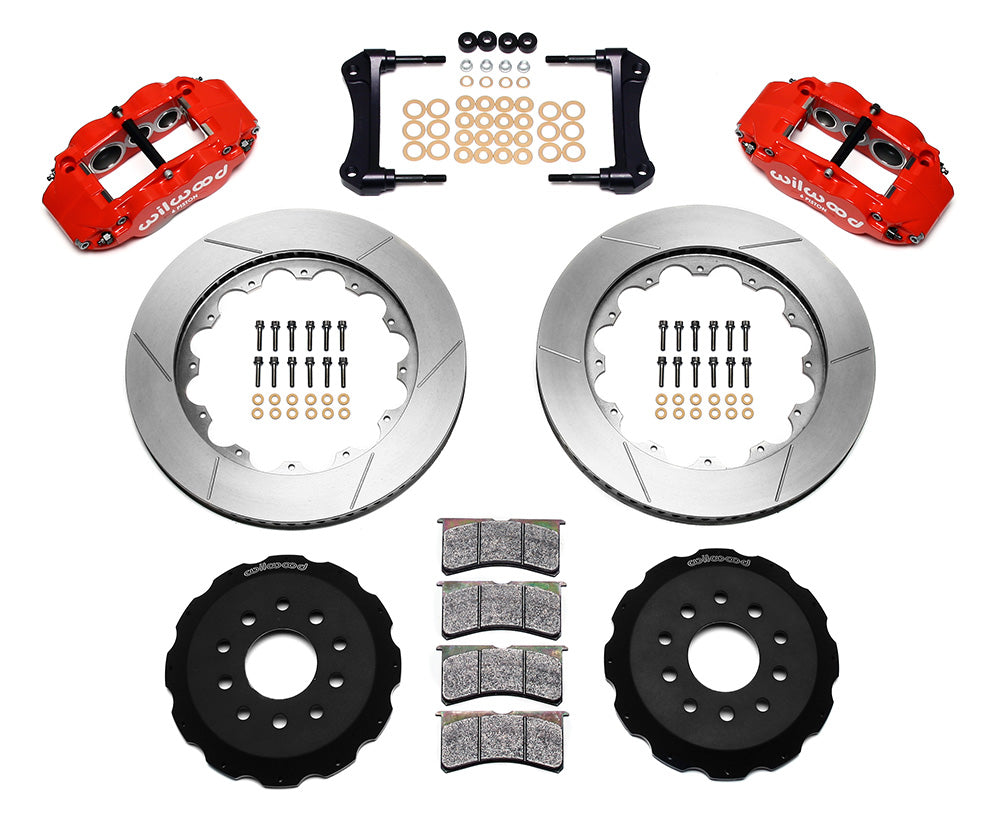

- Supply: one kit with brake components for both sides of the front axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Separate hose kit application reference: 220-8338; verify the vehicle connections and routing
Fitment & Compatibility
Check the 1988–1996 Corvette entries in the table below, covering the listed standard 12-inch and heavy-duty 13-inch original front brakes. The new package uses 14.00 x 1.10-inch rotors and retains the vehicle hubs; the holes in the hats do not convert their wheel pattern. Select the optional 220-8338 front flexlines and confirm routing. Use DS-538 for bracket positioning, rotor alignment and actual wheel clearance. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance has supported brake and restoration projects for more than 20 years. Share the vehicle and installed hardware with us for help selecting a compatible package.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1988-1996 | Chevrolet | Corvette | C-4 w/ HD Brake Option 13" Front Rotor | Disc | Disc | Front Kit | 1, 2, 3 |
| 1988-1996 | Chevrolet | Corvette | C-4 w/ HD Brake Option 13" Front Rotor | Disc | Disc | Front Kit | 1, 2, 3 |
| 1988-1996 | Chevrolet | Corvette | C-4 w/ STD Brake Option 12" Front Rotor | Disc | Disc | Front Kit | 1, 2, 3 |
| 1988-1996 | Chevrolet | Corvette | C-4 w/ STD Brake Option 12" Front Rotor | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- 14" Rotor
- Line kit included (manufacturer): None
- Front line-kit reference: 220-8338
