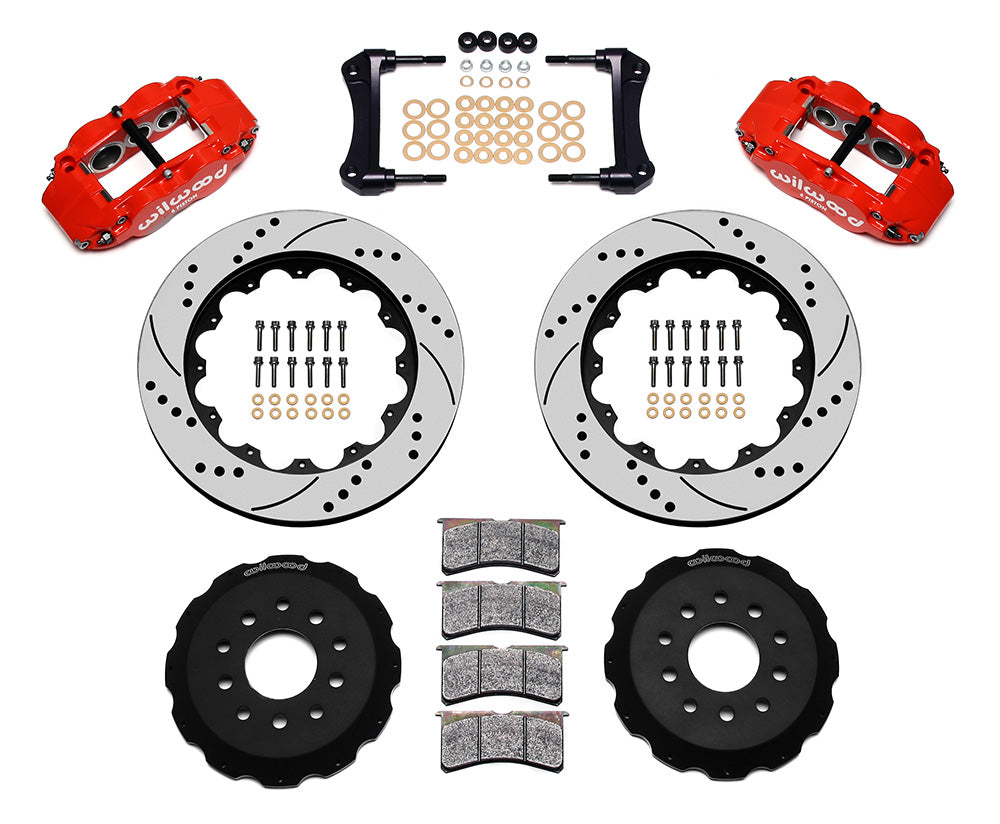

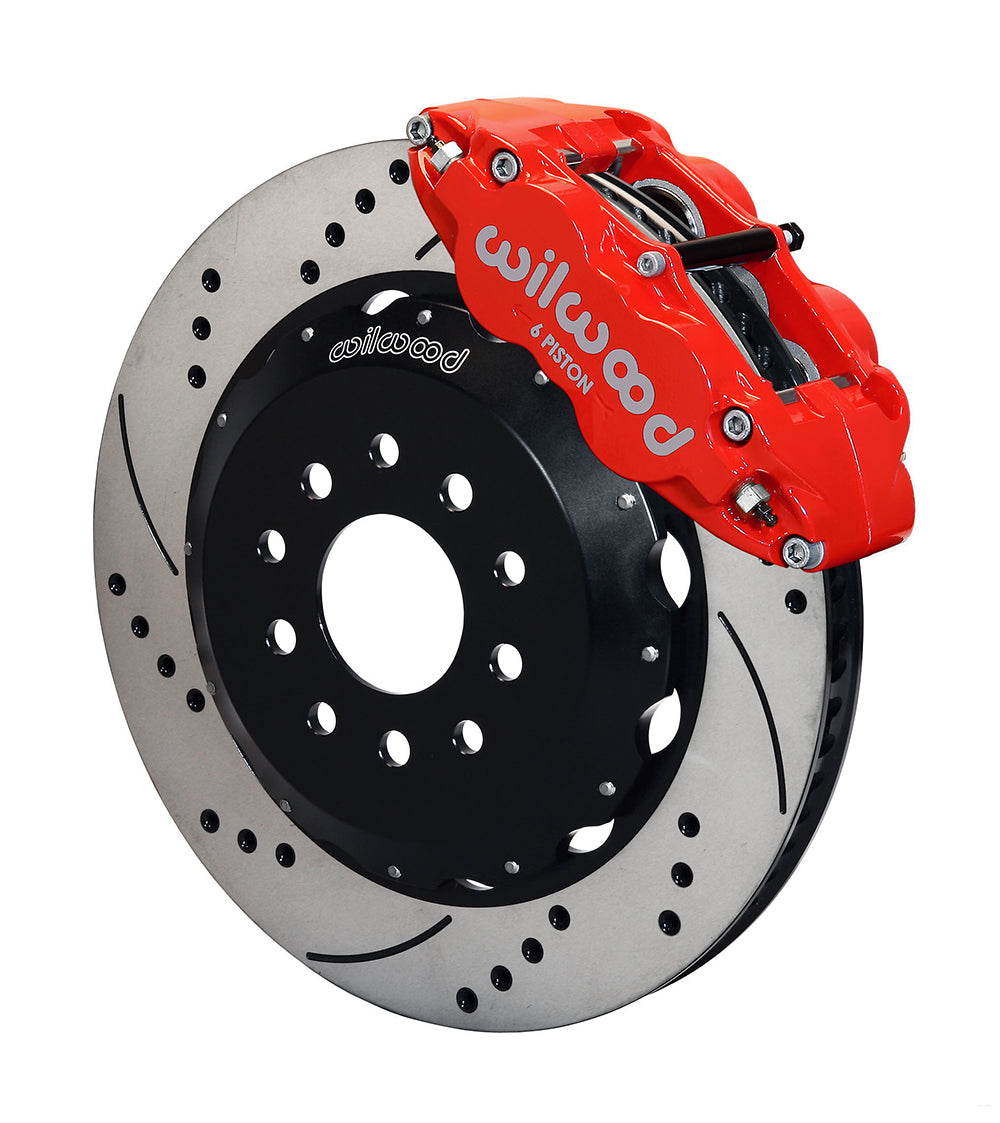

Red FNSL6R calipers surround 14-inch drilled and slotted rotors in this Corvette front kit. BP-10 pads accompany the service-brake hardware, and the two-piece rotor assembly uses aluminum hats on the retained front hubs. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. Select individual components to meet the requirements of the complete brake system.
Technical Details
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: aluminum; Black E-Coat; 0.880-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Hat wheel-stud clearance holes: 0.560 / 0.520 in, corresponding to the listed hat patterns
Calipers and friction components
- Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.38 / 1.12 / 1.12 in
Kit contents and separate parts
- Manufacturer part number: 140-9298-DR
- Supply: one kit with brake components for both sides of the front axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Separate hose kit application reference: 220-8338; verify the vehicle connections and routing
Fitment & Compatibility
Check the 1988–1996 Corvette entries in the table below, covering the listed standard 12-inch and heavy-duty 13-inch original front brakes. The new package uses 14.00 x 1.10-inch rotors and retains the vehicle hubs; the holes in the hats do not convert their wheel pattern. Select the optional 220-8338 front flexlines and confirm routing. Use DS-538 for bracket positioning, rotor alignment and actual wheel clearance. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details for help matching this kit.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1988-1996 | Chevrolet | Corvette | C-4 w/ HD Brake Option 13" Front Rotor | Disc | Disc | Front Kit | 1, 2, 3 |
| 1988-1996 | Chevrolet | Corvette | C-4 w/ STD Brake Option 12" Front Rotor | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- 14" Rotor
- Line kit included (manufacturer): None
- Front line-kit reference: 220-8338
