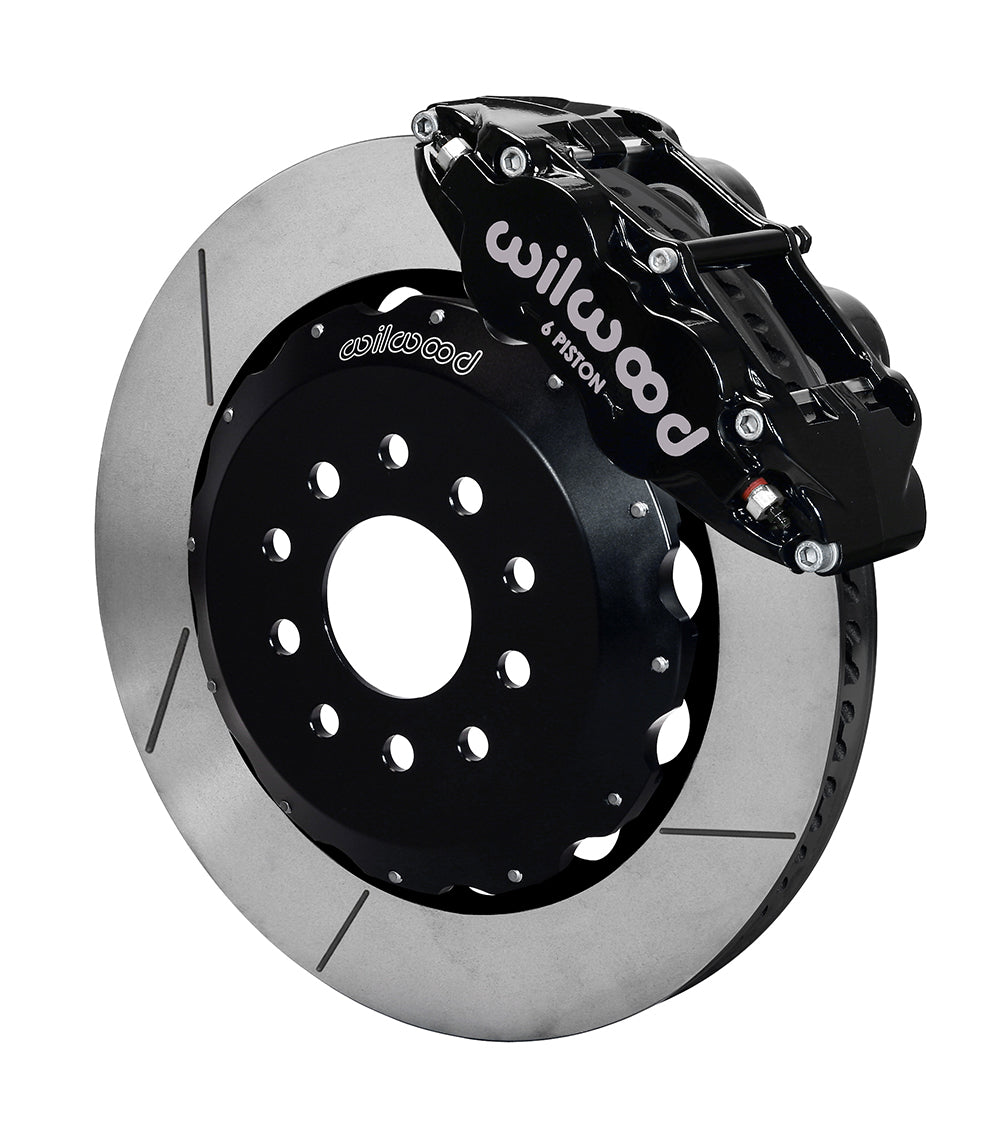

Wilwood Front Brake Kit: 14.00-inch GT Slotted Rotors for 1988–1996 Chevrolet Corvette C4, Black FNSL6R

This C4 Corvette front package pairs black FNSL6R calipers with GT slotted 14-inch rotors and BP-20 pads. Its 1.10-inch rotor thickness and caliper piston arrangement are specific to this package, which retains the compatible Corvette hubs. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood, its range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines. The complete braking arrangement determines which individual components are appropriate.

Technical Details

Calipers and friction components

• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
• Caliper finish: Black Powder Coat
• Body construction: Forged aluminum
• Piston material: stainless
• Caliper mounting: radial
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-20
• Listed piston bore sizes: 1.38 / 1.12 / 1.12 in

Kit contents and separate parts

• Manufacturer part number: 140-9298

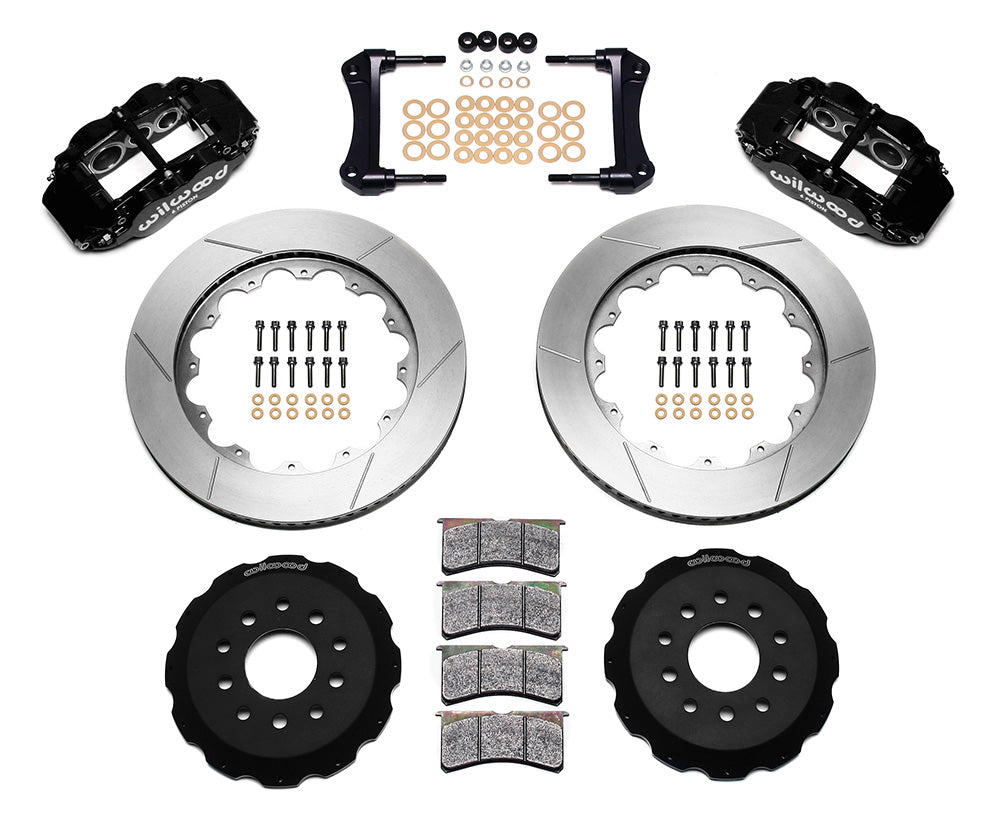

• Supply: one kit with brake components for both sides of the front axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Hydraulic hoses: not included
• Separate hose kit application reference: 220-8338; verify the vehicle connections and routing

Rotors and mounting dimensions

• Rotors: 14.00 in; 355.6 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
• Friction faces: GT Slotted
• Rotor finish: Black Electro Coat
• Internal vanes: 72 curved
• Hats: aluminum; Black E-Coat; 0.880-inch hat offset
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Hat wheel-stud clearance holes: 0.560 / 0.520 in, corresponding to the listed hat patterns

Fitment & Compatibility

Check the 1988–1996 Corvette entries in the table below, covering the listed standard 12-inch and heavy-duty 13-inch original front brakes. The new package uses 14.00 x 1.10-inch rotors and retains the vehicle hubs; the holes in the hats do not convert their wheel pattern. Select the optional 220-8338 front flexlines and confirm routing. Use DS-538 for bracket positioning, rotor alignment and actual wheel clearance. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

• Installation instructions

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Our team at PMB Performance draws on 20+ years of brake and restoration work. We can help check the mounting requirements and component choices for your build.

Vehicle Applications

Application Notes

1. 14" Rotor
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-8338
