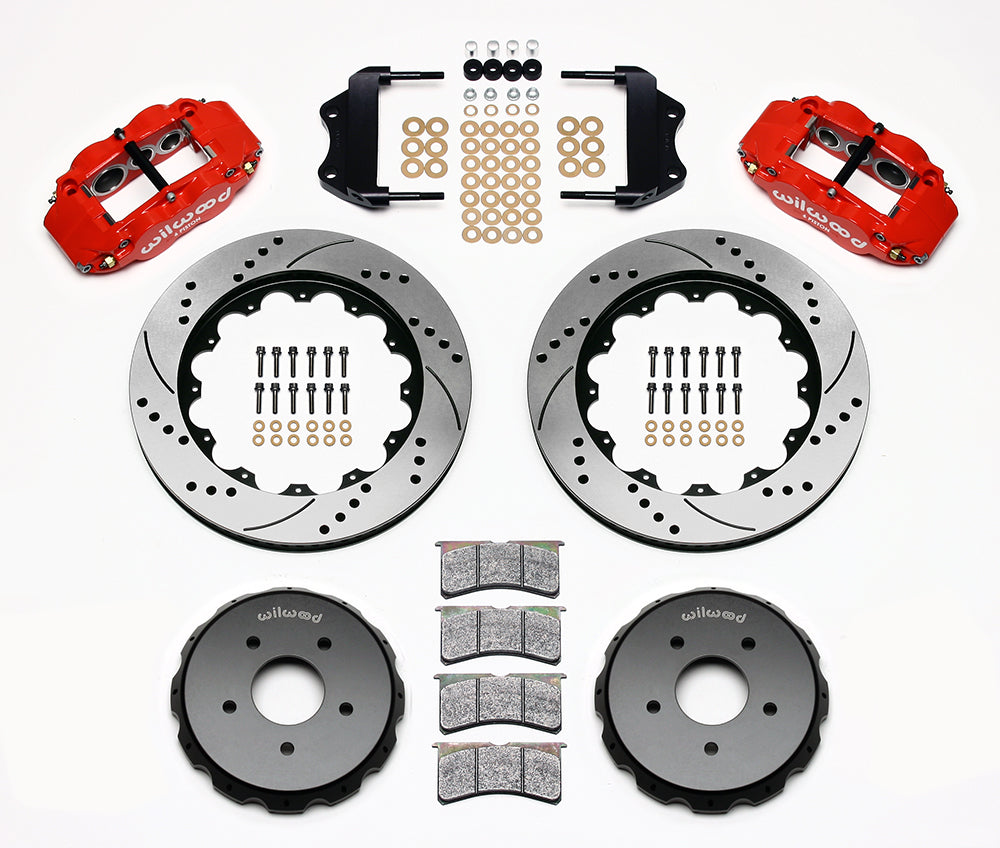

Wilwood red FNSL6R front brake kit with 14.00-inch drilled and slotted rotors, calipers and mounting components laid out

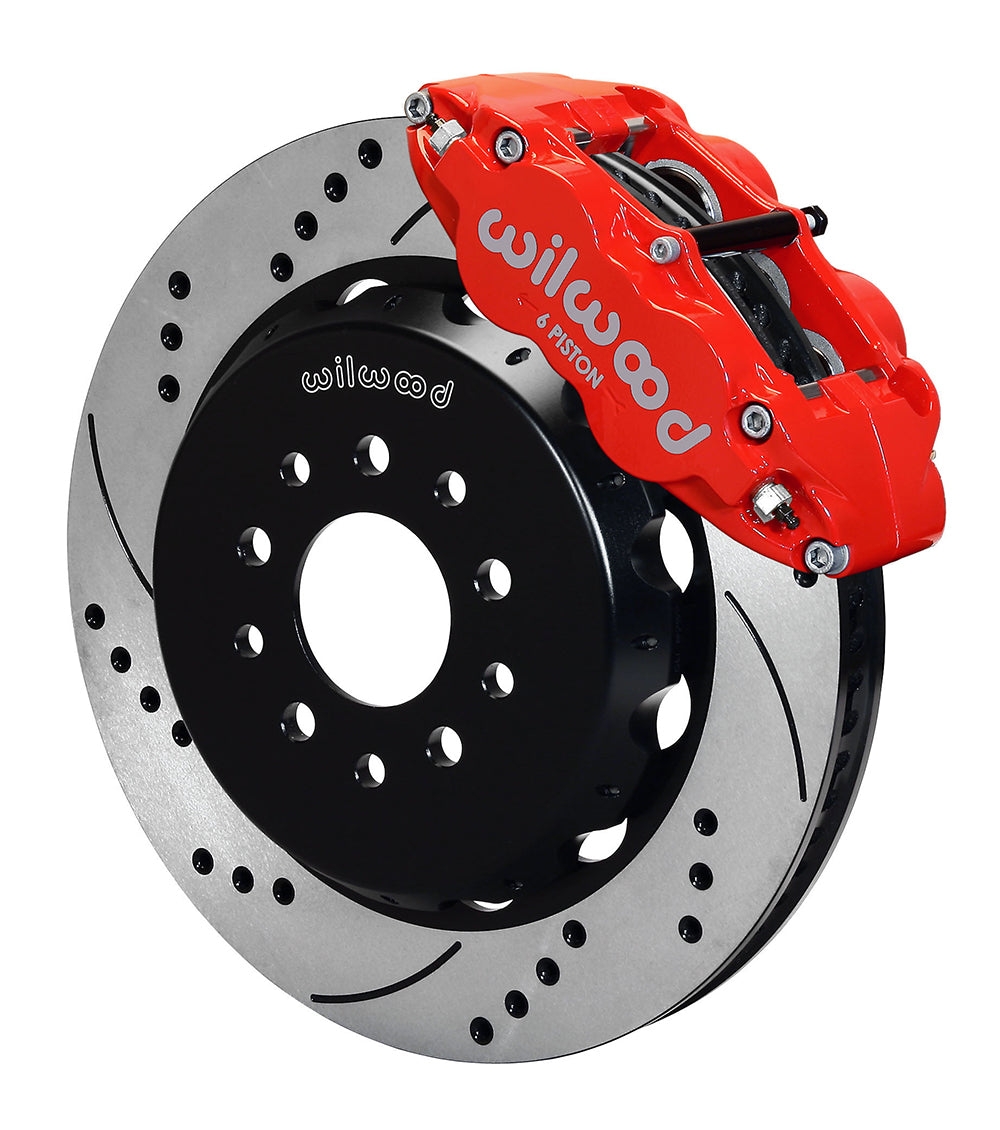

Assembled view of a Wilwood red FNSL6R front caliper with a 14.00-inch drilled and slotted rotor
Wilwood red FNSL6R front brake kit with 14.00-inch drilled and slotted rotors, calipers and mounting components laid out
Assembled view of a Wilwood red FNSL6R front caliper with a 14.00-inch drilled and slotted rotor

Wilwood Front System for 2004–2006 Pontiac GTO: 14.00-inch Drilled/Slotted Rotors with Red FNSL6R

SKU: 140-9296-DR

$2,506.04 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red powder-coated calipers give this 2004–2006 GTO front kit its finish distinction. The six-piston assembly works with 14 x 1.25-inch SRP rotors, aluminum hats and the included hydraulic hose kit. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, with calipers, brake rotors, master cylinders, valves, fittings and brake lines in its range. Select the individual parts around the requirements of the entire braking system.

Technical Details

Kit contents and separate parts

  • Manufacturer part number: 140-9296-DR
  • Supply: one kit with brake components for both sides of the front axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Hydraulic hoses: included; 220-14177 hose-and-fitting kit
  • Included hydraulic hose kit: 220-14177, with the fittings specified in DS-537.

Calipers and friction components

  • Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
  • Caliper finish: Red Powder Coat
  • Body construction: Forged aluminum
  • Piston material: stainless
  • Caliper mounting: radial
  • Hydraulic inlet: 1/8-27 NPT
  • Included pad compound: BP-10
  • Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

Rotors and mounting dimensions

  • Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
  • Friction faces: SRP Drilled & Slotted
  • Rotor finish: Black Electro Coat
  • Internal vanes: 72 curved
  • Hats: aluminum; Black E-Coat; 1.000-inch hat offset
  • Rotor/hat wheel-stud clearance patterns: 5 x 4.72 in; 5 x 119.89 mm
  • Hat wheel-stud clearance holes: 0.500 in, corresponding to the listed hat patterns

Fitment & Compatibility

For the 2004–2006 Pontiac GTO applications shown in the table below, using the original front spindles and hubs. The aluminum hats carry a 1.000-inch offset and clearance for the factory five-lug pattern. DS-537 requires minor hard-line repositioning to align the new fittings. This kit includes the 220-14177 hose package; it should not be ordered as though flexlines were absent. Verify the wheel-clearance drawing and evaluate front-to-rear balance after installation. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance offers parts-selection support backed by more than 20 years in brake systems and restoration. Let us help review the details of your vehicle and installation.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
2004-2006 Pontiac GTO All Disc Disc Front Kit 1, 2, 3

Application Notes

  1. 14" Rotor
  2. Line kit included (manufacturer): 220-14177 (20.00 in)
  3. Front line-kit reference: 220-14177
