Wilwood Front Black FNSL6R System - GT Slotted 14.00-inch Rotors for 2004–2006 Pontiac GTO

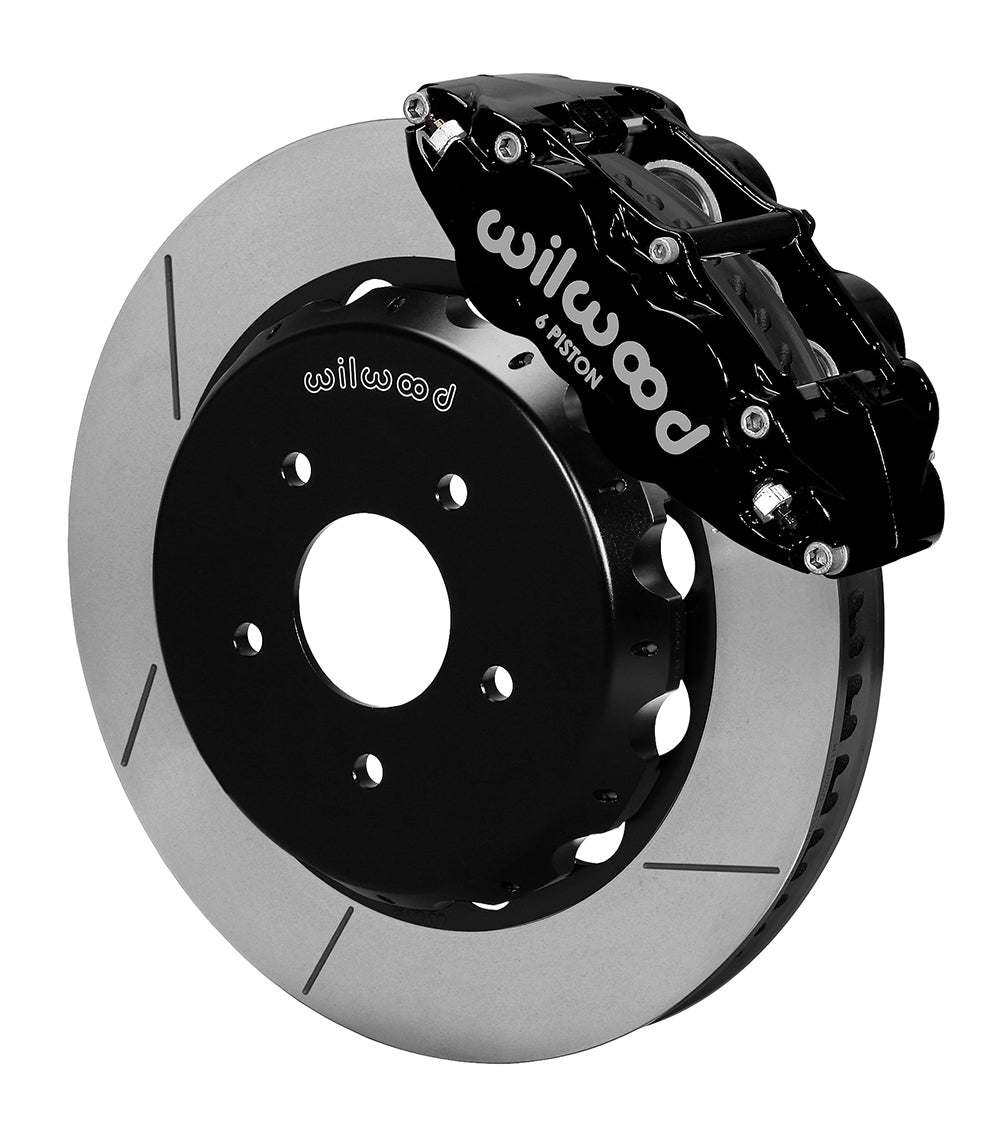

Black FNSL6R calipers and 14-inch GT slotted rotors build this front upgrade around the Pontiac GTO original hubs. Unlike many separate-hose kits, this package includes the specified 220-14177 flexlines and fittings. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The requirements of the complete brake system govern the choice of individual components.

Technical Details

Calipers and friction components

• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
• Caliper finish: Black Powder Coat
• Body construction: Forged aluminum
• Piston material: stainless
• Caliper mounting: radial
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

Rotors and mounting dimensions

• Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
• Friction faces: GT Slotted
• Rotor finish: Black Electro Coat
• Internal vanes: 72 curved
• Hats: aluminum; Black E-Coat; 1.000-inch hat offset
• Rotor/hat wheel-stud clearance patterns: 5 x 4.72 in; 5 x 119.89 mm
• Hat wheel-stud clearance holes: 0.500 in, corresponding to the listed hat patterns

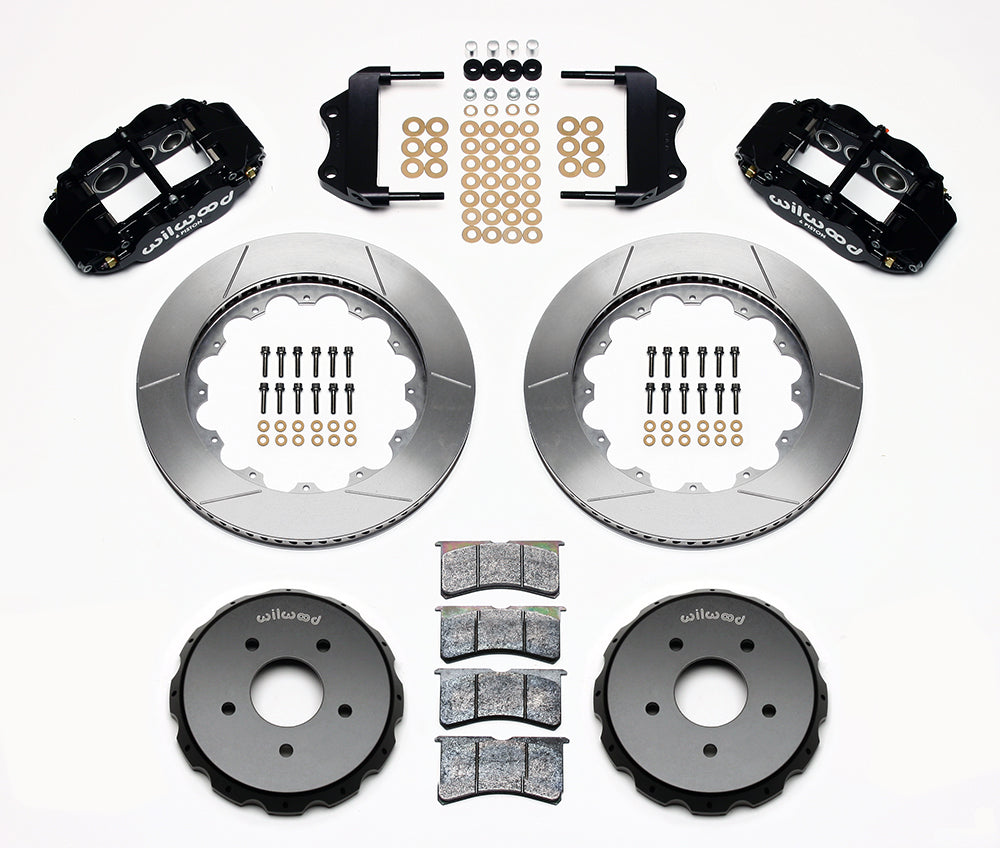

Kit contents and separate parts

• Manufacturer part number: 140-9296
• Supply: one kit with brake components for both sides of the front axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Hydraulic hoses: included; 220-14177 hose-and-fitting kit
• Included hydraulic hose kit: 220-14177, with the fittings specified in DS-537.

Fitment & Compatibility

For the 2004–2006 Pontiac GTO applications shown in the table below, using the original front spindles and hubs. The aluminum hats carry a 1.000-inch offset and clearance for the factory five-lug pattern. DS-537 requires minor hard-line repositioning to align the new fittings. This kit includes the 220-14177 hose package; it should not be ordered as though flexlines were absent. Verify the wheel-clearance drawing and evaluate front-to-rear balance after installation. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

• Installation instructions

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance has supported brake and restoration projects for more than 20 years. Share the vehicle and installed hardware with us for help selecting a compatible package.

Vehicle Applications

Application Notes

1. 14" Rotor
2. Line kit included (manufacturer): 220-14177 (20.00 in)
3. Front line-kit reference: 220-14177
