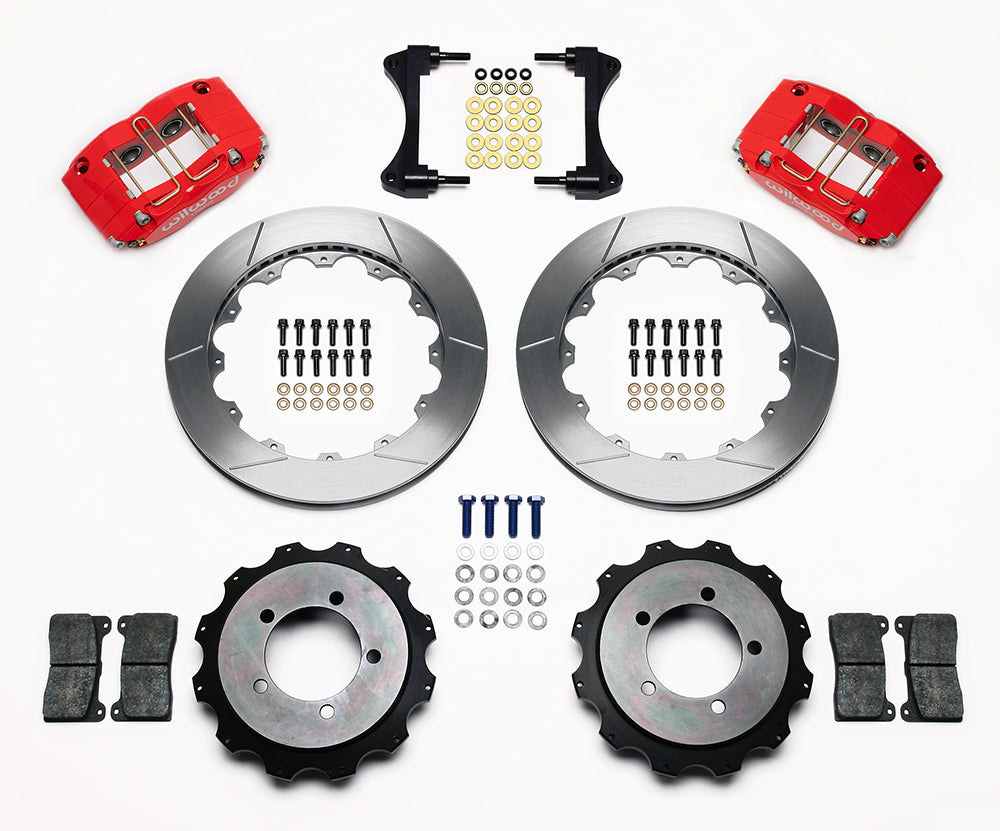

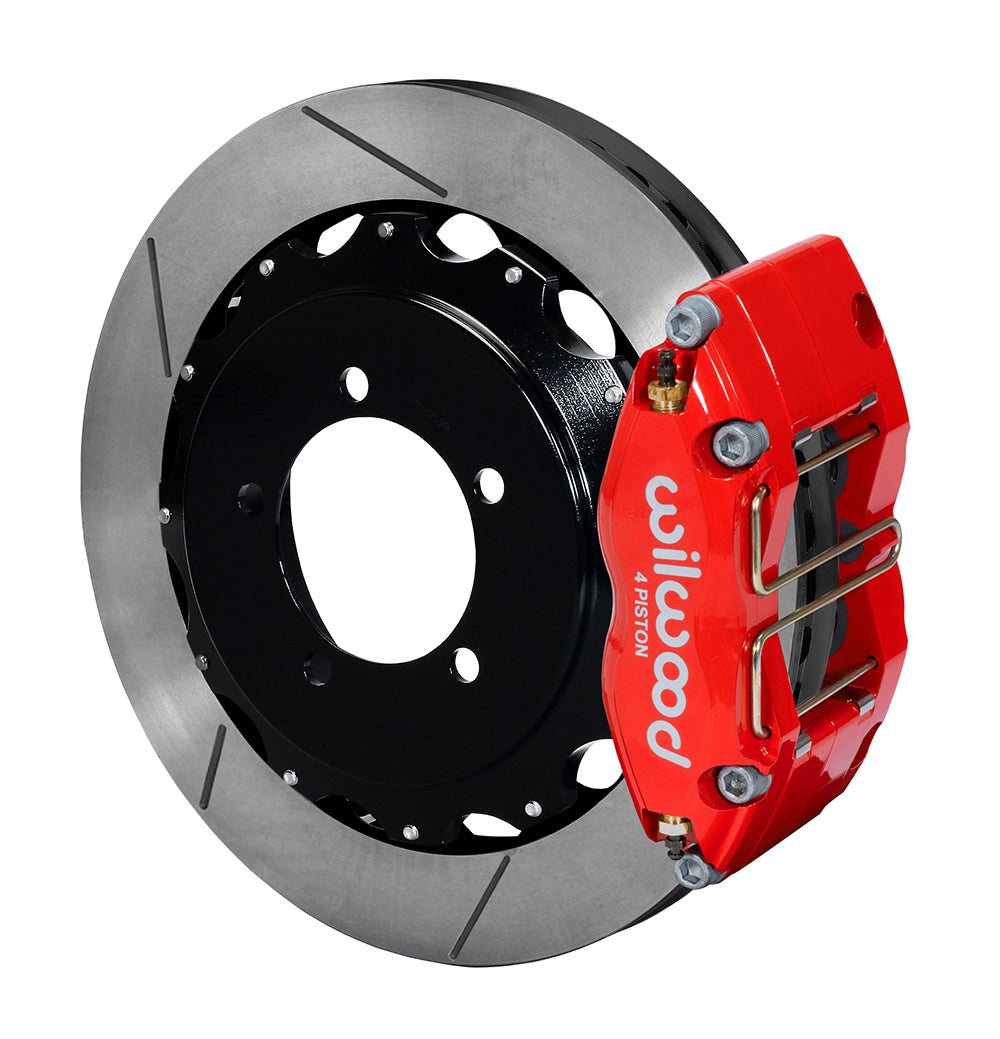

Red Dynapro calipers and GT slotted rotor faces distinguish this Evolution rear package. The 1.00-inch stainless piston bores and supplied BP-10 pads are paired with 12.88 x 1.10-inch rotors and OE-compatible parking hats. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. Choose each component to match the complete system’s braking requirements.
Technical Details
Rotors and mounting dimensions
- Rotors: 12.88 in; 327.15 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
- Friction faces: GT Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 48 curved
- Hats: iron; Black E-Coat; 0.810-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm
- Hat wheel-stud clearance holes: 0.510 in, corresponding to the listed hat patterns
Calipers and friction components
- Calipers: Dynapro Dust Seal Radial Mount; 4 pistons per caliper
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.00 / 1.00 in
Kit contents and separate parts
- Manufacturer part number: 140-9286-R
- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Retains the OE parking brake; rear service calipers have dust seals.
- Separate hose kit application reference: 220-9288; verify the vehicle connections and routing
Fitment & Compatibility
The table below identifies the applicable Evolution VIII/IX models for 2003–2006, including MR and RS versions. The iron rotor hats retain the original internal parking-brake mechanism; this kit does not supply a replacement shoe-and-cable assembly. Its specified rotor diameter is 12.88 inches. Check the original hubs, studs and parking hardware and compare the DS-558 clearance diagram to the wheels. Rear hydraulic hoses are separate; 220-9288 is the Wilwood application reference. Nominal minimum wheel diameter: 17 in; 431.8 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details for help matching this kit.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2003-2005 | Mitsubishi | Lancer | Evolution | Evolution (EVO VIII) | Disc | Disc | Rear Kit | 1, 2 |
| 2005 | Mitsubishi | Lancer | Evolution MR | Evolution MR (EVO VIII) | Disc | Disc | Rear Kit | 1, 2 |
| 2005 | Mitsubishi | Lancer | Evolution RS | Evolution RS (EVO VIII) | Disc | Disc | Rear Kit | 1, 2 |
| 2006 | Mitsubishi | Lancer | Evolution | Evolution (EVO IX) | Disc | Disc | Rear Kit | 1, 2 |
| 2006 | Mitsubishi | Lancer | Evolution MR | Evolution MR (EVO IX) | Disc | Disc | Rear Kit | 1, 2 |
| 2006 | Mitsubishi | Lancer | Evolution RS | Evolution RS (EVO IX) | Disc | Disc | Rear Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): None
- Rear line-kit reference: 220-9288
