Product details

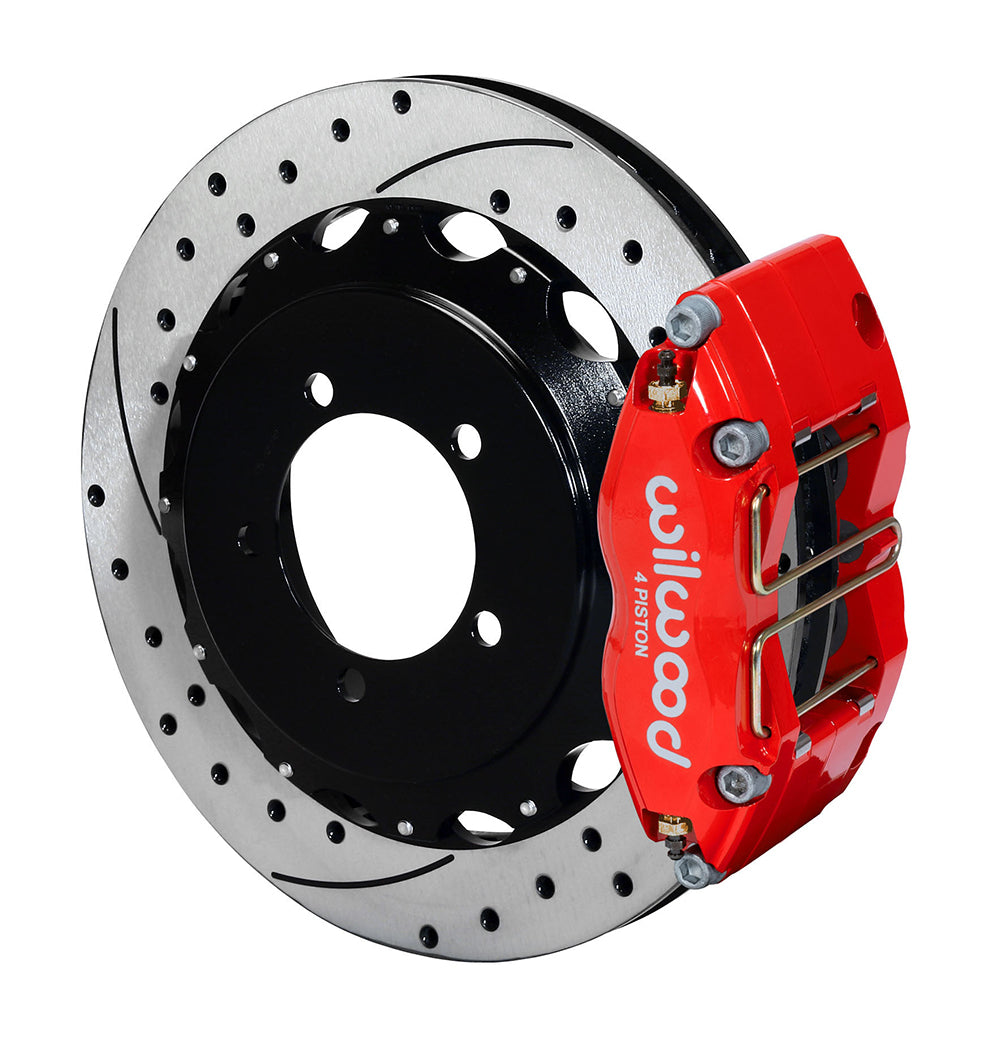

This red-caliper Evolution rear kit uses drilled and slotted Spec-37 rotors with an actual diameter of 12.88 inches. Dust-sealed four-piston calipers handle service braking while the compatible OE internal parking brake remains in place. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among the disc brake systems and components Wilwood Engineering designs and manufactures. The Camarillo, California company was founded by Bill Wood in 1977 and supports motorsport, street-performance and specialized applications. Component selection must account for the requirements of the complete brake system.
Technical Details
Kit contents and separate parts

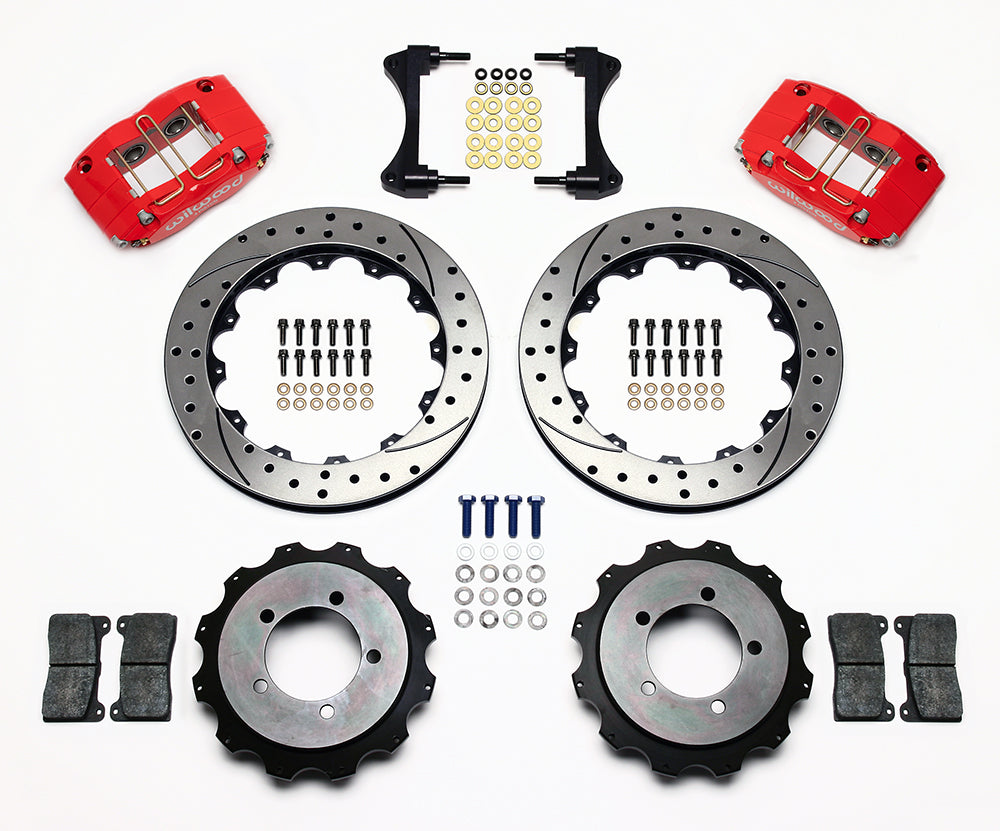

- Manufacturer part number: 140-9286-DR
- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Retains the OE parking brake; rear service calipers have dust seals.
- Separate hose kit application reference: 220-9288; verify the vehicle connections and routing
Rotors and mounting dimensions
- Rotors: 12.88 in; 327.15 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 48 curved
- Hats: iron; Black E-Coat; 0.810-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm
- Hat wheel-stud clearance holes: 0.510 in, corresponding to the listed hat patterns
Calipers and friction components
- Calipers: Dynapro Dust Seal Radial Mount; 4 pistons per caliper
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.00 / 1.00 in
Fitment & Compatibility
The table below identifies the applicable Evolution VIII/IX models for 2003–2006, including MR and RS versions. The iron rotor hats retain the original internal parking-brake mechanism; this kit does not supply a replacement shoe-and-cable assembly. Its specified rotor diameter is 12.88 inches. Check the original hubs, studs and parking hardware and compare the DS-558 clearance diagram to the wheels. Rear hydraulic hoses are separate; 220-9288 is the Wilwood application reference. Nominal minimum wheel diameter: 17 in; 431.8 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
For help matching the axle, spindle and brake components, contact PMB Performance. Our team brings over 20 years of experience in brakes and vehicle restoration.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2003-2005 | Mitsubishi | Lancer | Evolution | Evolution (EVO VIII) | Disc | Disc | Rear Kit | 1, 2 |
| 2005 | Mitsubishi | Lancer | Evolution MR | Evolution MR (EVO VIII) | Disc | Disc | Rear Kit | 1, 2 |
| 2005 | Mitsubishi | Lancer | Evolution RS | Evolution RS (EVO VIII) | Disc | Disc | Rear Kit | 1, 2 |
| 2006 | Mitsubishi | Lancer | Evolution | Evolution (EVO IX) | Disc | Disc | Rear Kit | 1, 2 |
| 2006 | Mitsubishi | Lancer | Evolution MR | Evolution MR (EVO IX) | Disc | Disc | Rear Kit | 1, 2 |
| 2006 | Mitsubishi | Lancer | Evolution RS | Evolution RS (EVO IX) | Disc | Disc | Rear Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): None
- Rear line-kit reference: 220-9288
