Product details

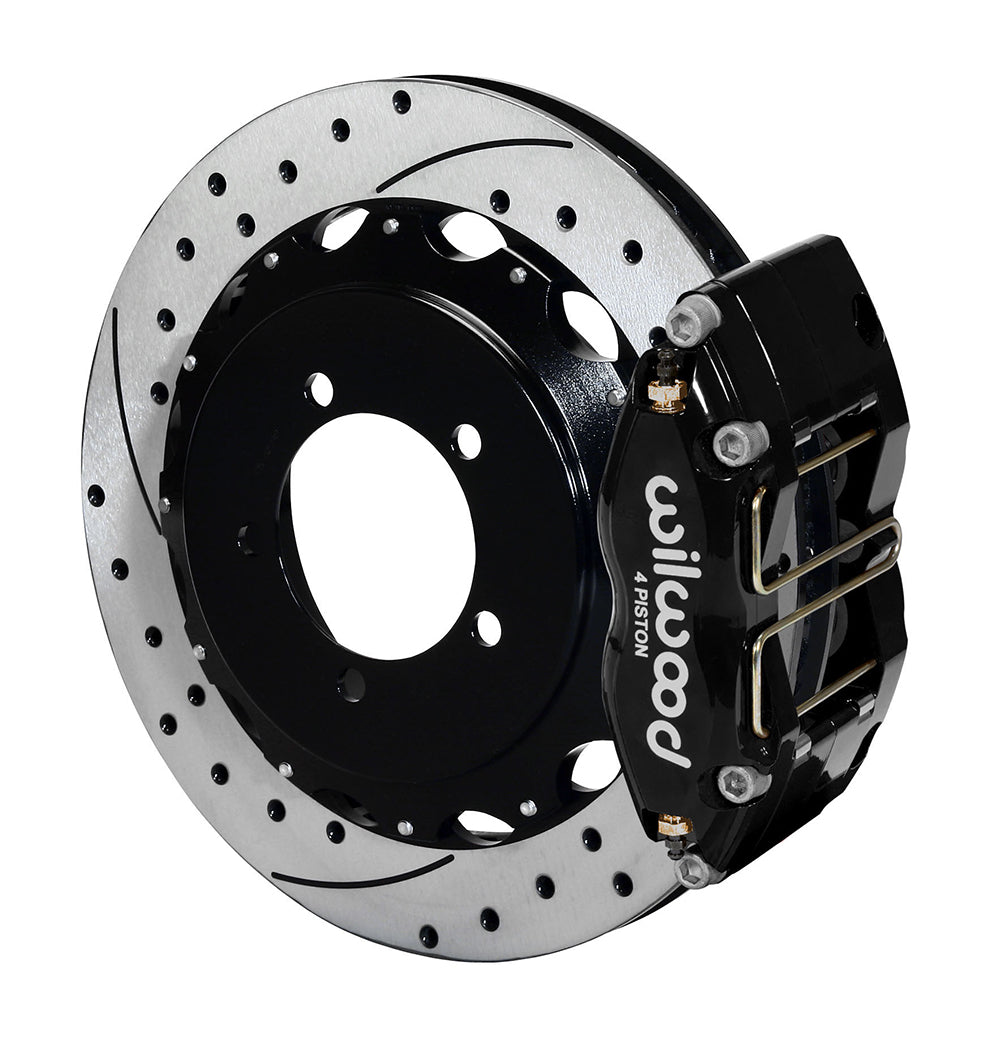

SRP drilled/slotted rotor rings and black DPR-DS calipers form this Mitsubishi rear upgrade. Its iron hats retain the Evolution parking system, so the kit replaces the service brakes without supplying new parking shoes or cables. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Each component must be chosen for its role within the complete braking system.
Technical Details
Calipers and friction components
- Calipers: Dynapro Dust Seal Radial Mount; 4 pistons per caliper
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.00 / 1.00 in
Rotors and mounting dimensions
- Rotors: 12.88 in; 327.15 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 48 curved
- Hats: iron; Black E-Coat; 0.810-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm
- Hat wheel-stud clearance holes: 0.510 in, corresponding to the listed hat patterns
Kit contents and separate parts
- Manufacturer part number: 140-9286-D

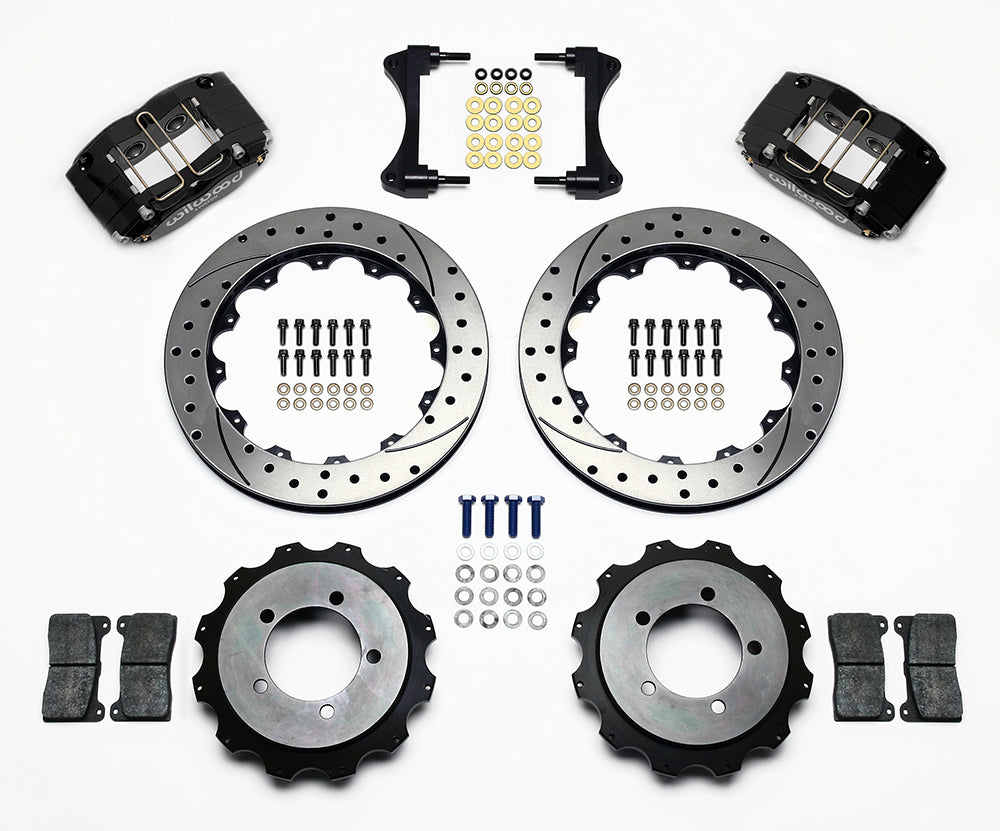

- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Retains the OE parking brake; rear service calipers have dust seals.
- Separate hose kit application reference: 220-9288; verify the vehicle connections and routing
Fitment & Compatibility
The table below identifies the applicable Evolution VIII/IX models for 2003–2006, including MR and RS versions. The iron rotor hats retain the original internal parking-brake mechanism; this kit does not supply a replacement shoe-and-cable assembly. Its specified rotor diameter is 12.88 inches. Check the original hubs, studs and parking hardware and compare the DS-558 clearance diagram to the wheels. Rear hydraulic hoses are separate; 220-9288 is the Wilwood application reference. Nominal minimum wheel diameter: 17 in; 431.8 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance has supported brake and restoration projects for more than 20 years. Share the vehicle and installed hardware with us for help selecting a compatible package.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2003-2005 | Mitsubishi | Lancer | Evolution | Evolution (EVO VIII) | Disc | Disc | Rear Kit | 1, 2 |
| 2005 | Mitsubishi | Lancer | Evolution MR | Evolution MR (EVO VIII) | Disc | Disc | Rear Kit | 1, 2 |
| 2005 | Mitsubishi | Lancer | Evolution RS | Evolution RS (EVO VIII) | Disc | Disc | Rear Kit | 1, 2 |
| 2006 | Mitsubishi | Lancer | Evolution | Evolution (EVO IX) | Disc | Disc | Rear Kit | 1, 2 |
| 2006 | Mitsubishi | Lancer | Evolution MR | Evolution MR (EVO IX) | Disc | Disc | Rear Kit | 1, 2 |
| 2006 | Mitsubishi | Lancer | Evolution RS | Evolution RS (EVO IX) | Disc | Disc | Rear Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): None
- Rear line-kit reference: 220-9288
