Product details

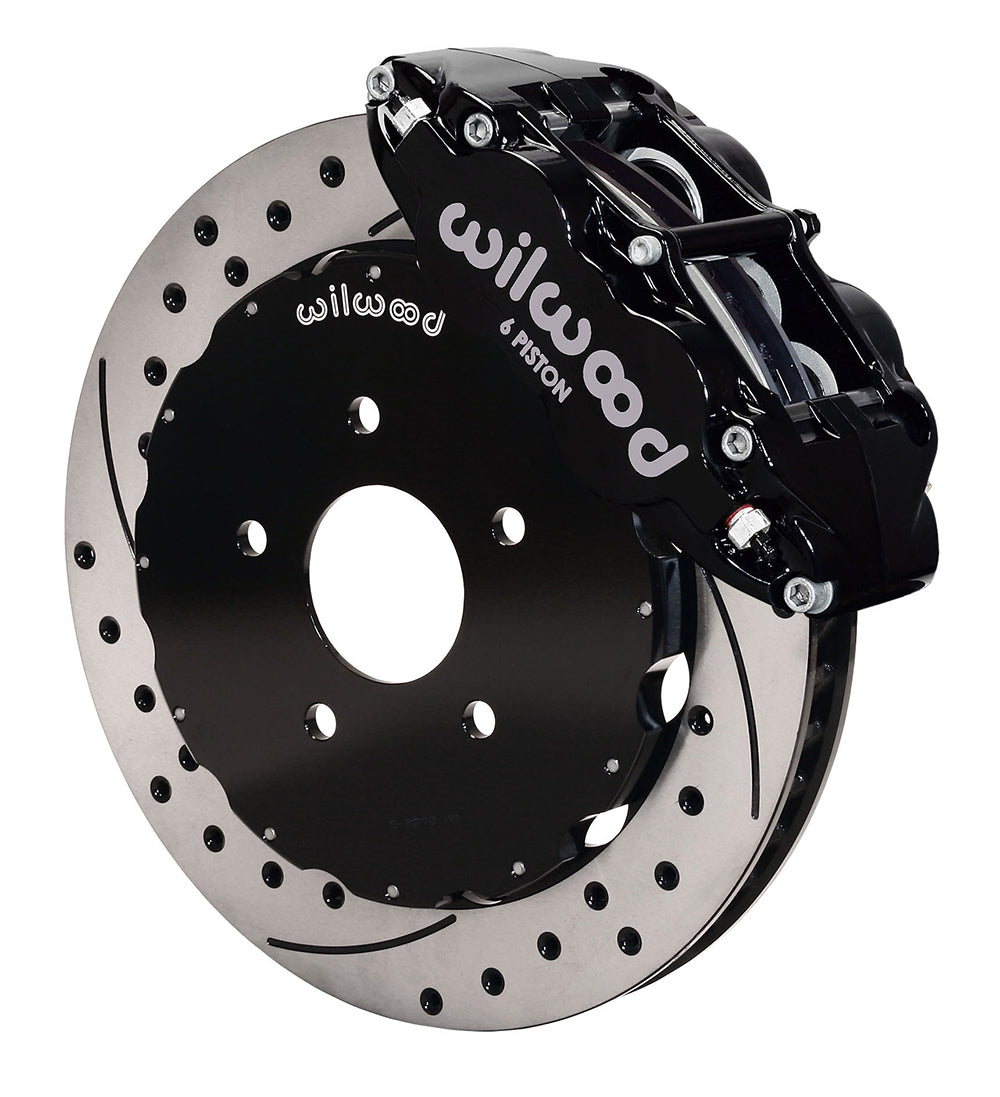

Black six-piston Superlite calipers and 14-inch SRP rotors give this Evo front package its configuration. The drilled/slotted rings attach to aluminum hats, with separate front hoses required to connect the new calipers. Wilwood Engineering designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977; its Camarillo, California operation serves motorsport, street-performance and specialized applications. Every component must suit the complete brake system in which it operates.
Technical Details
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: aluminum; Black E-Coat; 0.210-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm
- Hat wheel-stud clearance holes: 0.520 in, corresponding to the listed hat patterns

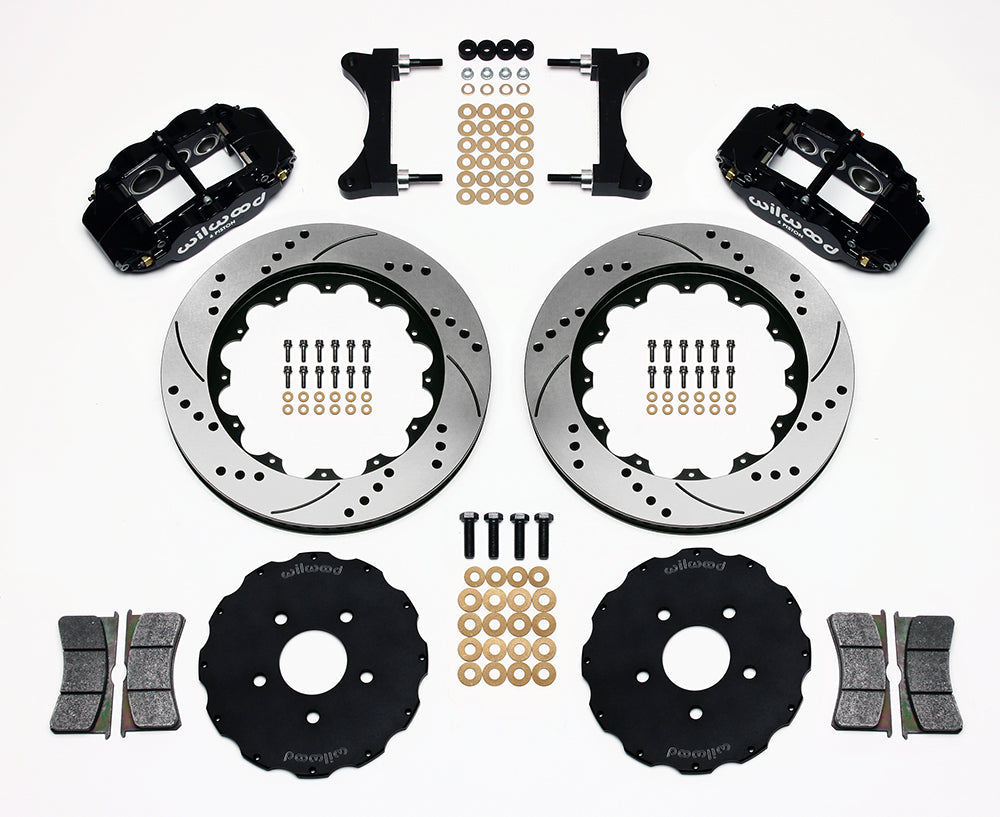

Kit contents and separate parts
- Manufacturer part number: 140-9285-D
- Supply: one kit with brake components for both sides of the front axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Separate hose kit application reference: 220-9287; verify the vehicle connections and routing
Calipers and friction components
- Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in
Fitment & Compatibility
For the 2003–2006 Evolution VIII/IX models and MR/RS applications identified in the table below. This 14-inch front package retains the original hub and uses an aluminum hat with a 0.210-inch offset. Verify the larger rotor envelope against the DS-554 wheel-clearance diagram before purchase. The stock master cylinder can be used subject to a complete brake-bias evaluation; it is not supplied. Hydraulic connections require the separately sold 220-9287 hose kit, with length and clearance checked on the vehicle. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
With over 20 years of brake-system and restoration experience, PMB Performance can help you review the application, wheel clearance and remaining parts for the installation.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2003-2005 | Mitsubishi | Lancer | Evolution | Evolution (EVO VIII) | Disc | Disc | Front Kit | 1, 2, 3 |
| 2005 | Mitsubishi | Lancer | Evolution MR | Evolution MR (EVO VIII) | Disc | Disc | Front Kit | 1, 2, 3 |
| 2005 | Mitsubishi | Lancer | Evolution RS | Evolution RS (EVO VIII) | Disc | Disc | Front Kit | 1, 2, 3 |
| 2006 | Mitsubishi | Lancer | Evolution | Evolution (EVO IX) | Disc | Disc | Front Kit | 1, 2, 3 |
| 2006 | Mitsubishi | Lancer | Evolution MR | Evolution MR (EVO IX) | Disc | Disc | Front Kit | 1, 2, 3 |
| 2006 | Mitsubishi | Lancer | Evolution RS | Evolution RS (EVO IX) | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- 14" Rotor
- Line kit included (manufacturer): None
- Front line-kit reference: 220-9287
