Product details

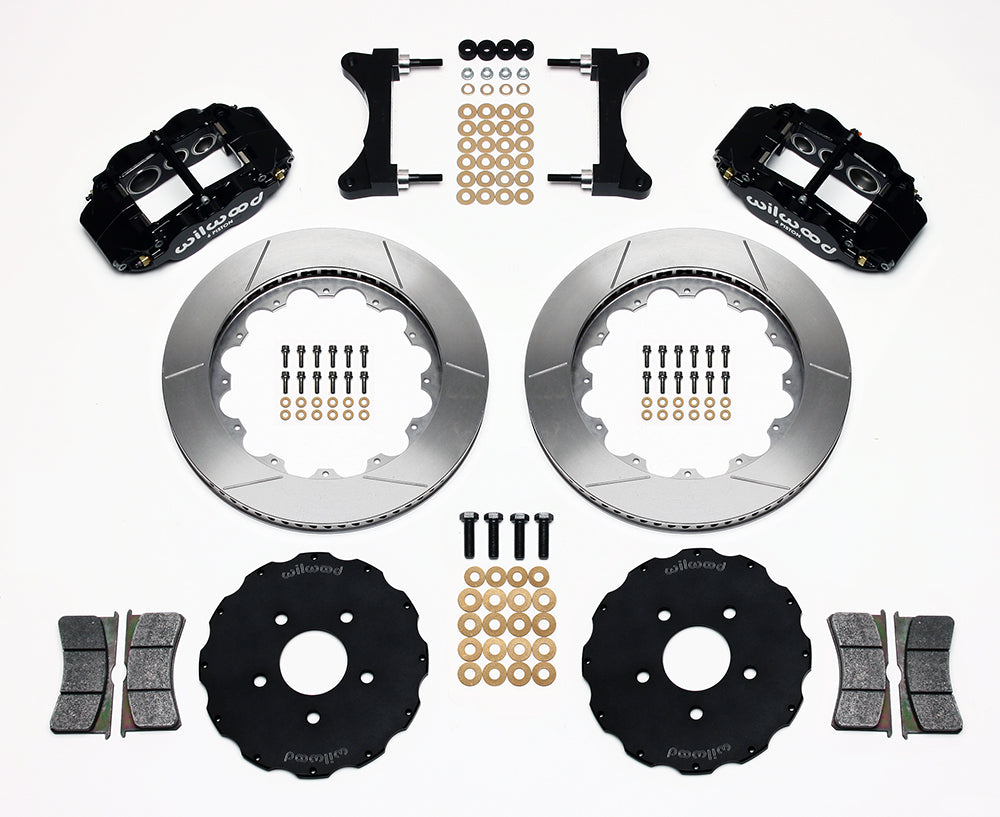

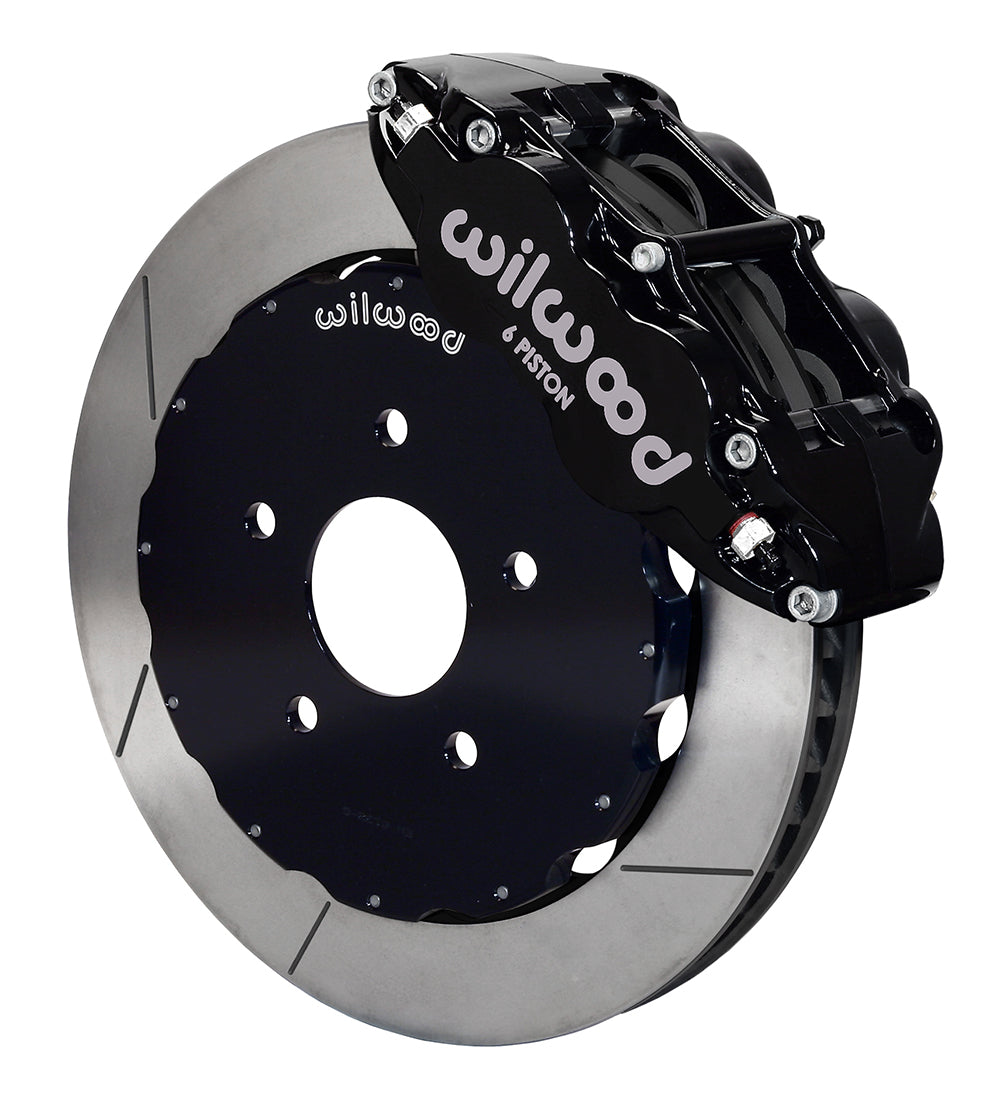

A 14.00-inch rotor diameter defines this black-caliper Evolution VIII/IX front kit. The GT slotted rings have 72 curved internal vanes and work with radial-mounted FNSL6R calipers on the compatible original hubs. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. Select the individual parts around the requirements of the entire braking system.
Technical Details
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: GT Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: aluminum; Black E-Coat; 0.210-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm
- Hat wheel-stud clearance holes: 0.520 in, corresponding to the listed hat patterns
Calipers and friction components
- Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in
Kit contents and separate parts
- Manufacturer part number: 140-9285
- Supply: one kit with brake components for both sides of the front axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Separate hose kit application reference: 220-9287; verify the vehicle connections and routing
Fitment & Compatibility
For the 2003–2006 Evolution VIII/IX models and MR/RS applications identified in the table below. This 14-inch front package retains the original hub and uses an aluminum hat with a 0.210-inch offset. Verify the larger rotor envelope against the DS-554 wheel-clearance diagram before purchase. The stock master cylinder can be used subject to a complete brake-bias evaluation; it is not supplied. Hydraulic connections require the separately sold 220-9287 hose kit, with length and clearance checked on the vehicle. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details for help matching this kit.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2003-2005 | Mitsubishi | Lancer | Evolution | Evolution (EVO VIII) | Disc | Disc | Front Kit | 1, 2, 3 |
| 2005 | Mitsubishi | Lancer | Evolution MR | Evolution MR (EVO VIII) | Disc | Disc | Front Kit | 1, 2, 3 |
| 2005 | Mitsubishi | Lancer | Evolution RS | Evolution RS (EVO VIII) | Disc | Disc | Front Kit | 1, 2, 3 |
| 2006 | Mitsubishi | Lancer | Evolution | Evolution (EVO IX) | Disc | Disc | Front Kit | 1, 2, 3 |
| 2006 | Mitsubishi | Lancer | Evolution MR | Evolution MR (EVO IX) | Disc | Disc | Front Kit | 1, 2, 3 |
| 2006 | Mitsubishi | Lancer | Evolution RS | Evolution RS (EVO IX) | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- 14" Rotor
- Line kit included (manufacturer): None
- Front line-kit reference: 220-9287
