Product details

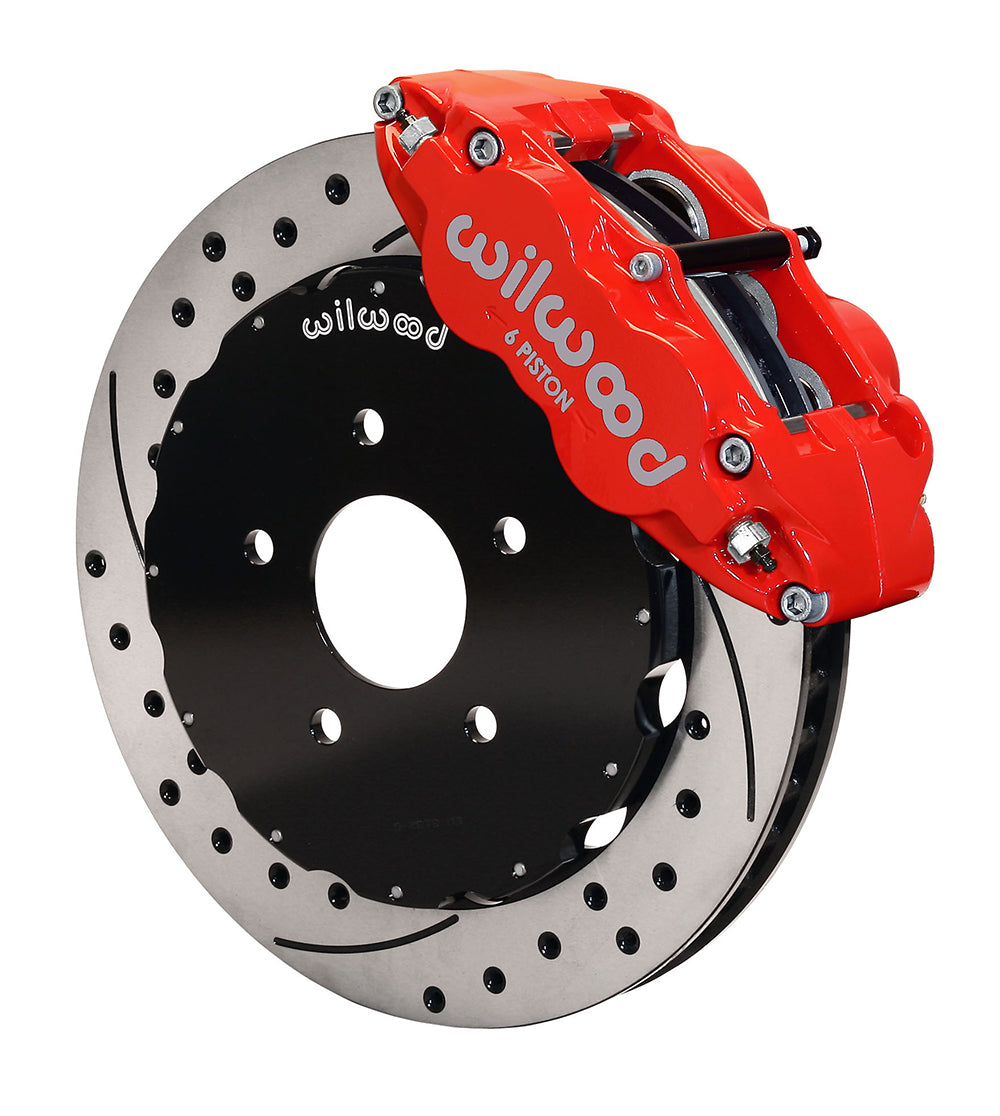

Red FNSL6R calipers frame the drilled/slotted rotors in this 13.06-inch Mitsubishi front package. Its mounting hardware and 0.210-inch-offset aluminum hats are application-specific to the supported Evolution VIII and IX configurations. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The requirements of the complete brake system govern the choice of individual components.
Technical Details
Calipers and friction components
- Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in
Rotors and mounting dimensions
- Rotors: 13.06 in; 331.72 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 48 curved
- Hats: aluminum; Black E-Coat; 0.210-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm
- Hat wheel-stud clearance holes: 0.520 in, corresponding to the listed hat patterns

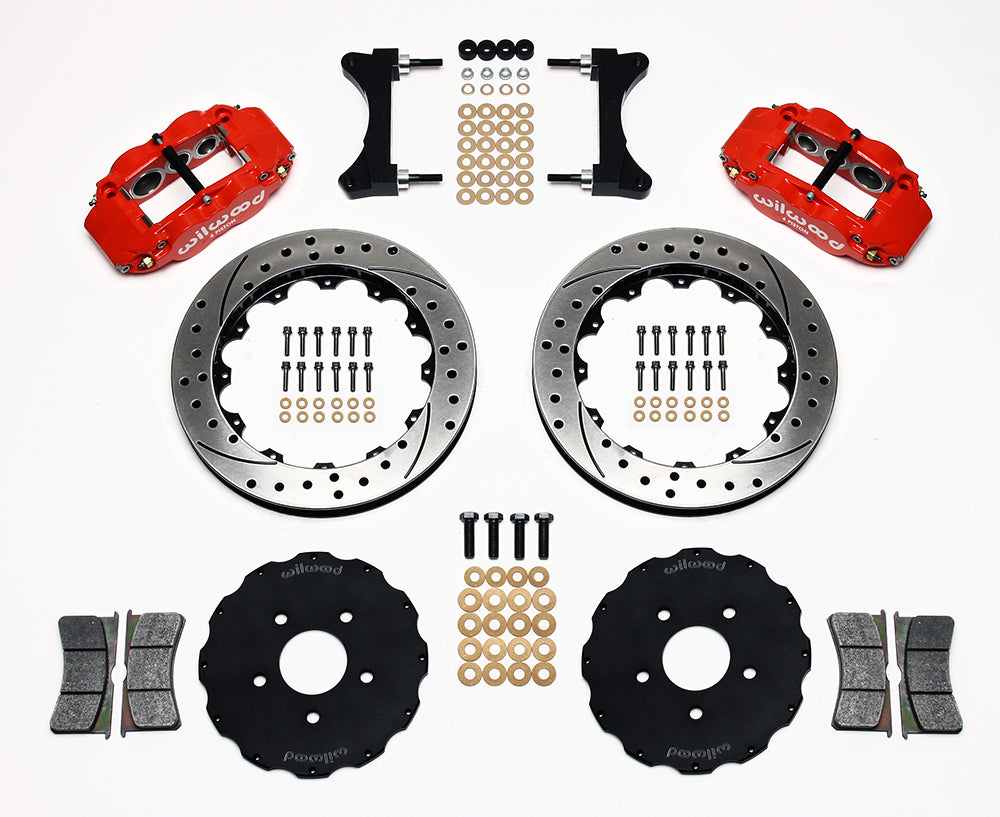

Kit contents and separate parts
- Manufacturer part number: 140-9284-DR
- Supply: one kit with brake components for both sides of the front axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Separate hose kit application reference: 220-9287; verify the vehicle connections and routing
Fitment & Compatibility
Fits the specified Lancer Evolution VIII and IX front applications, including the listed MR and RS versions. Follow the individual 2003–2006 model entries in the table below; this is not a fitment claim for ordinary Lancer models. The brackets and aluminum hats use the retained original front hubs and uprights. Check the DS-553 wheel template and brake balance with the vehicle configuration. OEM hoses do not adapt to these calipers; select the separate 220-9287 front flexline kit and verify routing. Nominal minimum wheel diameter: 17 in; 431.8 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance has supported brake and restoration projects for more than 20 years. Share the vehicle and installed hardware with us for help selecting a compatible package.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2003-2005 | Mitsubishi | Lancer | Evolution | Evolution (EVO VIII) | Disc | Disc | Front Kit | 1, 2 |
| 2005 | Mitsubishi | Lancer | Evolution MR | Evolution MR (EVO VIII) | Disc | Disc | Front Kit | 1, 2 |
| 2005 | Mitsubishi | Lancer | Evolution RS | Evolution RS (EVO VIII) | Disc | Disc | Front Kit | 1, 2 |
| 2006 | Mitsubishi | Lancer | Evolution | Evolution (EVO IX) | Disc | Disc | Front Kit | 1, 2 |
| 2006 | Mitsubishi | Lancer | Evolution MR | Evolution MR (EVO IX) | Disc | Disc | Front Kit | 1, 2 |
| 2006 | Mitsubishi | Lancer | Evolution RS | Evolution RS (EVO IX) | Disc | Disc | Front Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): None
- Front line-kit reference: 220-9287
