Product details

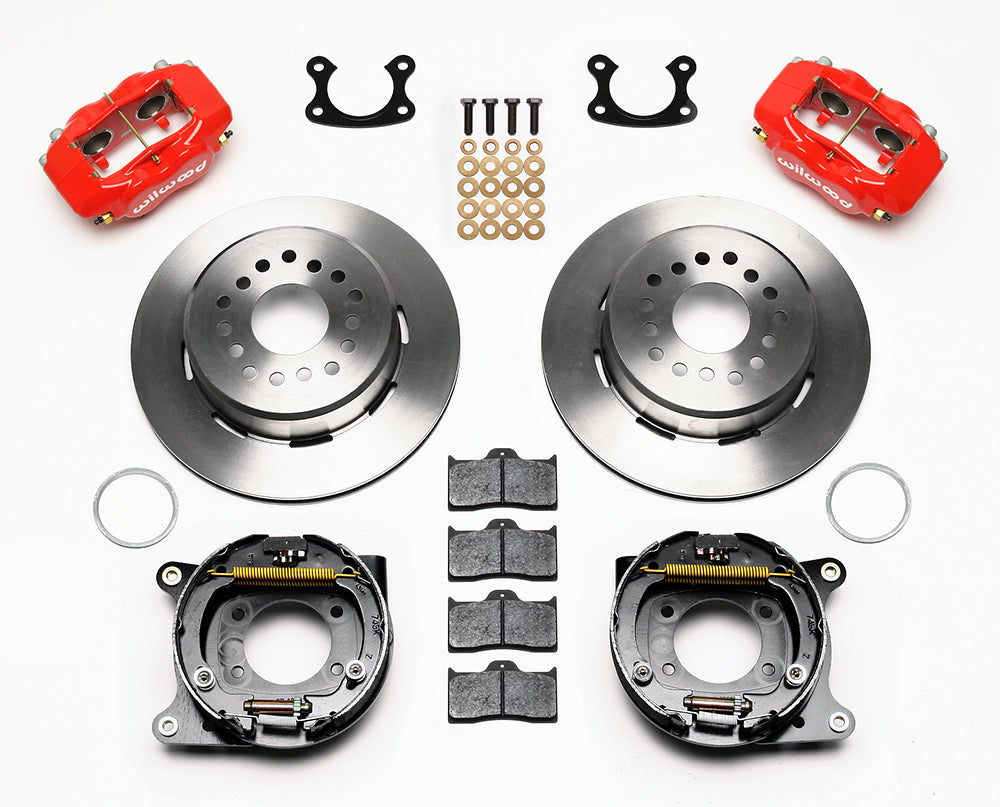

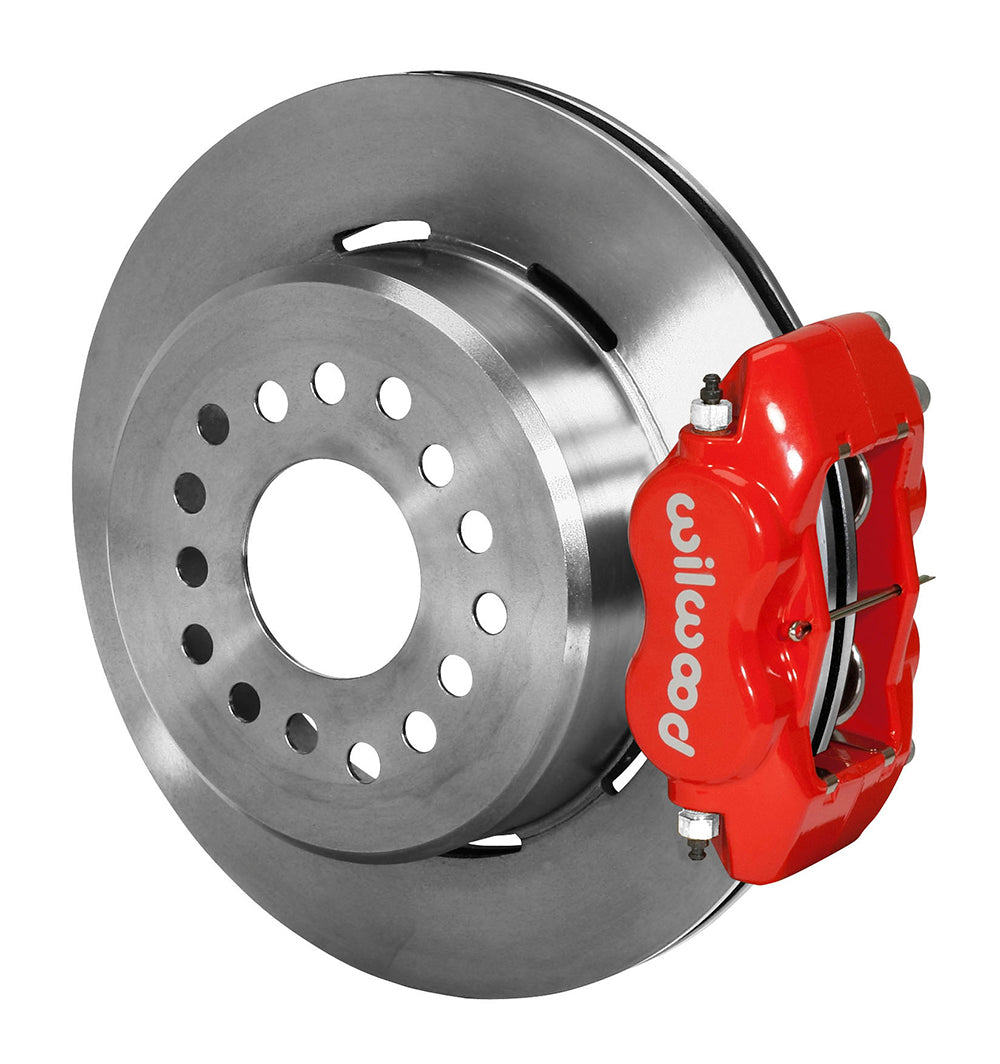

Red calipers provide the finish contrast in this plain-rotor conversion for small-bearing Ford rear ends. The rotor hats, included internal parking hardware and 2.50-inch axle offset must be considered together when checking an original or modified vehicle. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood, its range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component must be chosen for its role within the complete braking system.
Technical Details
Calipers and friction components
- Calipers: Forged Dynalite Internal; 4 pistons per caliper
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: lug
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.38 / 1.38 in
Kit contents and separate parts
- Manufacturer part number: 140-9282-R
- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Required axle housing end: Small Ford
- Axle offset: 2.50 in; 63.5 mm
- Internal drum parking-brake assemblies and bearing retainers are included.
Rotors and mounting dimensions
- Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
- Friction faces: Plain Face
- Rotor finish: Plain
- Internal vanes: 32 straight
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
Fitment & Compatibility
Confirm the small-bearing Ford housing-end pattern and 2.50-inch axle offset against DS-536. The 1990 Lincoln Town Car entry in the table below is conditional on the actual installed rear-end hardware; it is not a substitute for measuring the housing, bearing and axle flange. Check the maximum 6.61-inch axle flange and specified chamfer before assembly. The separate internal parking shoes require suitable cables and clevises; Wilwood offers universal cable kit 330-9371. Select hydraulic hose length and fittings for the vehicle. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Our team at PMB Performance draws on 20+ years of brake and restoration work. We can help check the mounting requirements and component choices for your build.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- 330-9371 Universal Parking Brake Cable Kit to complete installation of Internal Drum Style Parking Brake Kits (fits most domestic applications) .
- Line kit included (manufacturer): None
