Product details

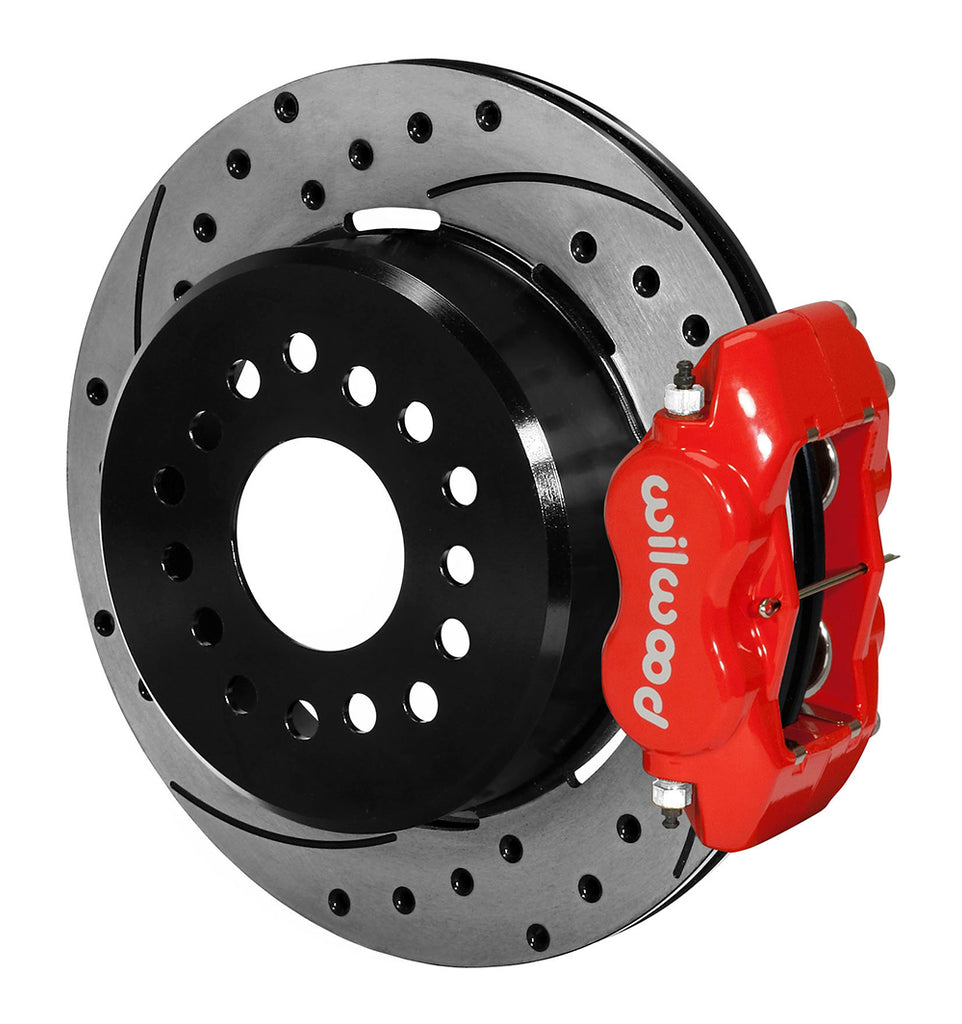

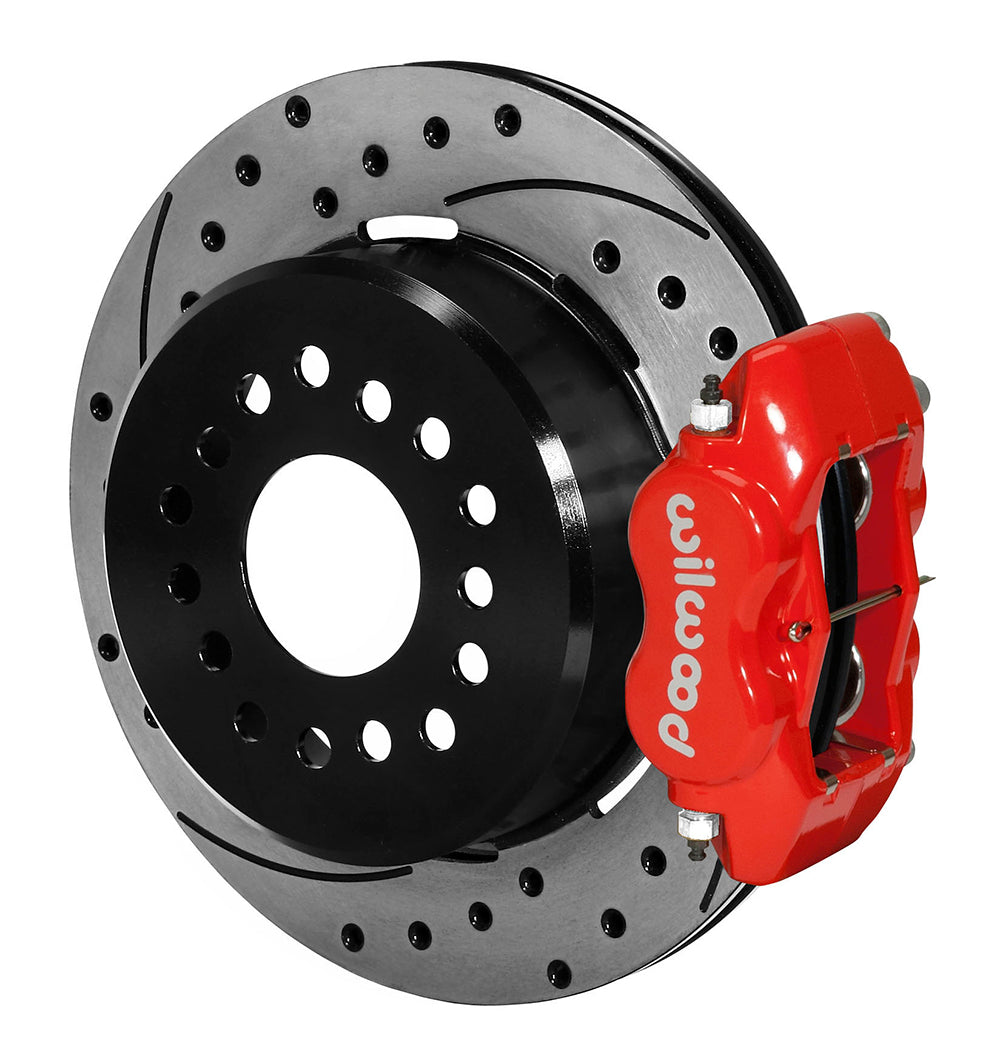

This red FDLI kit brings a drilled/slotted rotor finish to the specified small-bearing Ford rear housing. The service calipers and drum parking mechanism perform separate jobs, and the installation needs compatible cables plus correctly routed hydraulic lines. Wilwood Engineering designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977; its Camarillo, California operation serves motorsport, street-performance and specialized applications. Each part must be selected to work with the complete brake system and its requirements.
Technical Details
Rotors and mounting dimensions
- Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 32 straight
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm

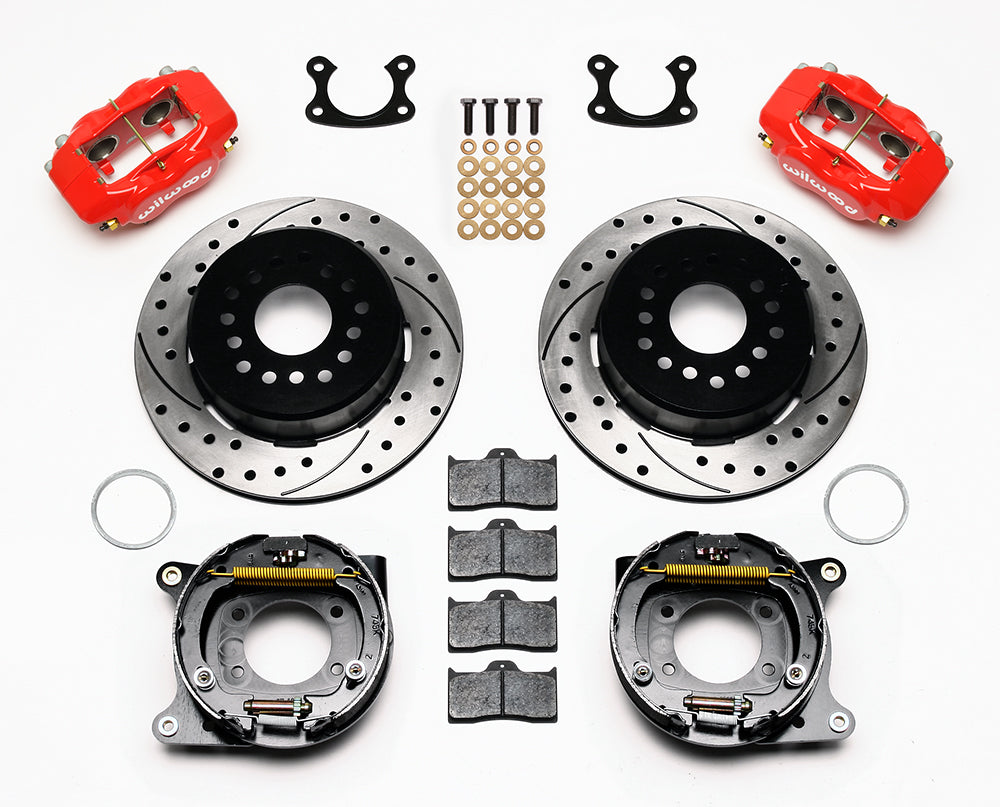

Kit contents and separate parts
- Manufacturer part number: 140-9282-DR
- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Required axle housing end: Small Ford
- Axle offset: 2.50 in; 63.5 mm
- Internal drum parking-brake assemblies and bearing retainers are included.
Calipers and friction components
- Calipers: Forged Dynalite Internal; 4 pistons per caliper
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: lug
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.38 / 1.38 in
Fitment & Compatibility
Confirm the small-bearing Ford housing-end pattern and 2.50-inch axle offset against DS-536. The 1990 Lincoln Town Car entry in the table below is conditional on the actual installed rear-end hardware; it is not a substitute for measuring the housing, bearing and axle flange. Check the maximum 6.61-inch axle flange and specified chamfer before assembly. The separate internal parking shoes require suitable cables and clevises; Wilwood offers universal cable kit 330-9371. Select hydraulic hose length and fittings for the vehicle. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
With over 20 years of brake-system and restoration experience, PMB Performance can help you review the application, wheel clearance and remaining parts for the installation.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- 330-9371 Universal Parking Brake Cable Kit to complete installation of Internal Drum Style Parking Brake Kits (fits most domestic applications) .
- Line kit included (manufacturer): None
