Product details

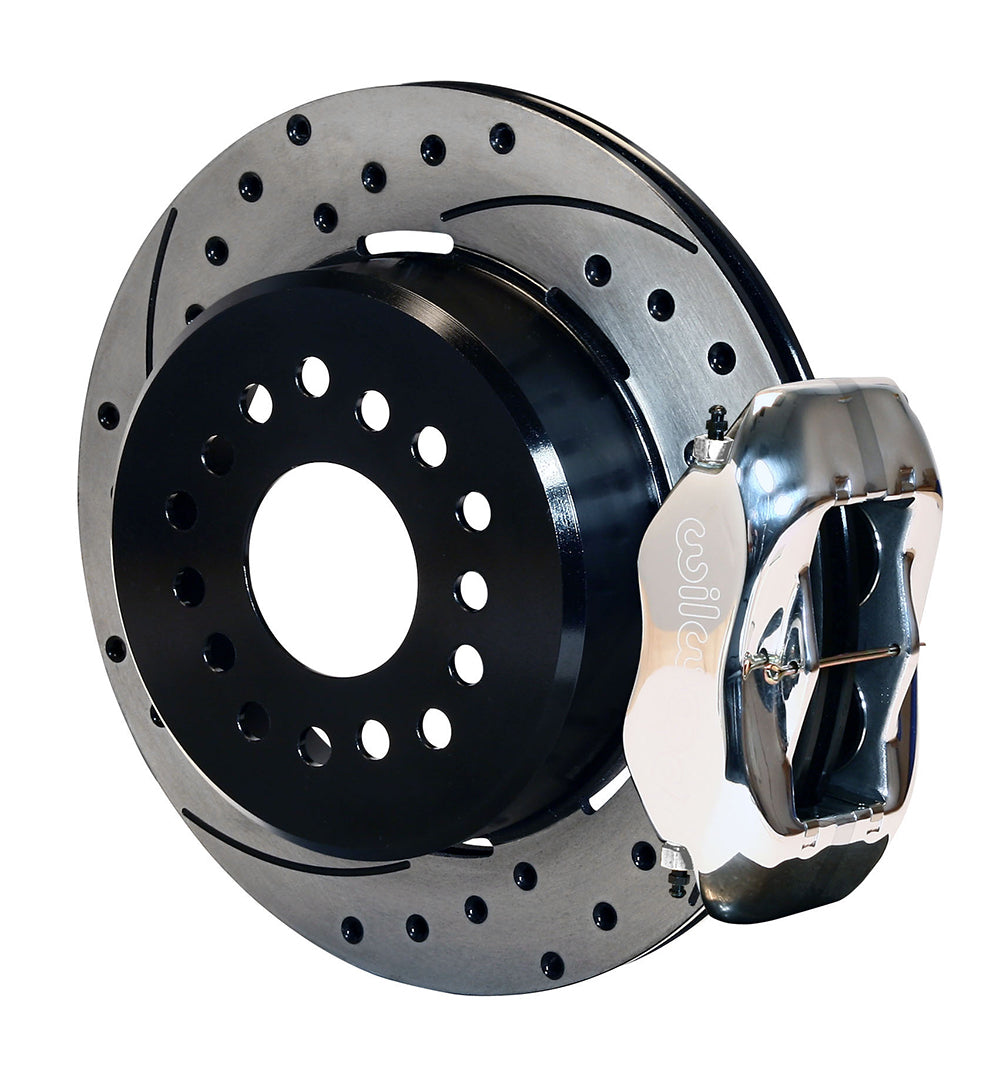

Polished aluminum FDLI calipers distinguish this small-bearing Ford rear kit from its powder-coated versions. SRP drilled and slotted rotors provide the 12.19-inch friction surfaces, with internal parking shoes and mounting brackets suited to the 2.50-inch offset. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. The complete braking arrangement determines which individual components are appropriate.
Technical Details
Rotors and mounting dimensions
- Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 32 straight
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
Calipers and friction components
- Calipers: Forged Dynalite Internal; 4 pistons per caliper
- Caliper finish: Polished
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: lug
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.38 / 1.38 in

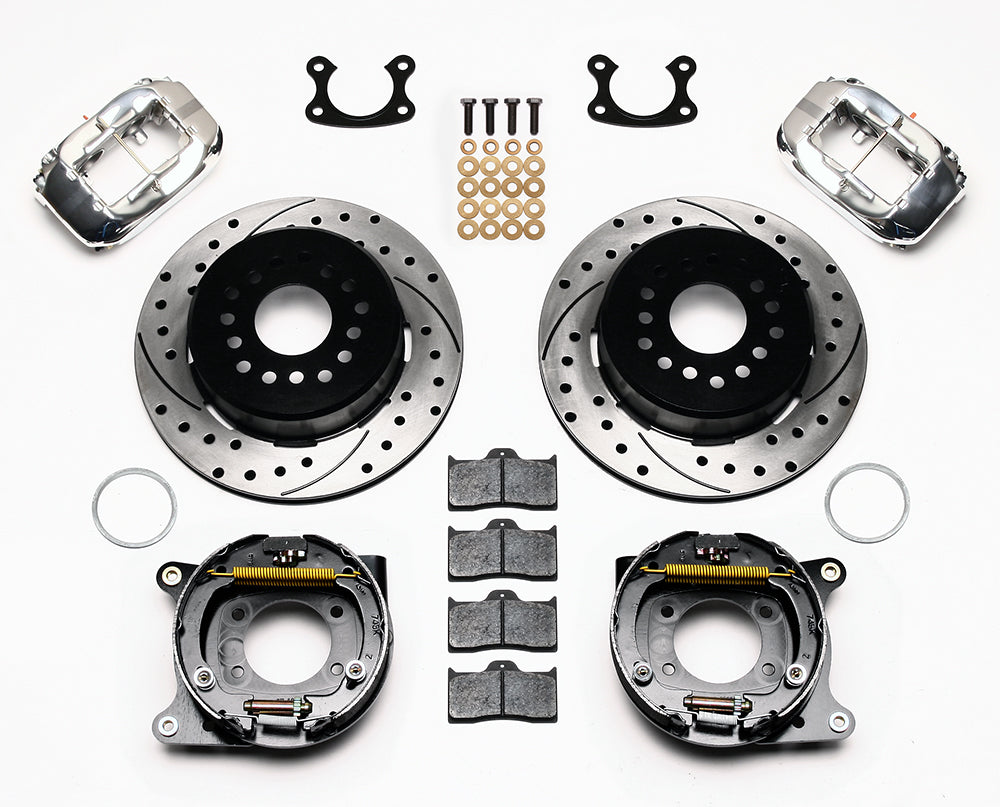

Kit contents and separate parts
- Manufacturer part number: 140-9282-DP
- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Required axle housing end: Small Ford
- Axle offset: 2.50 in; 63.5 mm
- Internal drum parking-brake assemblies and bearing retainers are included.
Fitment & Compatibility
Confirm the small-bearing Ford housing-end pattern and 2.50-inch axle offset against DS-536. The 1990 Lincoln Town Car entry in the table below is conditional on the actual installed rear-end hardware; it is not a substitute for measuring the housing, bearing and axle flange. Check the maximum 6.61-inch axle flange and specified chamfer before assembly. The separate internal parking shoes require suitable cables and clevises; Wilwood offers universal cable kit 330-9371. Select hydraulic hose length and fittings for the vehicle. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details for help matching this kit.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- 330-9371 Universal Parking Brake Cable Kit to complete installation of Internal Drum Style Parking Brake Kits (fits most domestic applications) .
- Line kit included (manufacturer): None
