Product details

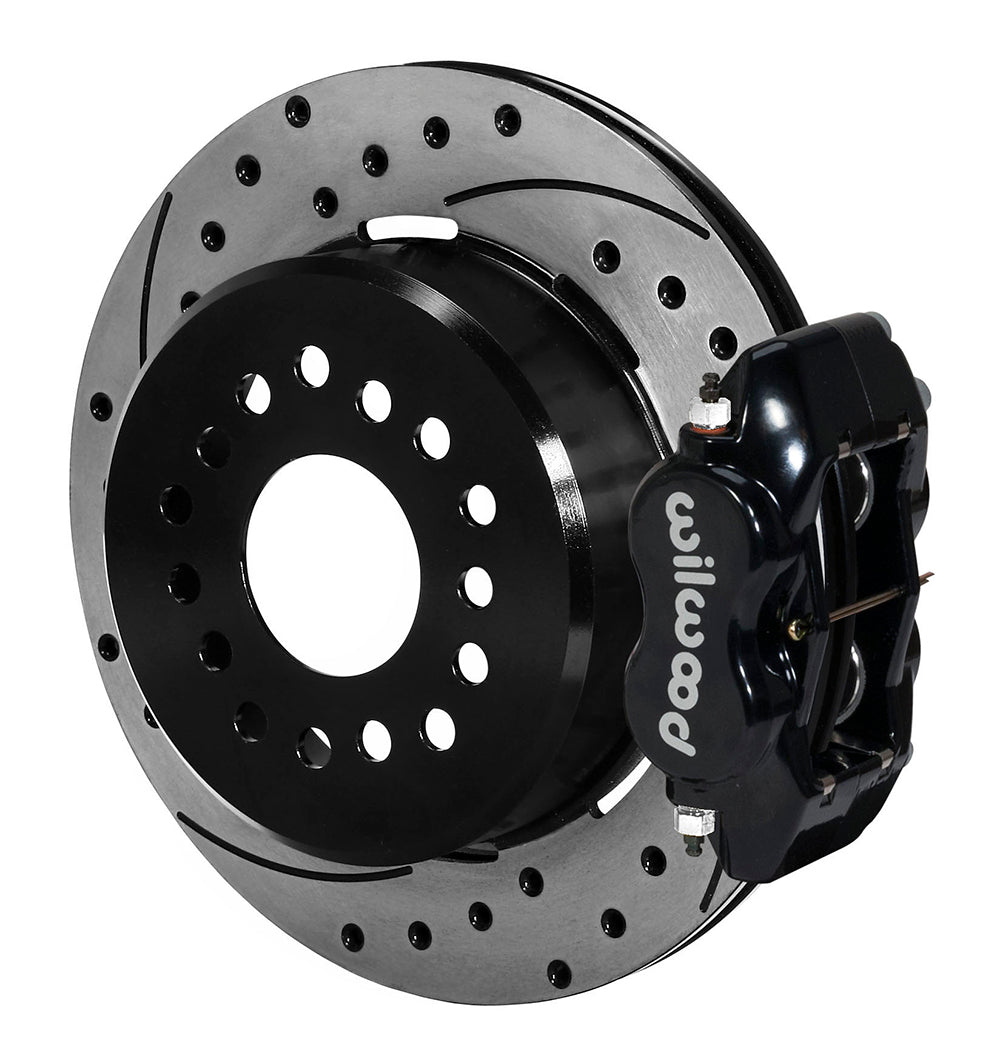

Black powder-coated calipers and drilled/slotted SRP rotors make up this small-Ford rear disc package. The internal parking assembly sits inside each one-piece rotor hat and mounts to the measured 2.50-inch-offset axle arrangement. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, with calipers, brake rotors, master cylinders, valves, fittings and brake lines in its range. Every component must suit the complete brake system in which it operates.
Technical Details

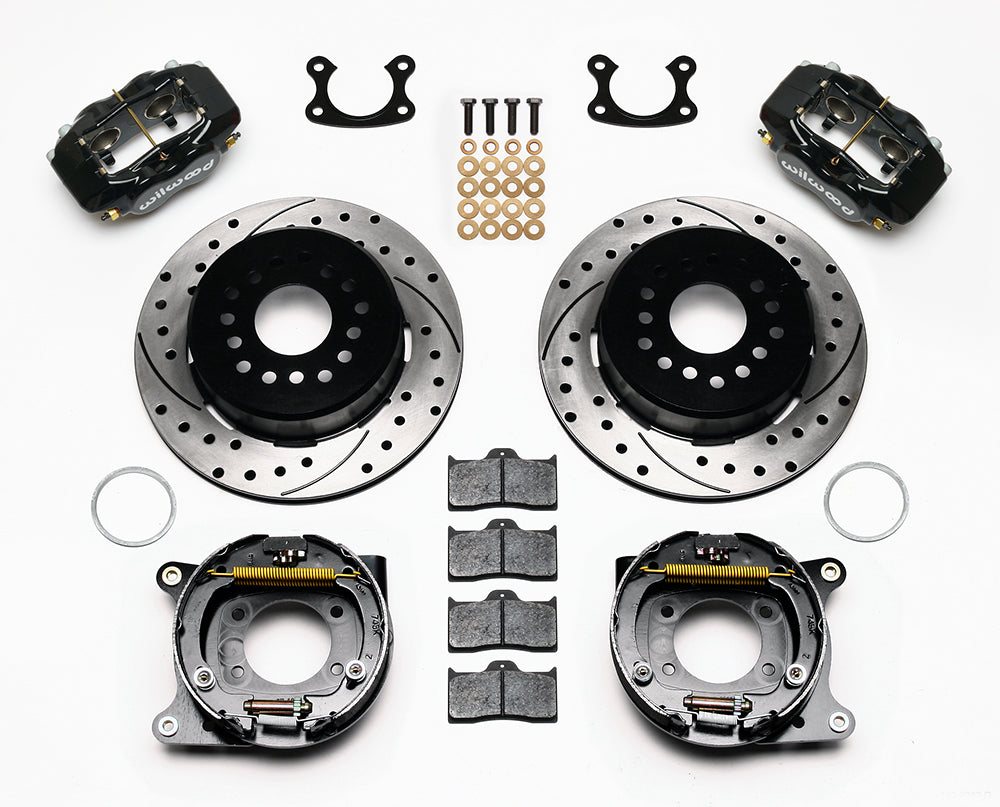

Kit contents and separate parts
- Manufacturer part number: 140-9282-D
- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Required axle housing end: Small Ford
- Axle offset: 2.50 in; 63.5 mm
- Internal drum parking-brake assemblies and bearing retainers are included.
Calipers and friction components
- Calipers: Forged Dynalite Internal; 4 pistons per caliper
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: lug
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.38 / 1.38 in
Rotors and mounting dimensions
- Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 32 straight
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
Fitment & Compatibility
Confirm the small-bearing Ford housing-end pattern and 2.50-inch axle offset against DS-536. The 1990 Lincoln Town Car entry in the table below is conditional on the actual installed rear-end hardware; it is not a substitute for measuring the housing, bearing and axle flange. Check the maximum 6.61-inch axle flange and specified chamfer before assembly. The separate internal parking shoes require suitable cables and clevises; Wilwood offers universal cable kit 330-9371. Select hydraulic hose length and fittings for the vehicle. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance offers parts-selection support backed by more than 20 years in brake systems and restoration. Let us help review the details of your vehicle and installation.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- 330-9371 Universal Parking Brake Cable Kit to complete installation of Internal Drum Style Parking Brake Kits (fits most domestic applications) .
- Line kit included (manufacturer): None
