Wilwood Rear FDLI Kit, 2005–2014 Ford Mustang, 2.66-inch Rear Axle Offset - Red Calipers, 12.19-inch Plain Rotors

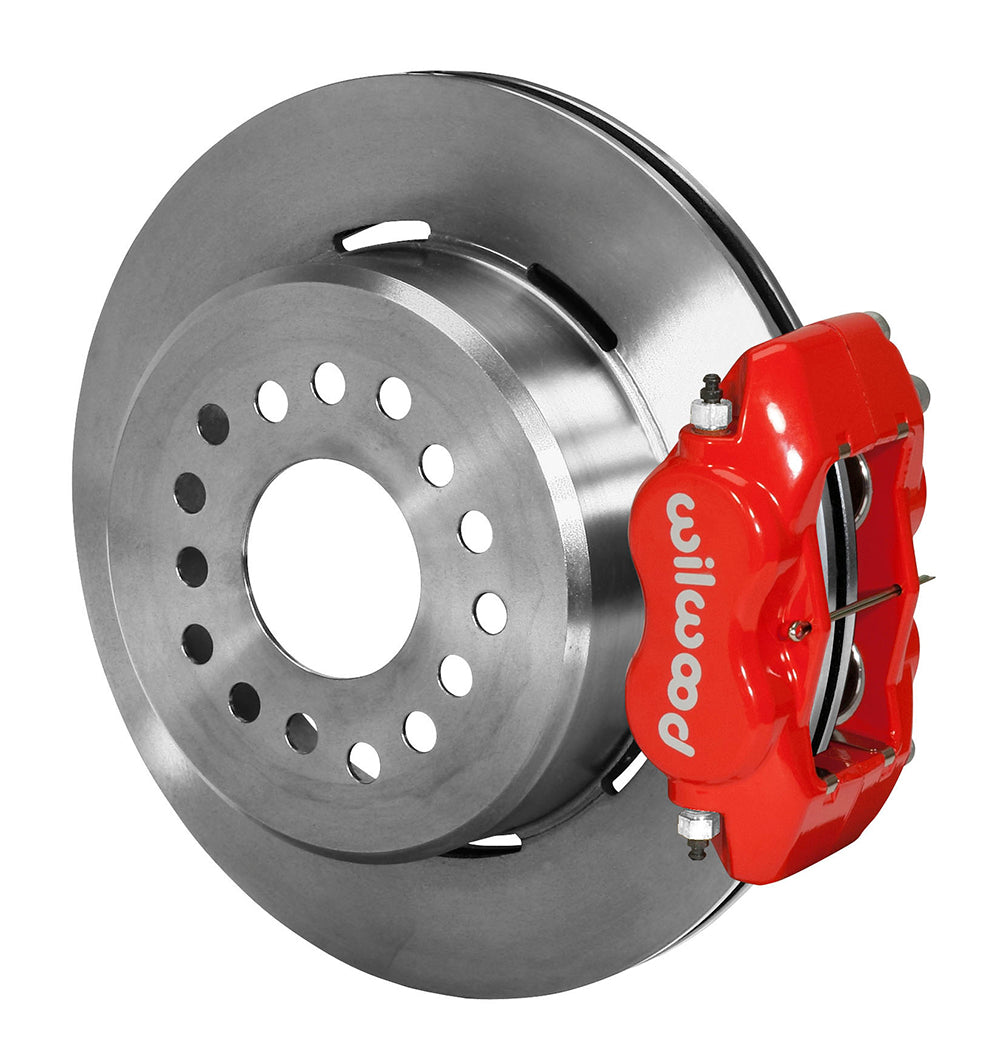

Plain vented rotors keep an uninterrupted friction face in this red-caliper Mustang rear conversion. Four stainless pistons in each FDLI service caliper operate separately from the internal parking shoes supplied for the 2.66-inch-offset axle installation. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Individual parts must match the complete brake system and its operating requirements.

Technical Details

Calipers and friction components

• Calipers: Forged Dynalite Internal; 4 pistons per caliper
• Caliper finish: Red Powder Coat
• Body construction: Forged aluminum
• Piston material: stainless
• Caliper mounting: lug
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.38 / 1.38 in

Rotors and mounting dimensions

• Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
• Friction faces: Plain Face
• Rotor finish: Plain
• Internal vanes: 32 straight
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm

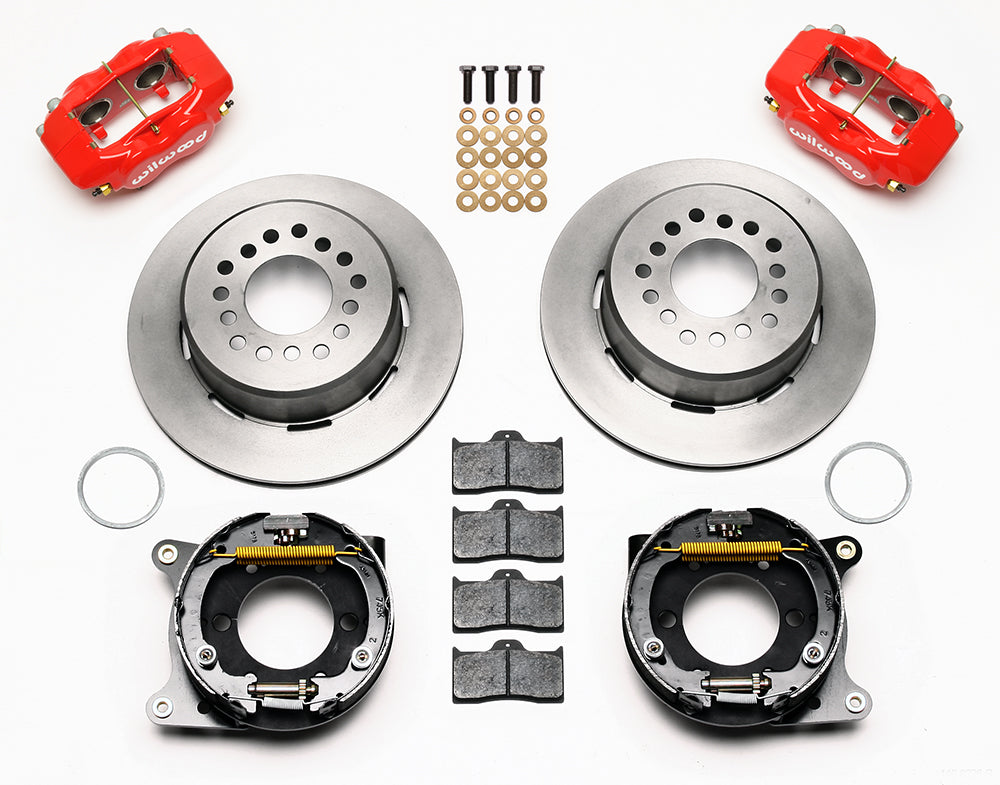

Kit contents and separate parts

• Manufacturer part number: 140-9228-R
• Supply: one kit with brake components for both sides of the rear axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Hydraulic hoses: not included
• Required axle housing end: Mustang 05-up
• Axle offset: 2.66 in; 67.56 mm
• One-piece rotor/hat assemblies; original wheel-speed sensors are reused.
• Separate hose kit application reference: 220-9248; verify the vehicle connections and routing

Fitment & Compatibility

Use the Mustang trim, year and equipment entries in the table below, then confirm the 2005–2014 axle flange and 2.66-inch offset in DS-535. Minor axle-flange modification may be needed to reinstall the original wheel-speed sensor; the guide illustrates the required clearance. The kit supplies internal drum parking-brake assemblies. Clevises and cables are separate: Wilwood specifies 330-11221 for 2005–2010 and 330-12335 for 2011–2014. The 220-9248 flexline kit is also separate; the CPB-caliper hose reference is not the hose selection for this internal-drum kit. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

• Installation instructions
• Technical bulletin

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance has supported brake and restoration projects for more than 20 years. Share the vehicle and installed hardware with us for help selecting a compatible package.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
3. Line kit included (manufacturer): None
4. Rear line-kit reference: 220-9248
