Wilwood Rear Red Brake Kit - 2005–2014 Ford Mustang, 2.66-inch Rear Axle Offset, FDLI and Drilled/Slotted 12.19-inch Rotors

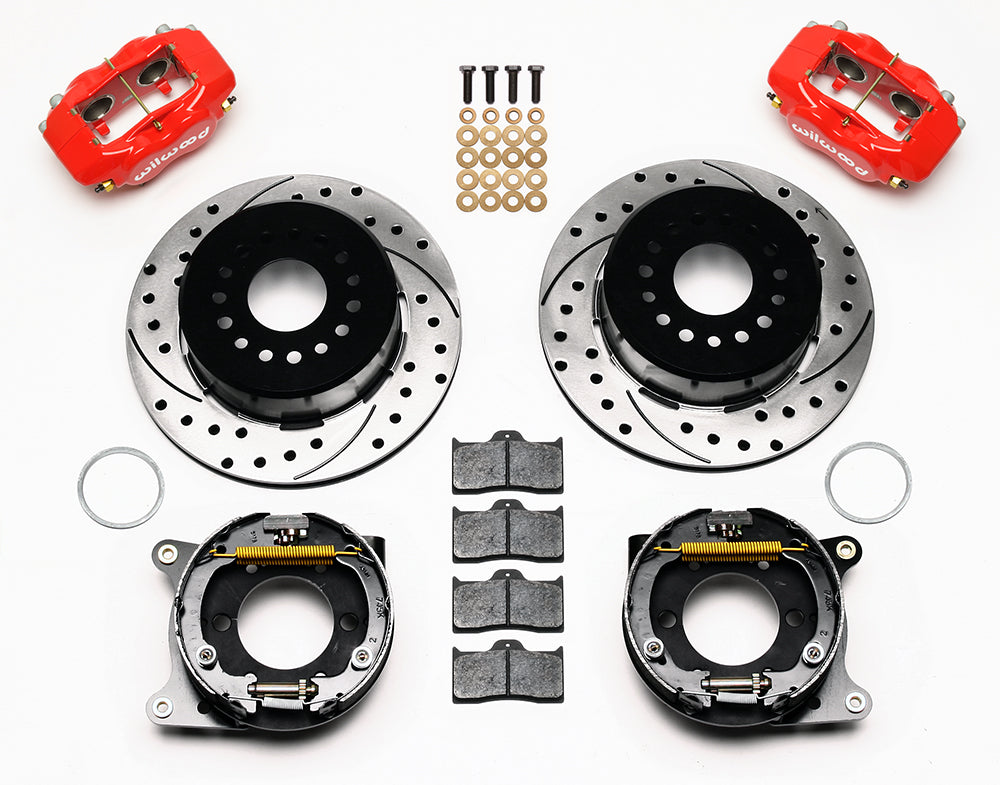

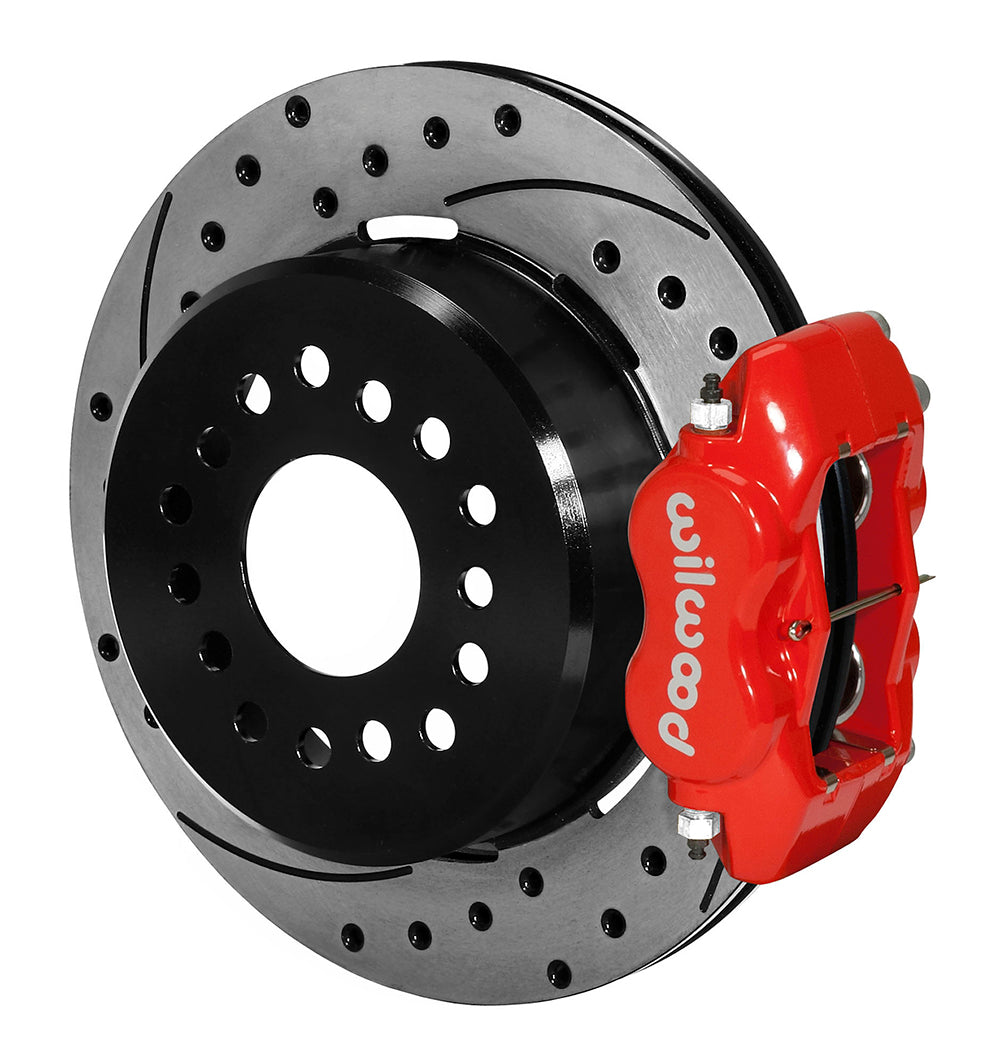

Red FDLI calipers and black-coated drilled/slotted rotor hats create this Mustang rear disc and parking-brake package. The kit includes the internal parking assemblies, but compatible cables, clevises and hydraulic hoses must be selected for the car. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. The requirements of the complete brake system govern the choice of individual components.

Technical Details

Rotors and mounting dimensions

• Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
• Friction faces: SRP Drilled & Slotted
• Rotor finish: Black Electro Coat
• Internal vanes: 32 straight
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm

Calipers and friction components

• Calipers: Forged Dynalite Internal; 4 pistons per caliper
• Caliper finish: Red Powder Coat
• Body construction: Forged aluminum
• Piston material: stainless
• Caliper mounting: lug
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.38 / 1.38 in

Kit contents and separate parts

• Manufacturer part number: 140-9228-DR
• Supply: one kit with brake components for both sides of the rear axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Hydraulic hoses: not included
• Required axle housing end: Mustang 05-up
• Axle offset: 2.66 in; 67.56 mm
• One-piece rotor/hat assemblies; original wheel-speed sensors are reused.
• Separate hose kit application reference: 220-9248; verify the vehicle connections and routing

Fitment & Compatibility

Use the Mustang trim, year and equipment entries in the table below, then confirm the 2005–2014 axle flange and 2.66-inch offset in DS-535. Minor axle-flange modification may be needed to reinstall the original wheel-speed sensor; the guide illustrates the required clearance. The kit supplies internal drum parking-brake assemblies. Clevises and cables are separate: Wilwood specifies 330-11221 for 2005–2010 and 330-12335 for 2011–2014. The 220-9248 flexline kit is also separate; the CPB-caliper hose reference is not the hose selection for this internal-drum kit. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

• Installation instructions
• Technical bulletin

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details for help matching this kit.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
3. Line kit included (manufacturer): None
4. Rear line-kit reference: 220-9248
