Wilwood Rear 12.19-inch Rotor and FDLI Kit - Black, Drilled/Slotted, 2005–2014 Ford Mustang, 2.66-inch Rear Axle Offset

This Mustang kit substitutes SRP drilled and slotted rear rotors while keeping black four-piston FDLI calipers. Internal parking shoes and reusable original wheel-speed sensors make axle-flange clearance and the correct year-specific cable choice important installation details. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among the disc brake systems and components Wilwood Engineering designs and manufactures. The Camarillo, California company was founded by Bill Wood in 1977 and supports motorsport, street-performance and specialized applications. Choose each component to match the complete system’s braking requirements.

Technical Details

Kit contents and separate parts

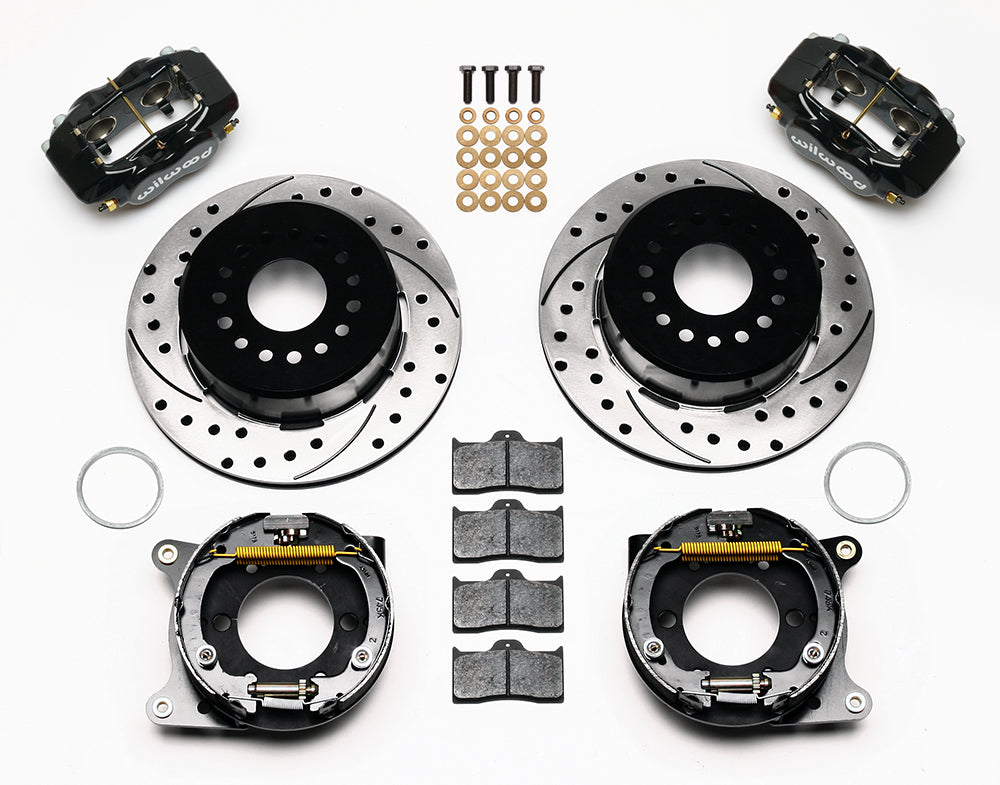

• Manufacturer part number: 140-9228-D
• Supply: one kit with brake components for both sides of the rear axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Hydraulic hoses: not included
• Required axle housing end: Mustang 05-up
• Axle offset: 2.66 in; 67.56 mm
• One-piece rotor/hat assemblies; original wheel-speed sensors are reused.
• Separate hose kit application reference: 220-9248; verify the vehicle connections and routing

Rotors and mounting dimensions

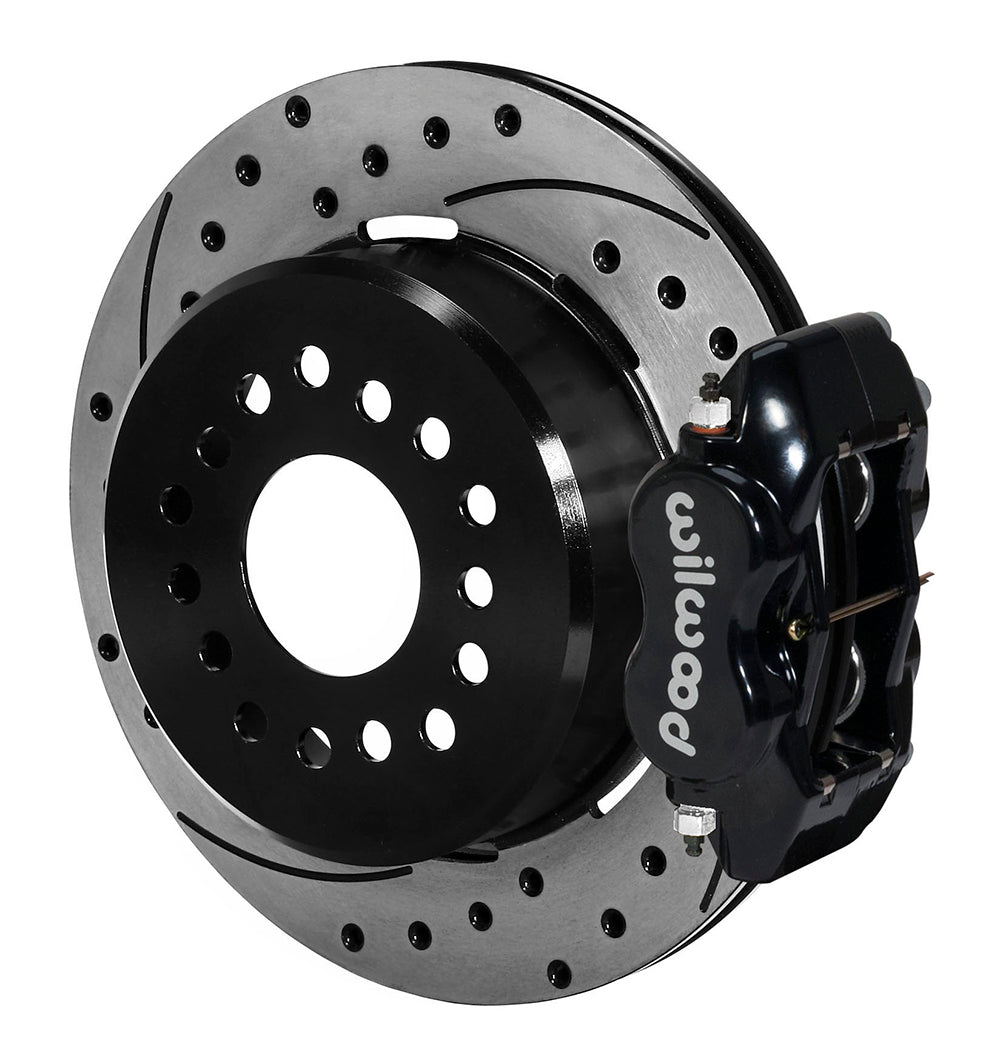

• Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
• Friction faces: SRP Drilled & Slotted
• Rotor finish: Black Electro Coat
• Internal vanes: 32 straight
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm

Calipers and friction components

• Calipers: Forged Dynalite Internal; 4 pistons per caliper
• Caliper finish: Black Powder Coat
• Body construction: Forged aluminum
• Piston material: stainless
• Caliper mounting: lug
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.38 / 1.38 in

Fitment & Compatibility

Use the Mustang trim, year and equipment entries in the table below, then confirm the 2005–2014 axle flange and 2.66-inch offset in DS-535. Minor axle-flange modification may be needed to reinstall the original wheel-speed sensor; the guide illustrates the required clearance. The kit supplies internal drum parking-brake assemblies. Clevises and cables are separate: Wilwood specifies 330-11221 for 2005–2010 and 330-12335 for 2011–2014. The 220-9248 flexline kit is also separate; the CPB-caliper hose reference is not the hose selection for this internal-drum kit. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

• Installation instructions
• Technical bulletin

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For help matching the axle, spindle and brake components, contact PMB Performance. Our team brings over 20 years of experience in brakes and vehicle restoration.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
3. Line kit included (manufacturer): None
4. Rear line-kit reference: 220-9248
