Wilwood Rear Small Ford SRP Conversion at 2.50-Inch Offset — 12.88-Inch Rotors, Black Calipers & Parking Shoes

This black SRP rear kit is configured for Small Ford axle ends at 2.50-inch offset. Its 12.88-inch drilled/slotted rotors and internal parking assemblies use the matched bracket and bearing-retainer hardware specified in DS530. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are all part of Wilwood Engineering’s range of disc brake systems and components. The Camarillo, California company was founded in 1977 by Bill Wood and designs and manufactures these products for motorsport, street-performance and specialized applications. Compatibility with the complete brake system determines the appropriate component choice.

Technical Details

• Manufacturer part number: 140-9220-D
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Required axle offset: 2.50 inches; measure from the axle flange to the housing flange as shown in the instructions
• Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
• Hydraulic hoses: not included; match the separate lines and fittings to the application

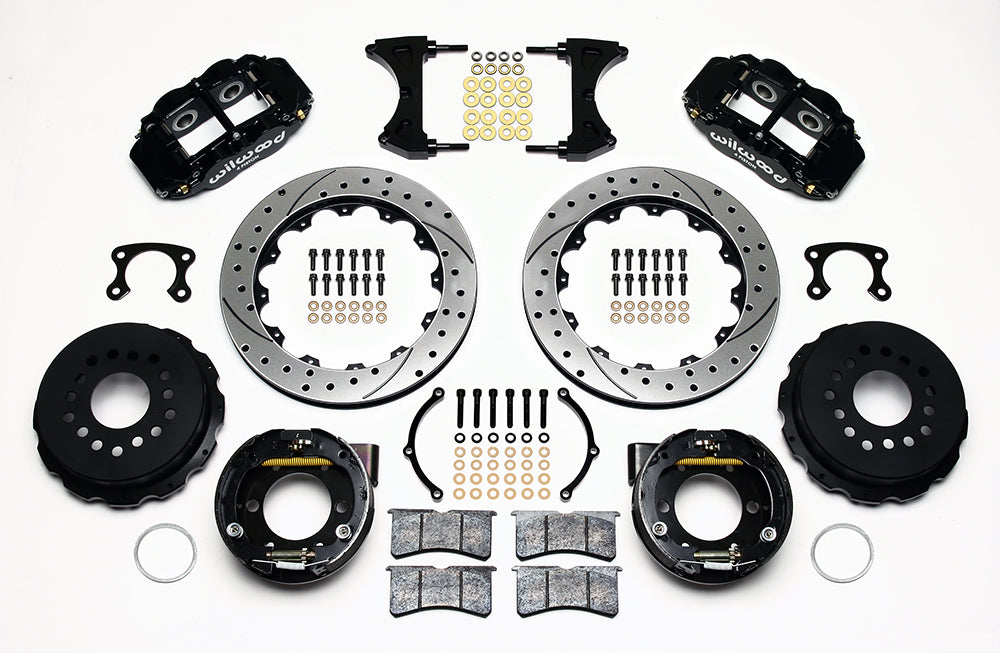

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit

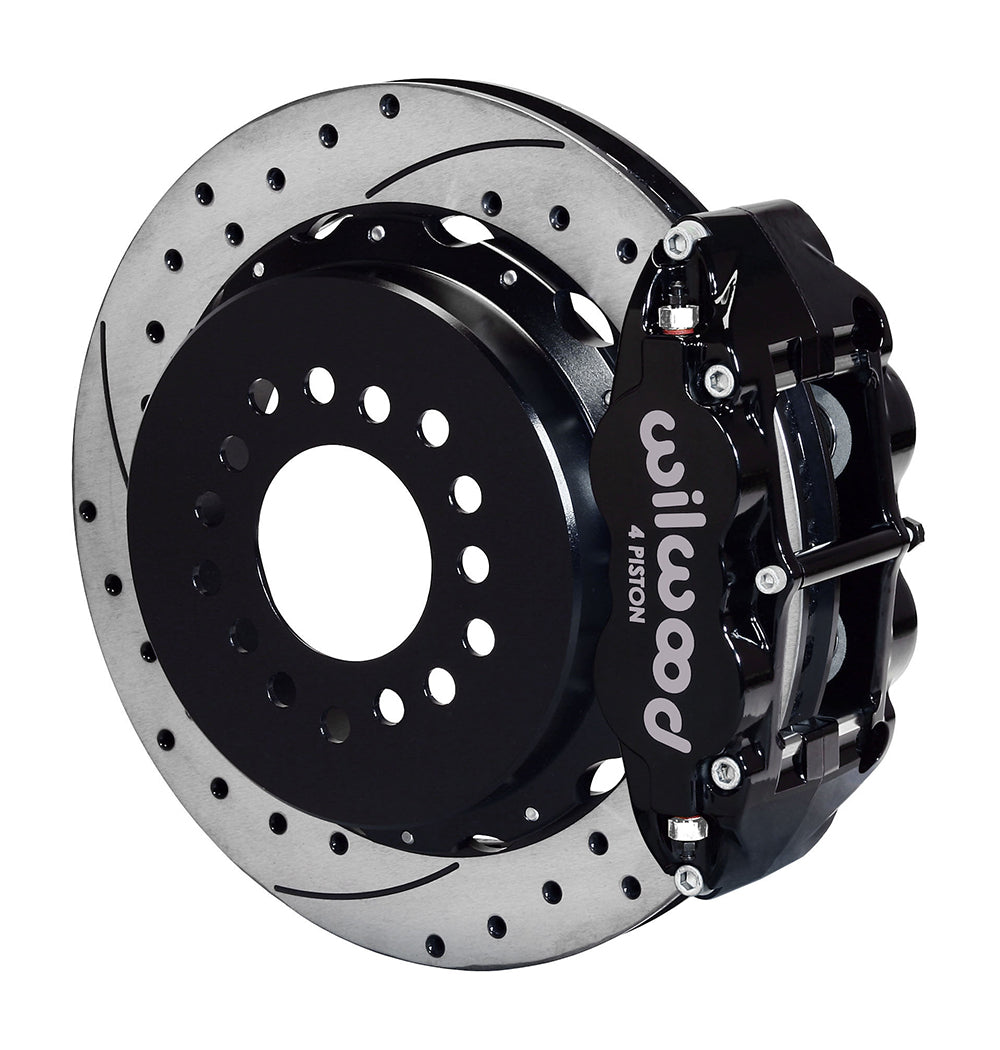

• Service calipers: 4-piston Forged Narrow Superlite 4R; Black Powder Coat; radial mounting

Fitment & Compatibility

For the black SRP kit, confirm Small Ford axle ends with the DS530 bearing layout and a measured 2.50-inch offset. Check how the supplied retainer holds the bearing against the parking backing plate. The hat opening is 3.06 inches; the included ring accommodates a 2.80-inch register. Axle-flange size and chamfer must satisfy the 6.61-inch clearance limit. Hoses and parking-cable/clevis attachments are separate. A vehicle-name match is insufficient if the axle configuration has not been identified.

Check the full application table below, including its model-year splits and brake-configuration requirements.

Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
