Wilwood Rear 2.50-Offset Small Ford Brake Kit, Black Superlites & GT-Slotted 12.88-Inch Rotors

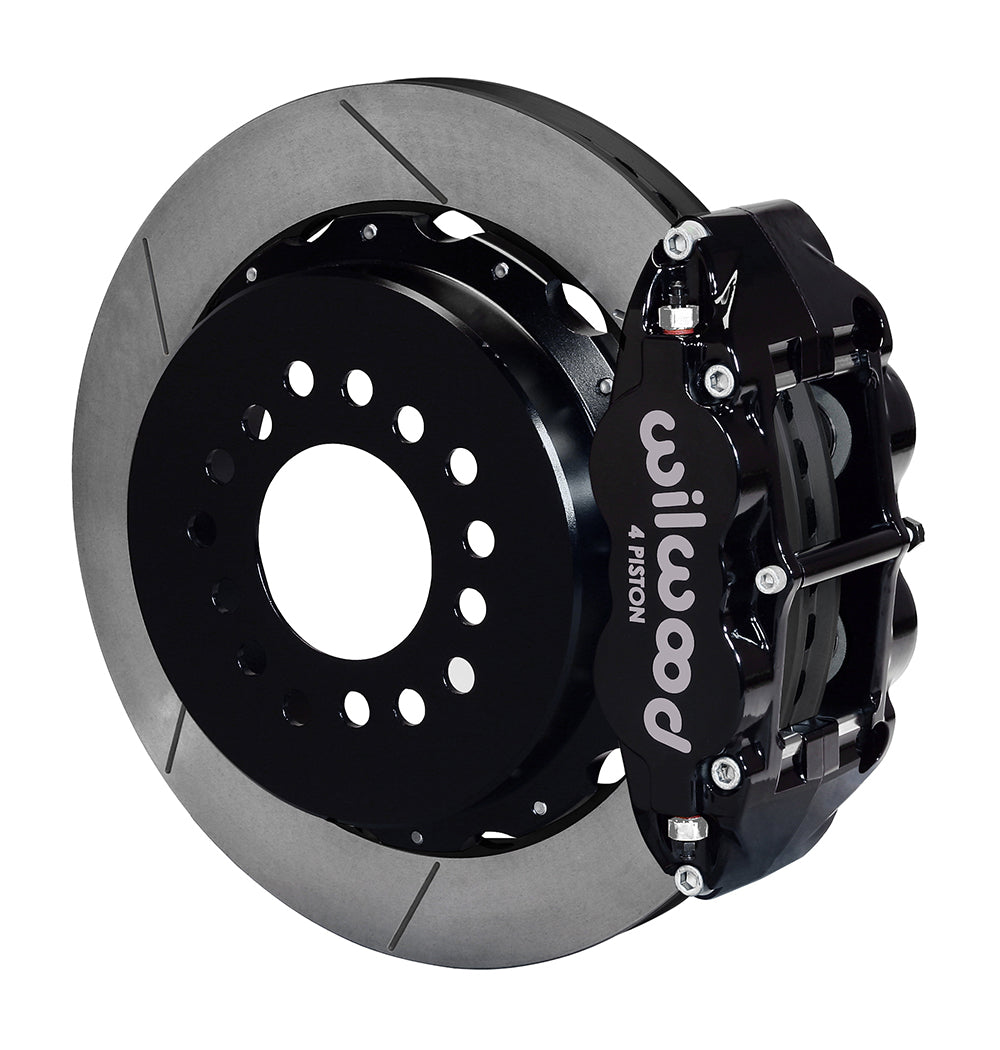

The Small Ford 2.50-inch-offset conversion pairs black Superlite calipers with GT-slotted 12.88-inch rotors. An internal drum parking mechanism is included, with the original axle retained through the documented backing-plate and retainer arrangement. Wilwood Engineering designs and manufactures the disc brake systems and components used throughout its motorsport, street-performance and specialized product range. Bill Wood established Wilwood in 1977, and the company is based in Camarillo, California. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings are selected according to the demands of the whole brake installation.

Technical Details

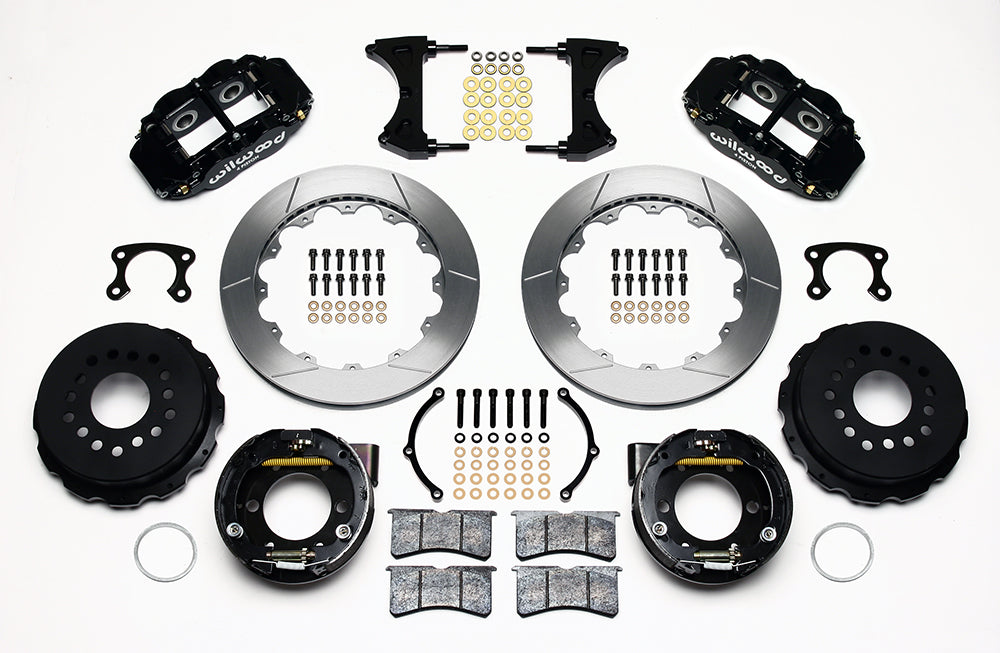

• Manufacturer part number: 140-9220
• Service calipers: 4-piston Forged Narrow Superlite 4R; Black Powder Coat; radial mounting
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Required axle offset: 2.50 inches; measure from the axle flange to the housing flange as shown in the instructions
• Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
• Hydraulic hoses: not included; match the separate lines and fittings to the application
• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit

Fitment & Compatibility

The black Small Ford GT conversion is dimensioned for a 2.50-inch axle offset. Match the bearing, housing-end pattern and retainer placement to DS530; the Town Car row alone does not prove stock fitment. The supplied parking assemblies sit behind hats with a 3.06-inch center, with 2.80-inch register adapters included. Maximum axle-flange diameter is 6.61 inches with the prescribed chamfer. Complete the system using appropriately routed hydraulic hoses and separately chosen parking-cable hardware.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.
