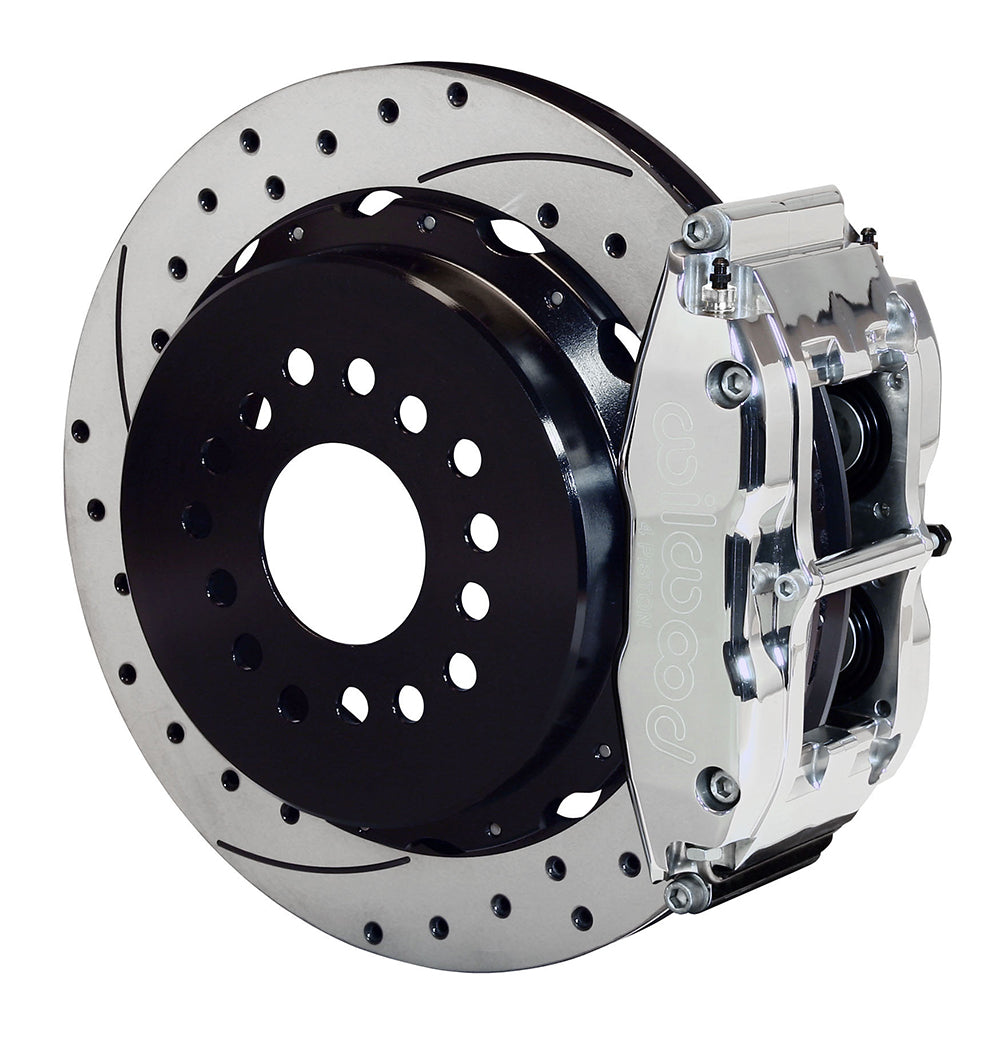

Wilwood Rear Drilled/Slotted 12.88-Inch Rotor & Polished Caliper Kit for New Big Ford Ends, 2.50-Inch Offset

This polished-caliper rear kit matches 12.88-inch SRP rotors to the new-style Big Ford housing at 2.50-inch offset. The bearing retainer, parking backing plate and axle register must all correspond to the installation drawing. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are all part of Wilwood Engineering’s range of disc brake systems and components. The Camarillo, California company was founded in 1977 by Bill Wood and designs and manufactures these products for motorsport, street-performance and specialized applications. Compatibility with the complete brake system determines the appropriate component choice.

Technical Details

• Manufacturer part number: 140-9219-DP
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Required axle offset: 2.50 inches; measure from the axle flange to the housing flange as shown in the instructions
• Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
• Hydraulic hoses: not included; match the separate lines and fittings to the application

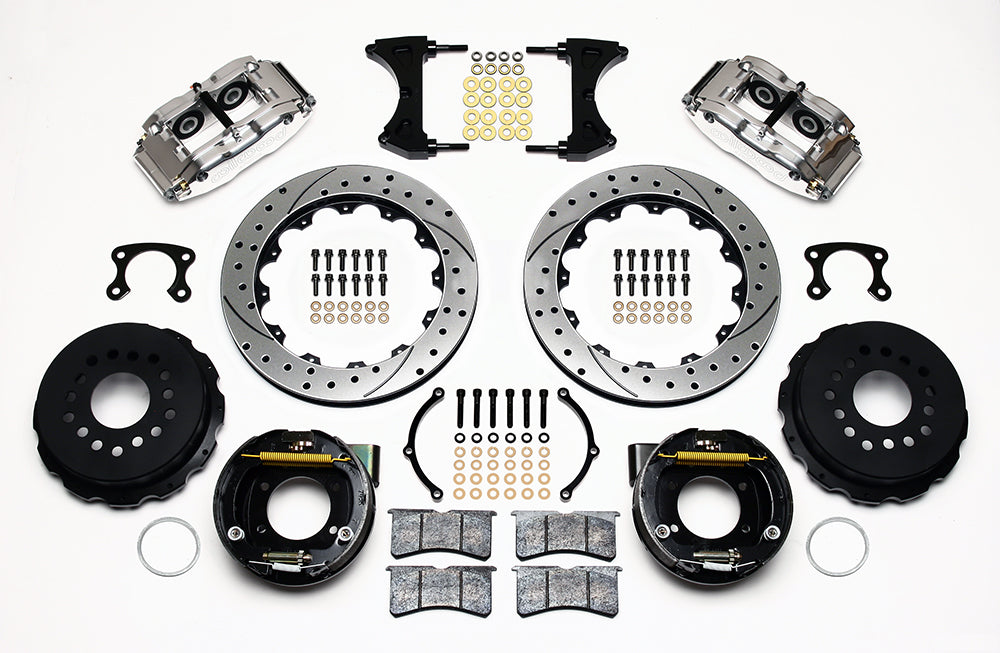

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 4-piston Forged Narrow Superlite 4R; Polish; radial mounting
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted; vented

Fitment & Compatibility

For this polished-caliper conversion, DS529 specifies new-style Big Ford ends at 2.50-inch offset with 3.15-inch bearings. That combination must be verified on the installed rear housing, including the retainer stack behind the parking backing plates. A 2.80-inch register adapter is included for the 3.06-inch hat opening. Check the required chamfer and 6.61-inch maximum axle flange before assembly. Suitable hydraulic lines and parking-cable hardware remain separate; no blanket stock Town Car compatibility is implied.

The table below gives the detailed vehicle coverage; match the individual entry and each referenced note.

Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
