Wilwood Rear New Big Ford GT & Parking Conversion at 2.36-Inch Offset, 12.88-Inch Rotors with Black Calipers

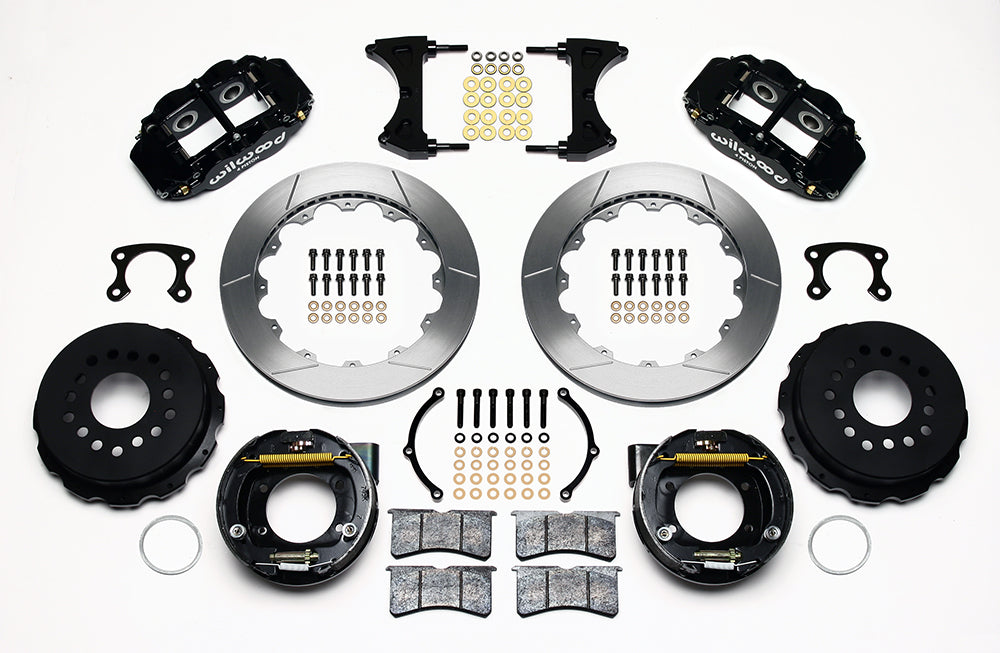

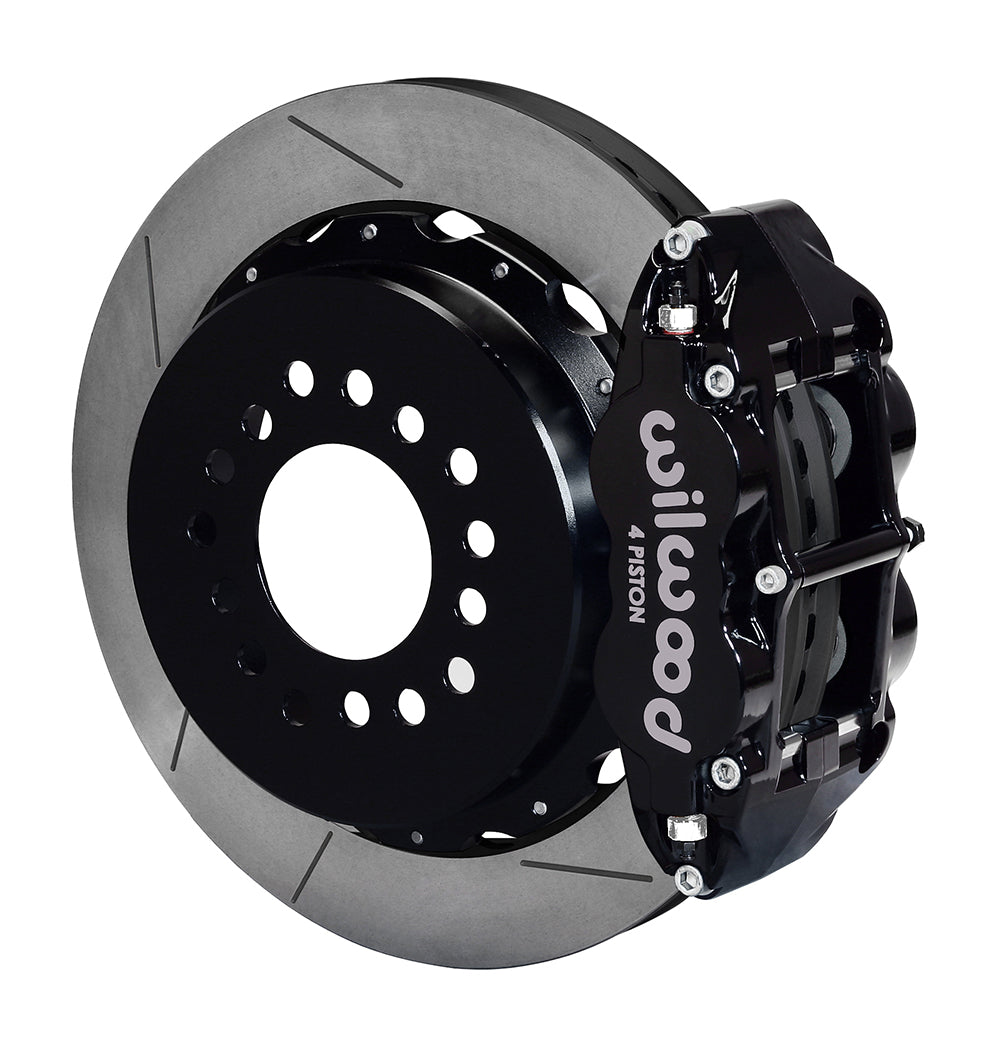

The black GT rear package is for new-style Big Ford axle ends with a 2.36-inch offset. It supplies 12.88-inch rotors, Superlite 4R calipers and the internal drum parking-brake assemblies documented in DS528. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems and components since Bill Wood founded the company in 1977. Its work spans motorsport, street-performance and specialized applications, with a product range covering master cylinders, calipers, brake rotors, valves, fittings and brake lines. These parts must be chosen for the requirements of the entire brake system.

Technical Details

• Manufacturer part number: 140-9218
• Service calipers: 4-piston Forged Narrow Superlite 4R; Black Powder Coat; radial mounting
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Required axle offset: 2.36 inches; measure from the axle flange to the housing flange as shown in the instructions
• Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
• Hydraulic hoses: not included; match the separate lines and fittings to the application
• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit

Fitment & Compatibility

The black GT package uses the new-style Big Ford end at a 2.36-inch offset. Match its mounting pattern and bearing to DS528 before fitting the supplied retainers and parking assemblies. The 1990 Town Car row does not certify the original rear end for this housing-specific conversion. The hat has a 3.06-inch center and includes a 2.80-inch register adapter. Keep axle-flange diameter within 6.61 inches with the specified chamfer. Supply suitable hydraulic lines and parking-cable/clevis hardware separately.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.
