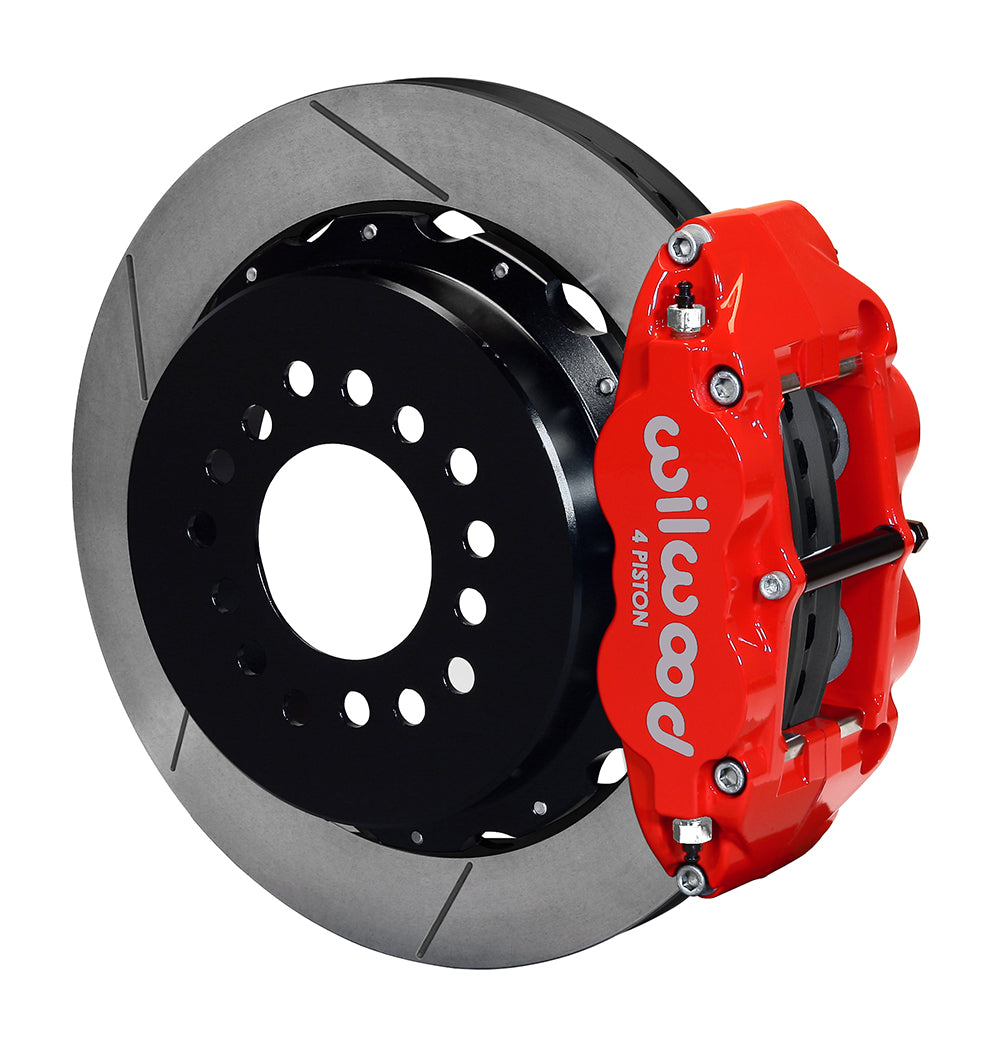

Wilwood Rear 2.36-Offset Old Big Ford Brake Kit, Red Superlites with 12.88-Inch GT Rotors & Internal Parking Brake

Red Superlite calipers are combined with GT-slotted rotors and internal parking-brake backing plates in this old-style Big Ford kit. The specified 2.36-inch axle offset sets rotor alignment, while the hat register must match the axle or its supplied adapter. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded by Bill Wood in 1977, the company also produces the individual calipers, brake rotors, master cylinders, valves, fittings and brake lines used in these installations. Selection should account for how each component works within the complete brake system.

Technical Details

• Manufacturer part number: 140-9217-R
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Required axle offset: 2.36 inches; measure from the axle flange to the housing flange as shown in the instructions
• Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
• Hydraulic hoses: not included; match the separate lines and fittings to the application

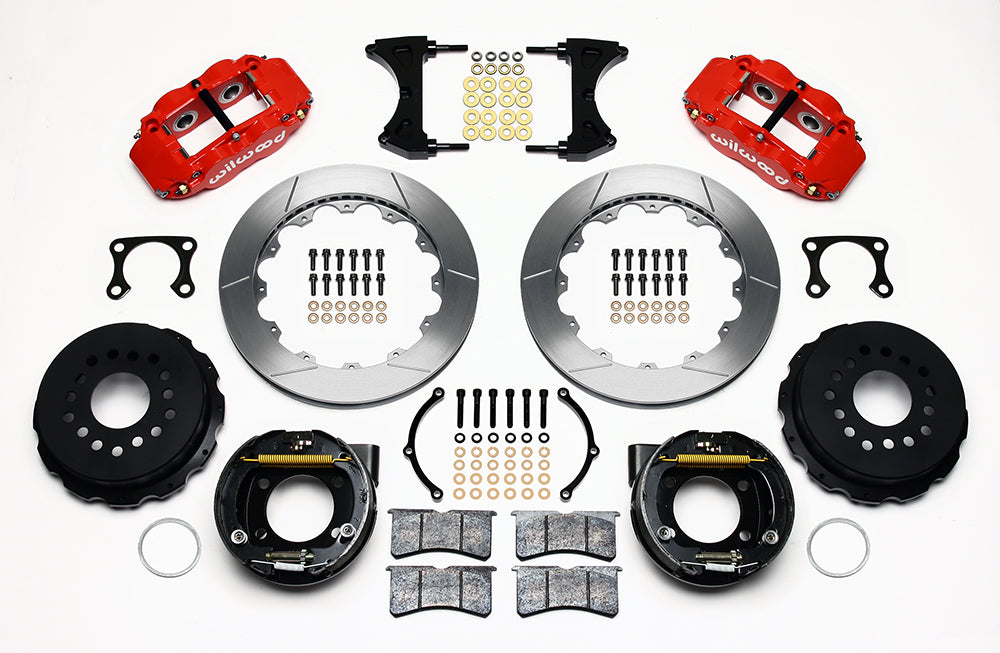

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 4-piston Forged Narrow Superlite 4R; Red Powder Coat; radial mounting

Fitment & Compatibility

A slotted rotor and red caliper do not change the old-style Big Ford geometry: this kit requires 2.36-inch offset. Compare the bearing-retainer stack and housing-end mounting holes with DS527. The original model entry is only a starting point for a converted rear axle. Verify the 6.61-inch flange/chamfer clearance and center the hat at 3.06 inches, or 2.80 inches using the included adapter. Parking backing plates are supplied; the hydraulic hoses and cable operating connections are selected separately.

Check the full application table below, including its model-year splits and brake-configuration requirements.

Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
