Wilwood Rear Polished Superlite Parking Kit, Old Big Ford at 2.36-Inch Offset, Drilled/Slotted 12.88-Inch Rotors

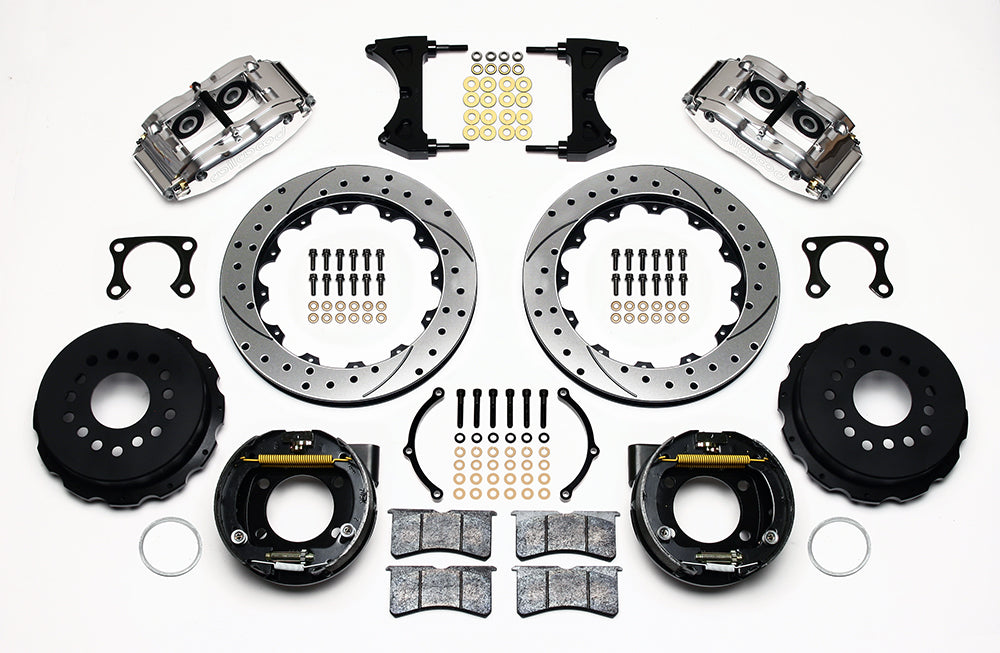

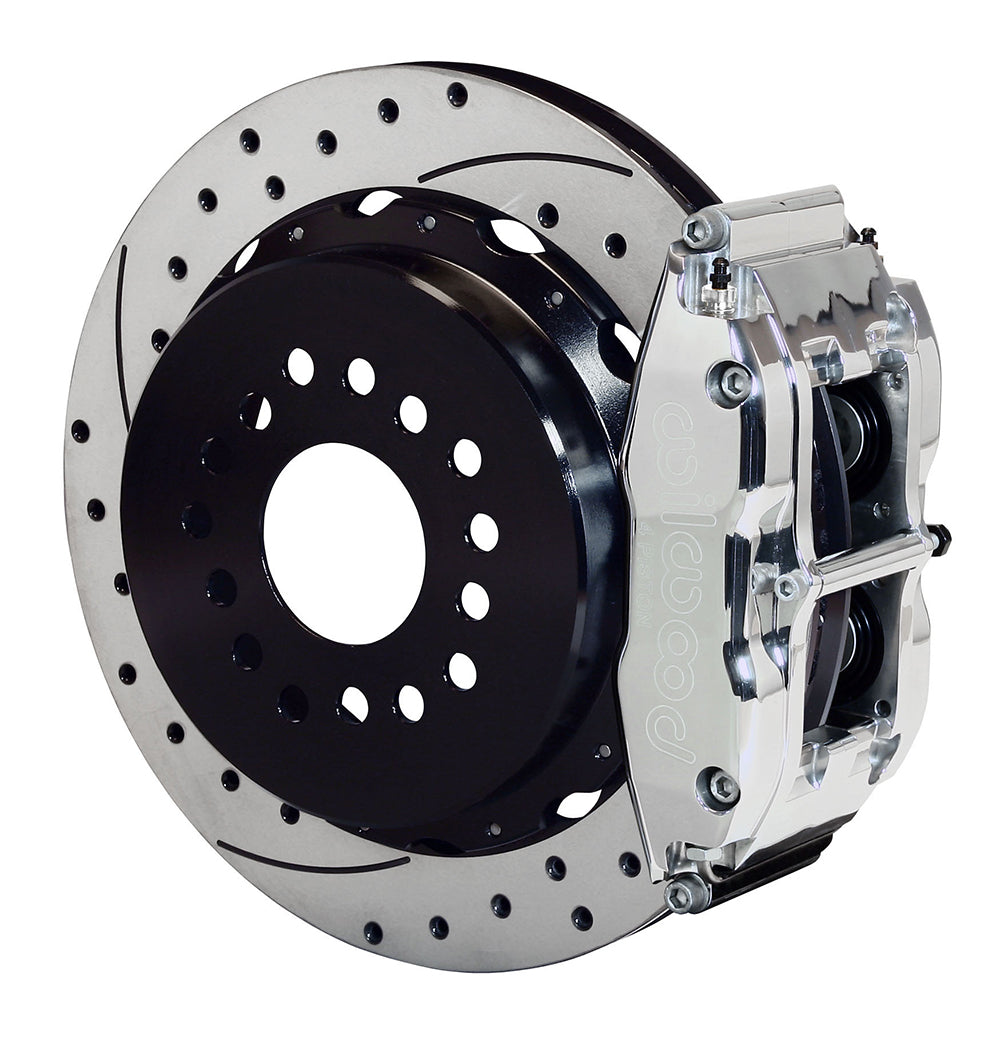

Polished Superlite calipers distinguish this old-style Big Ford SRP conversion. The 12.88-inch rotors and internal parking drums work with the specified 2.36-inch axle offset and the supplied bearing-retainer arrangement. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. It designs and manufactures disc brake components and complete systems, from calipers and brake rotors to valves, master cylinders, fittings and brake lines. Motorsport, street-performance and specialized installations each require those components to be matched to the complete brake system.

Technical Details

• Manufacturer part number: 140-9217-DP
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Required axle offset: 2.36 inches; measure from the axle flange to the housing flange as shown in the instructions
• Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
• Hydraulic hoses: not included; match the separate lines and fittings to the application
• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 4-piston Forged Narrow Superlite 4R; Polish; radial mounting
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted; vented

Fitment & Compatibility

Polished calipers retain the same old-style Big Ford installation requirements: a 2.36-inch measured offset and the bearing/flange layout in DS527. Check the 6.61-inch axle-flange limit and drawing-specified chamfer before trying the rotor hat. Its 3.06-inch bore accepts the supplied 2.80-inch register adapter where needed. Install the included bearing retainers and parking backing plates as a matched assembly. Cable hardware and hoses are separate, and the table's Town Car entry must not be taken as proof of an unchanged factory axle fit.

The table below gives the detailed vehicle coverage; match the individual entry and each referenced note.

Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.
