Product details
This old-style Big Ford rear package uses black Superlite calipers with 12.88-inch GT-slotted rotors. It includes internal parking-brake assemblies and bearing retainers for the documented housing flange at 2.36-inch offset. Wilwood Engineering’s disc brake systems and components serve motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California. Wilwood designs and manufactures brake rotors and calipers as well as master cylinders, valves, brake lines and fittings. Selecting compatible components is essential to the complete system.
Technical Details
- Manufacturer part number: 140-9217
- Service calipers: 4-piston Forged Narrow Superlite 4R; Black Powder Coat; radial mounting
- Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; GT Slotted; vented
- Included pad compound: BP-10; pistons: stainless steel
- Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
- Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
- Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
- Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
- Required axle offset: 2.36 inches; measure from the axle flange to the housing flange as shown in the instructions
- Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
- Hydraulic hoses: not included; match the separate lines and fittings to the application

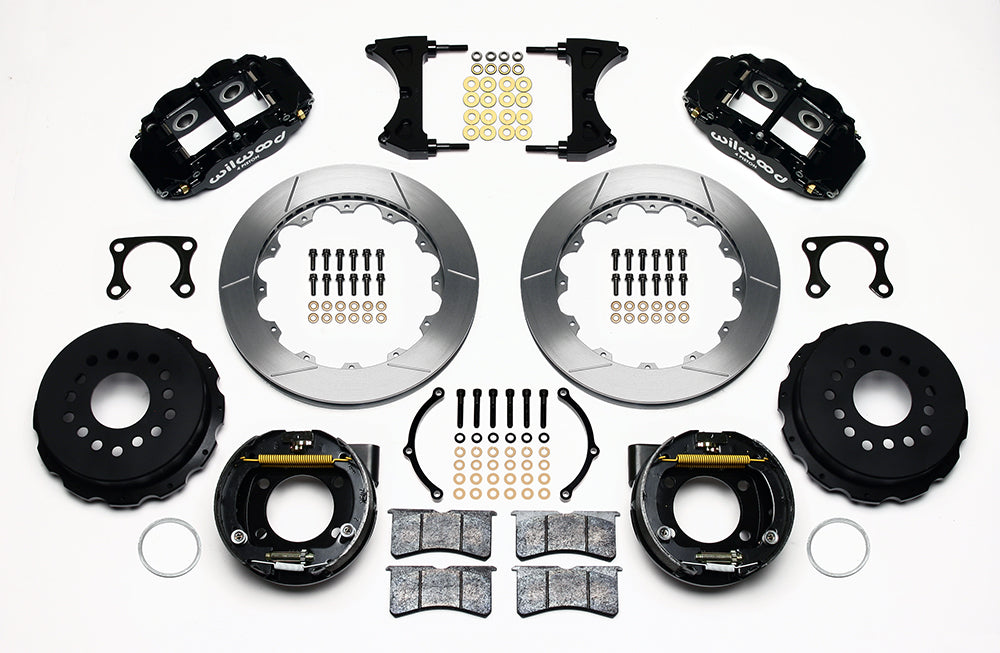

- Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
- Not included: master cylinder and brake booster
- Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
- Quantity: sold as one axle kit
Fitment & Compatibility
This black GT assembly uses the old-style Big Ford housing end, with the rotor plane set by a 2.36-inch axle offset. DS527 governs bearing retention and the bolt pattern; the generic Town Car row is insufficient to identify the axle. Parking backing plates and retainers are supplied. Their clearance depends on a correctly chamfered axle flange no larger than 6.61 inches. Match the register to the 3.06-inch hat or its included 2.80-inch ring. Hydraulic lines and parking-cable attachments must be obtained separately.
Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.
Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.
Manufacturer Resources
- Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
- Axle-offset measurement worksheet
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1 |
Application Notes
- Line kit included (manufacturer): None
