Wilwood Rear Red Superlite GT Kit, 2.66-Inch-Offset Small Ford Housing, 12.88-Inch Rotors

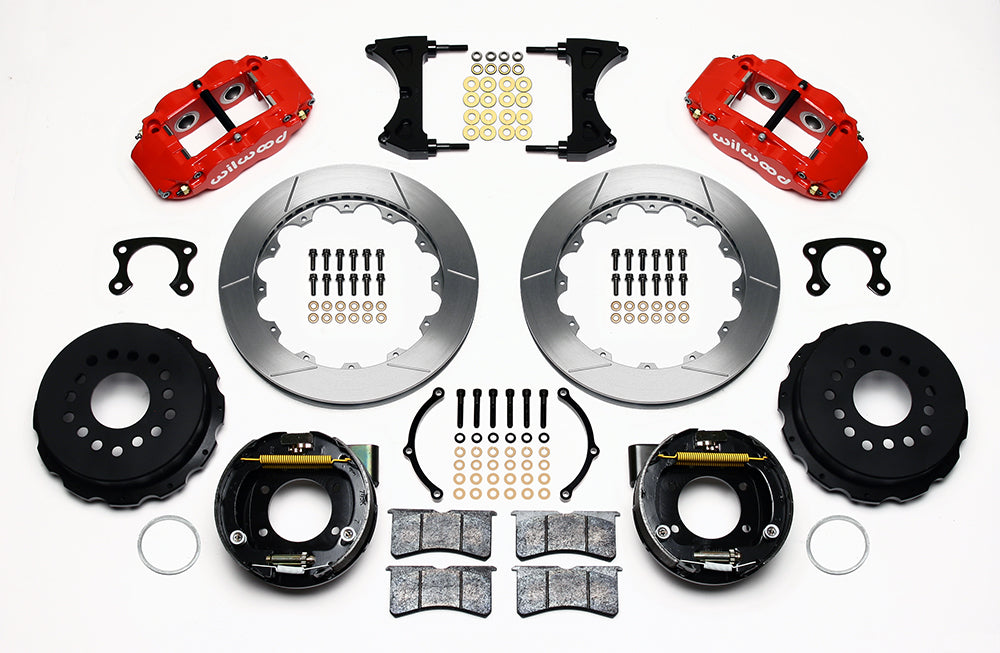

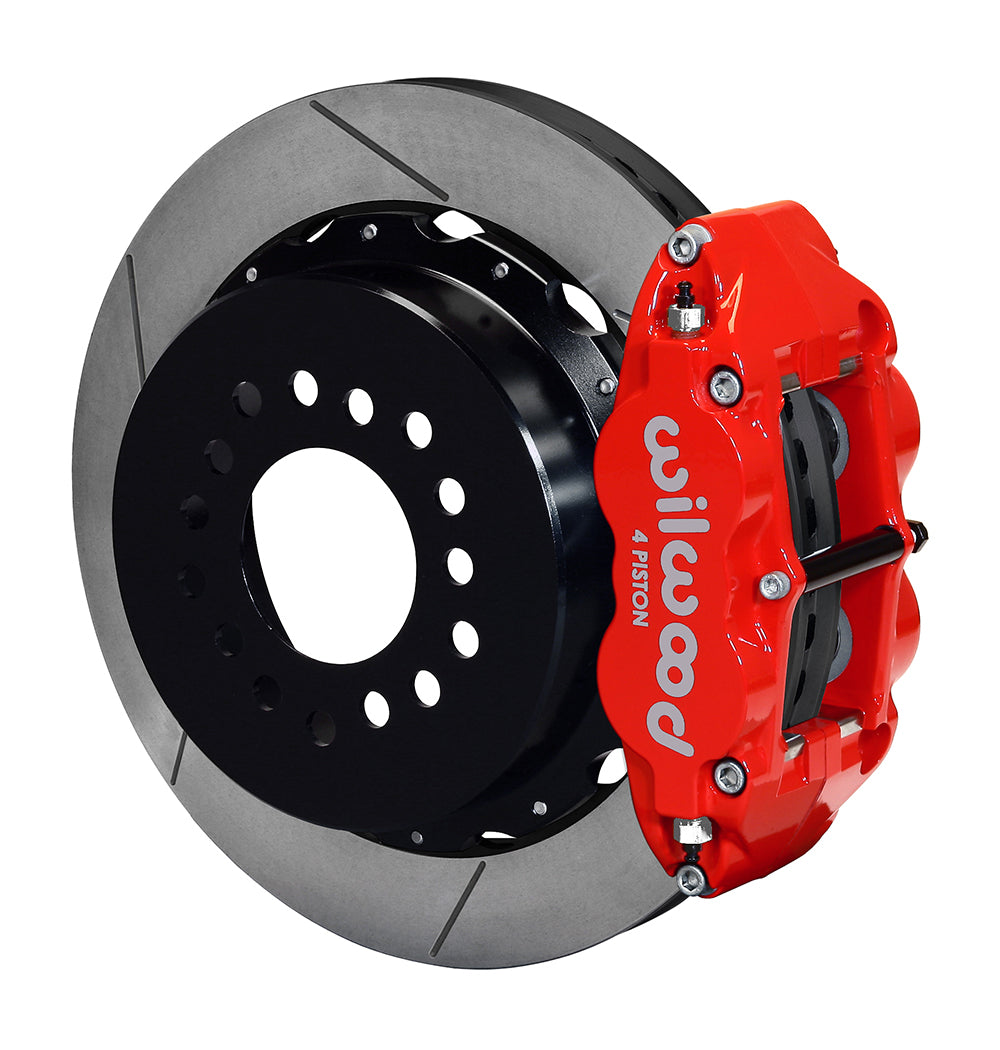

The GT-slotted rotor version brings red Superlite calipers to the documented Small Ford axle-end arrangement. Its supplied parking backing plates and bearing retainers are installed only after confirming the required 2.66-inch axle offset. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. It designs and manufactures disc brake components and complete systems, from calipers and brake rotors to valves, master cylinders, fittings and brake lines. Motorsport, street-performance and specialized installations each require those components to be matched to the complete brake system.

Technical Details

• Manufacturer part number: 140-9216-R
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Required axle offset: 2.66 inches; measure from the axle flange to the housing flange as shown in the instructions
• Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
• Hydraulic hoses: not included; match the separate lines and fittings to the application
• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 4-piston Forged Narrow Superlite 4R; Red Powder Coat; radial mounting
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel

Fitment & Compatibility

For the red GT kit, the required rear hardware is the Small Ford housing end at 2.66-inch offset. Confirm it against DS526 even when the vehicle appears in the table. Retainer placement, the bearing diameter and the mounting pattern must all match. The supplied 2.80-inch adapter centers the 3.06-inch hat on the corresponding axle register; the flange itself must meet the 6.61-inch diameter and chamfer restriction. Complete the installation with suitable separate hydraulic lines and parking cables, such as the adaptable 330-9371 arrangement.

Review the complete fitment table below before purchase, retaining the restrictions attached to the chosen vehicle.

Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.
