Wilwood Rear Black 12.88-Inch SRP Conversion for Small Ford Axle Ends with 2.66-Inch Offset

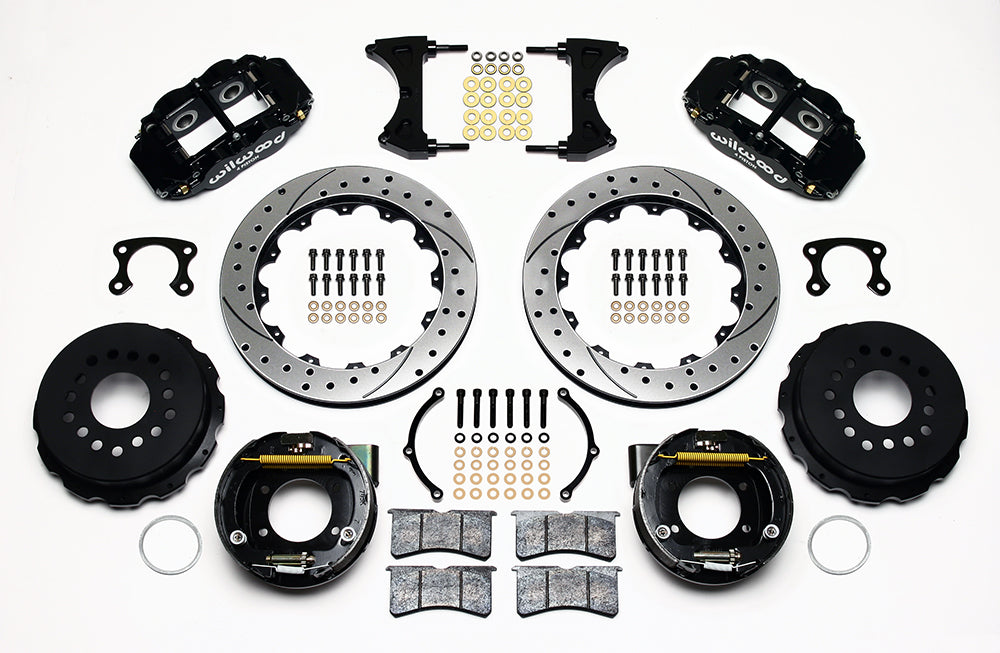

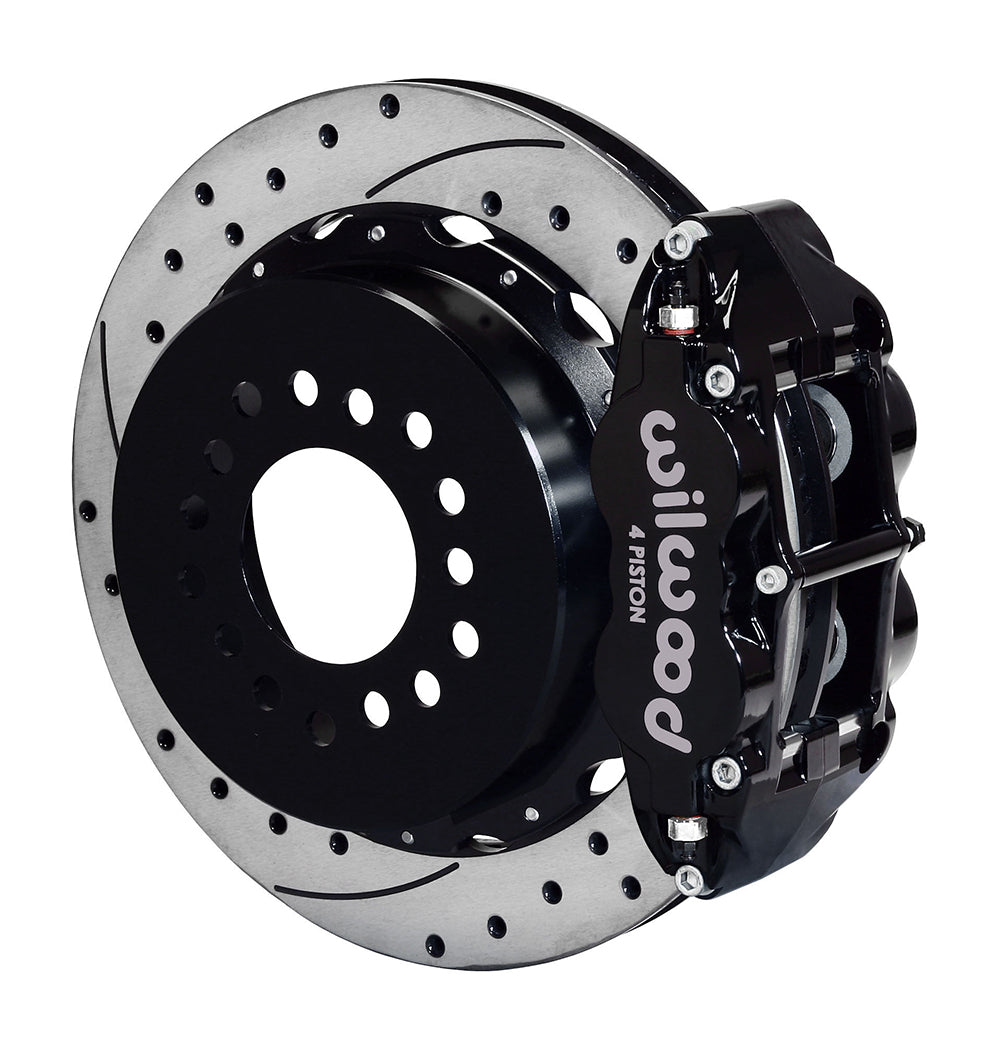

Black Superlite calipers and SRP rotors provide the hydraulic braking components for this Small Ford conversion. The kit's 2.66-inch offset requirement and bearing-retainer arrangement must match the installed rear housing before the parking assemblies are fitted. Wilwood Engineering’s disc brake systems and components serve motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California. Wilwood designs and manufactures brake rotors and calipers as well as master cylinders, valves, brake lines and fittings. Selecting compatible components is essential to the complete system.

Technical Details

• Manufacturer part number: 140-9216-D
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Required axle offset: 2.66 inches; measure from the axle flange to the housing flange as shown in the instructions
• Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
• Hydraulic hoses: not included; match the separate lines and fittings to the application
• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 4-piston Forged Narrow Superlite 4R; Black Powder Coat; radial mounting

Fitment & Compatibility

The drilled/slotted Small Ford package requires the housing-end pattern and bearing arrangement in DS526, together with 2.66 inches of axle offset. Inspect the bearing-retainer stack before assembling the parking backing plates. The 6.61-inch maximum axle flange needs the drawing's chamfer, and rotor centering uses either the 3.06-inch hat bore or supplied 2.80-inch adapter. Choose separate hydraulic plumbing and suitable parking-cable hardware. The Town Car entry is conditional on matching installed hardware, not an assurance of stock fitment.

Check the full application table below, including its model-year splits and brake-configuration requirements.

Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
