Wilwood Rear Small Ford GT Brake & Parking Kit, Black Calipers, 12.88-Inch Rotors — 2.66-Inch Offset

This black-caliper rear kit combines 12.88-inch GT rotors with internal parking-brake assemblies for Small Ford axle ends. A 2.66-inch measured offset is essential to align the service rotors with the radial-mount Superlite calipers. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines as part of its disc brake systems and component range for motorsport, street-performance and specialized applications. Each component must suit the requirements of the complete brake installation.

Technical Details

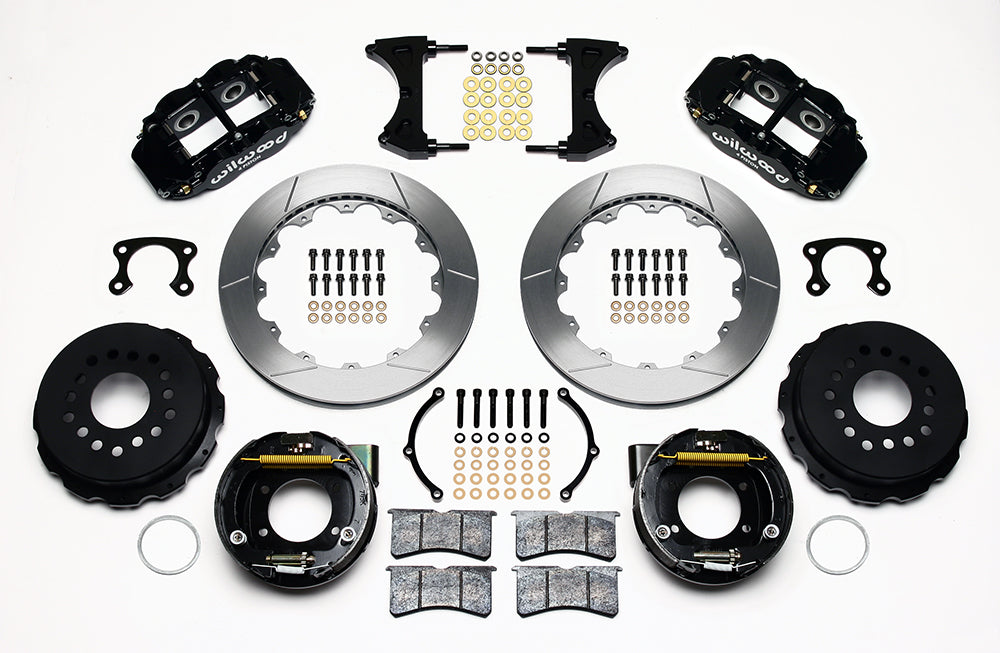

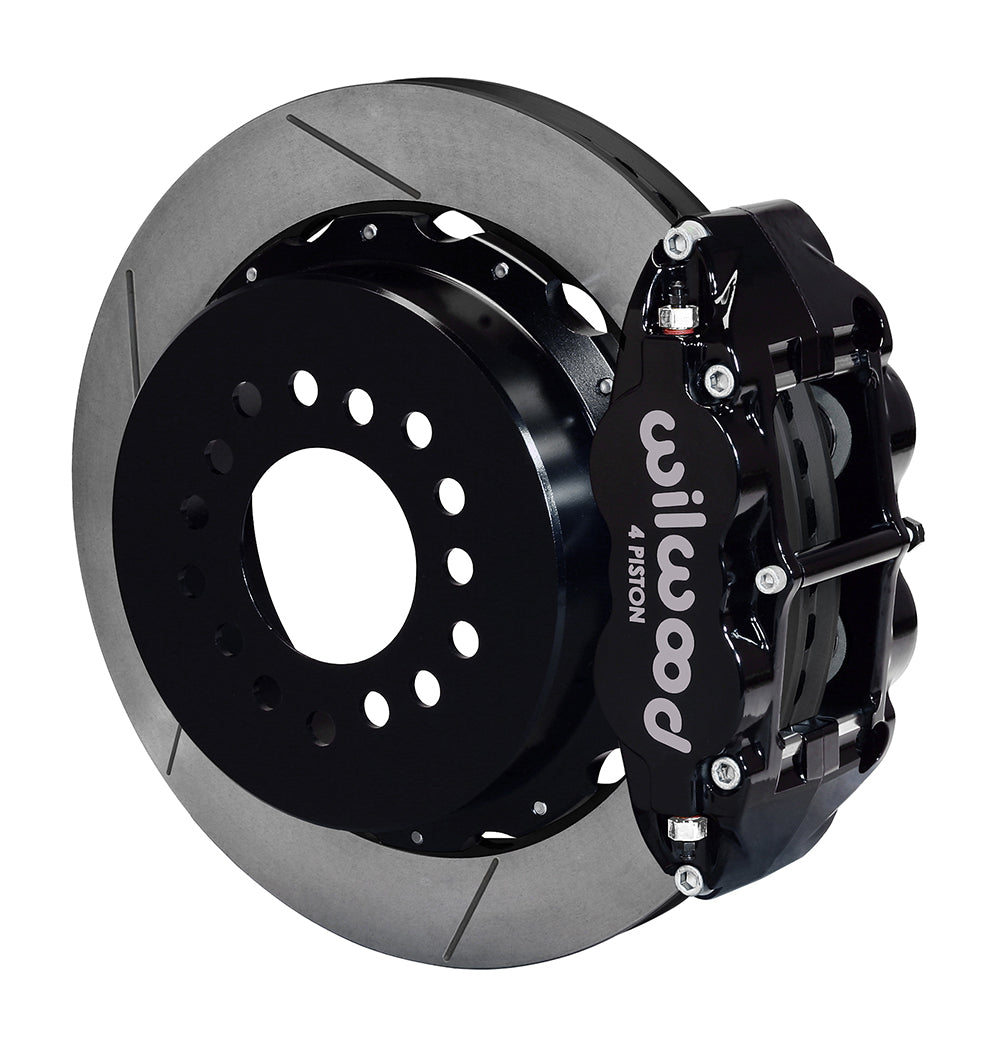

• Manufacturer part number: 140-9216
• Service calipers: 4-piston Forged Narrow Superlite 4R; Black Powder Coat; radial mounting
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Required axle offset: 2.66 inches; measure from the axle flange to the housing flange as shown in the instructions
• Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
• Hydraulic hoses: not included; match the separate lines and fittings to the application
• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit

Fitment & Compatibility

Select the Small Ford flange only after measuring a 2.66-inch axle offset. DS526 gives the required bearing and mounting geometry; a 1990 Town Car model entry does not prove that the original rear end matches. The hat center is 3.06 inches and a 2.80-inch register ring is supplied. Keep the axle flange within the 6.61-inch limit and specified chamfer. The parking backing plates and bearing retainers are included, but hydraulic hoses and cable/clevis connections are separate; universal cable kit 330-9371 must be routed for the actual vehicle.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.
