Wilwood Rear Red Superlite Parking-Brake Conversion — Special 3.15-Bearing Chevy Axle, 2.81 Offset, 12.88-Inch SRP Rotors

Red Superlite calipers are matched to drilled/slotted rotors in this housing-specific rear conversion. The special 12-bolt flange, 3.15-inch bearing and 2.81-inch offset determine compatibility with the supplied retainers and parking assemblies. Wilwood Engineering’s disc brake systems and components serve motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California. Wilwood designs and manufactures brake rotors and calipers as well as master cylinders, valves, brake lines and fittings. Selecting compatible components is essential to the complete system.

Technical Details

• Manufacturer part number: 140-9215-DR
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Required axle offset: 2.81 inches; measure from the axle flange to the housing flange as shown in the instructions
• Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
• Hydraulic hoses: not included; match the separate lines and fittings to the application

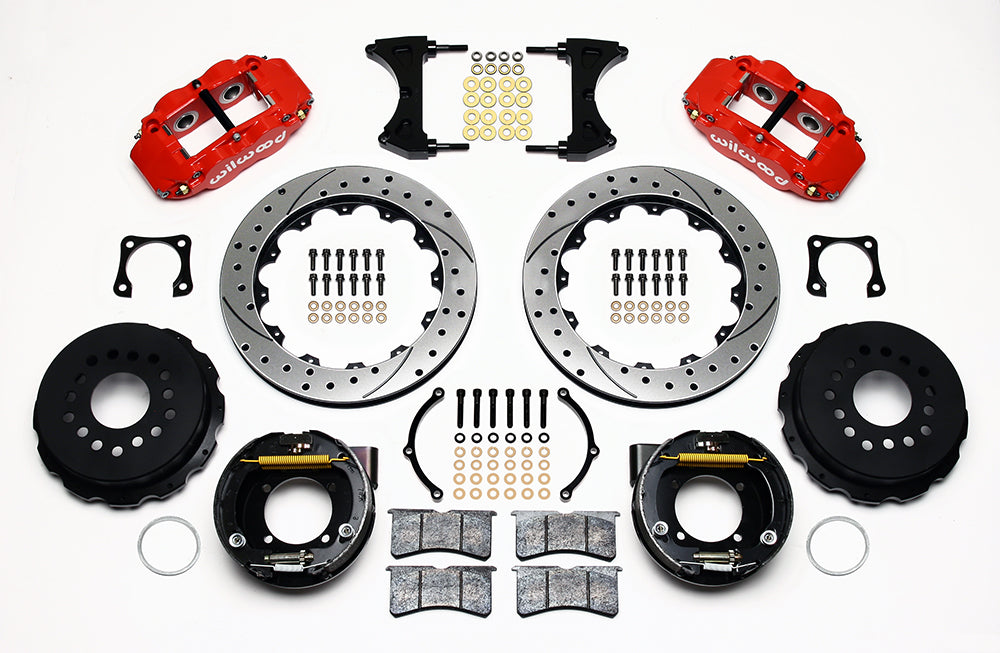

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit

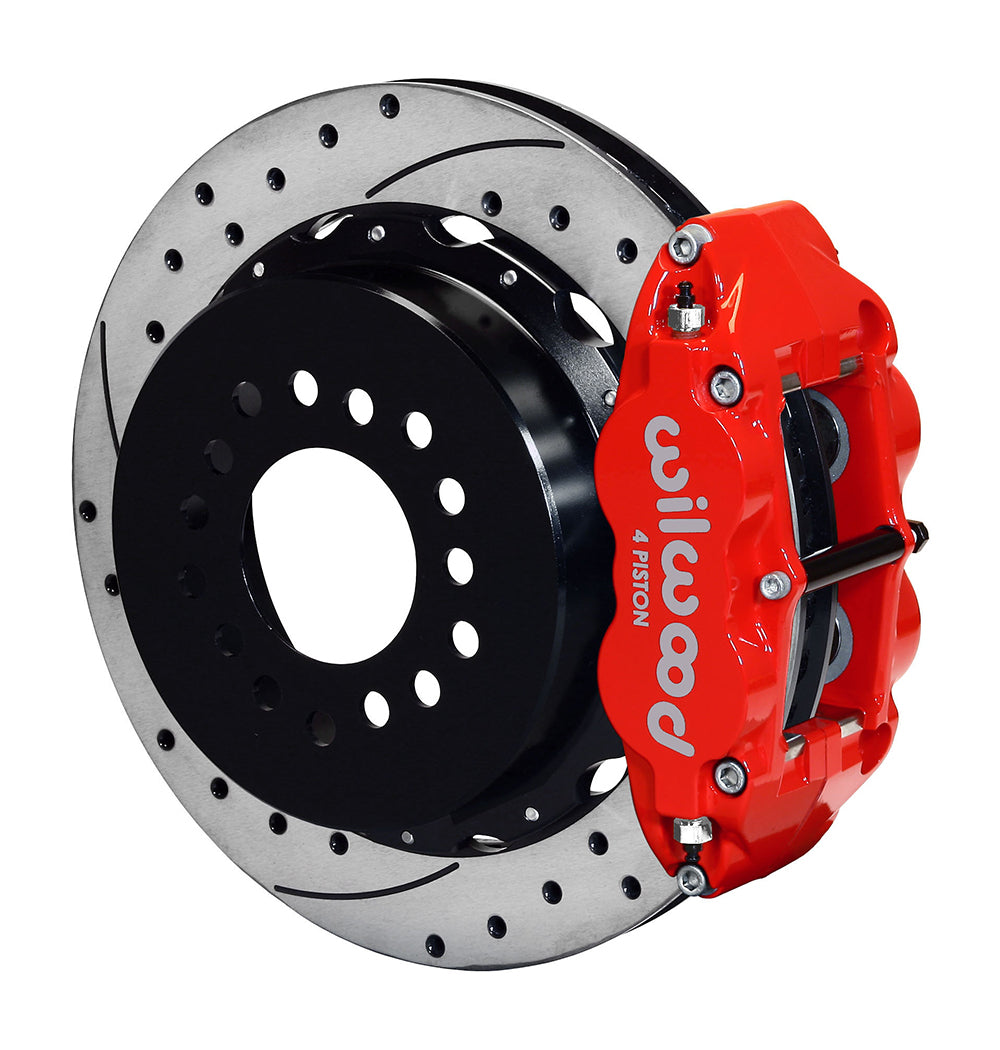

• Service calipers: 4-piston Forged Narrow Superlite 4R; Red Powder Coat; radial mounting
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted; vented

Fitment & Compatibility

For the specialty Chevrolet 12-bolt rear housing with the specified 3.15-inch bearing and 2.81-inch axle offset. This retained-bearing configuration is distinct from a factory C-clip axle. Treat the listed vehicle names as conditional applications: the installed housing flange and bearing arrangement must match DS525.

The supplied bearing retainers are fitted with the parking-brake backing-plate assemblies. Verify the 2.80-inch register/adaptor arrangement and 6.61-inch maximum axle flange with the required chamfer. Hydraulic plumbing and parking-cable hardware are not supplied; select them for the completed vehicle.

The table below gives the detailed vehicle coverage; match the individual entry and each referenced note.

Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
2. Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
3. Line kit included (manufacturer): None
