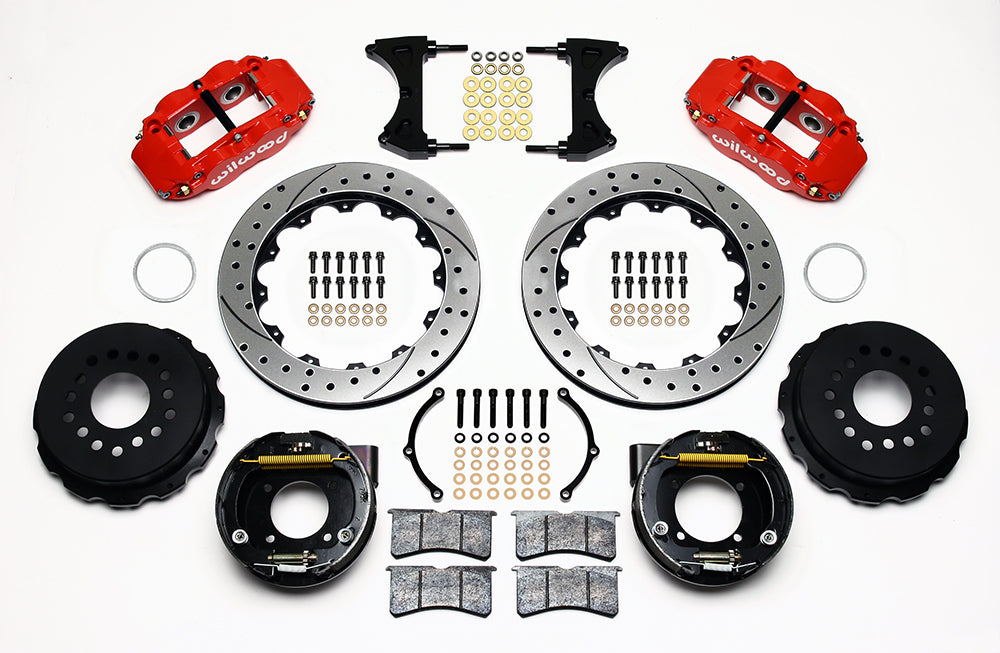

Wilwood rear Superlite 4R kit for Chevy 12-Bolt Factory C-Clip Axles, 2.81-Inch Offset, red calipers and 12.88-inch srp drilled and slotted rotors laid out, with internal parking-brake assemblies

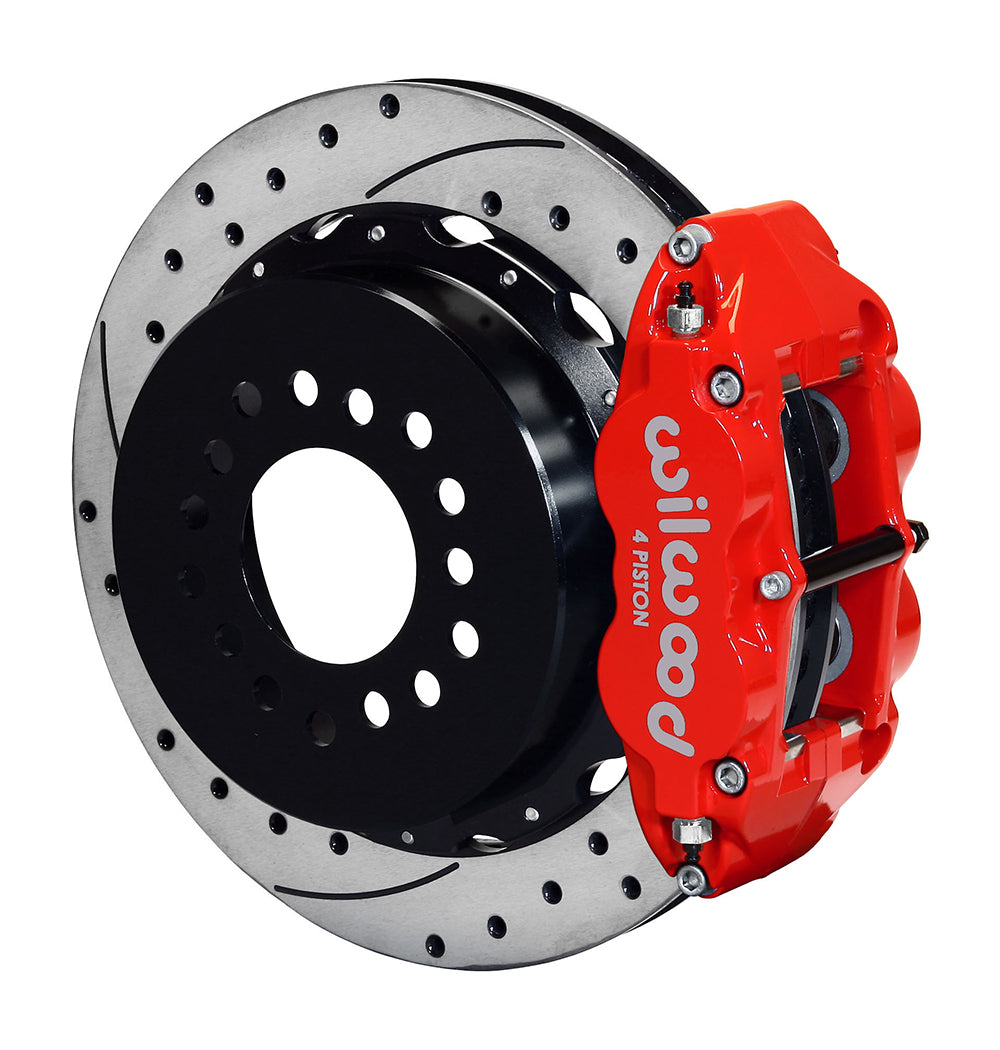

Wilwood red Superlite 4R caliper and 12.88-inch srp drilled and slotted rotor for Chevy 12-Bolt Factory C-Clip Axles, 2.81-Inch Offset, assembled rear view
Wilwood rear Superlite 4R kit for Chevy 12-Bolt Factory C-Clip Axles, 2.81-Inch Offset, red calipers and 12.88-inch srp drilled and slotted rotors laid out, with internal parking-brake assemblies
Wilwood red Superlite 4R caliper and 12.88-inch srp drilled and slotted rotor for Chevy 12-Bolt Factory C-Clip Axles, 2.81-Inch Offset, assembled rear view

Wilwood Rear 12.88-Inch Drilled/Slotted 12-Bolt Kit with Red Superlites — OE C-Clip Axles, 2.81-Inch Offset

SKU: 140-9213-DR

$2,216.93 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red Superlite 4R calipers and drilled/slotted rotors make up the service-brake portion of this 12-bolt conversion. The 2.81-inch axle offset and factory C-clip housing pattern must match before the included parking-brake backing plates can be installed. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines as part of its disc brake systems and component range for motorsport, street-performance and specialized applications. Each component must suit the requirements of the complete brake installation.

Technical Details

  • Manufacturer part number: 140-9213-DR
  • Included pad compound: BP-10; pistons: stainless steel
  • Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
  • Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
  • Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
  • Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
  • Required axle offset: 2.81 inches; measure from the axle flange to the housing flange as shown in the instructions
  • Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
  • Hydraulic hoses: not included; match the separate lines and fittings to the application
  • Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
  • Not included: master cylinder and brake booster
  • Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
  • Quantity: sold as one axle kit
  • Service calipers: 4-piston Forged Narrow Superlite 4R; Red Powder Coat; radial mounting
  • Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted; vented

Fitment & Compatibility

Select this kit by the Chevrolet 12-bolt factory C-clip axle arrangement and 2.81-inch measured offset. It is not the special 3.15-inch-bearing or C-clip-eliminator package. The GM vehicle entries below are conditional on the installed rear housing; a front-spindle description does not establish rear-axle compatibility.

Measure the flange pattern, register and axle offset using DS523 and the worksheet. The maximum axle-flange diameter is 6.61 inches with the specified chamfer. Hydraulic lines and parking-cable/clevis hardware are separate; universal cable kit 330-9371 is an option requiring installation-specific routing.

The table below gives the detailed vehicle coverage; match the individual entry and each referenced note.

Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.
