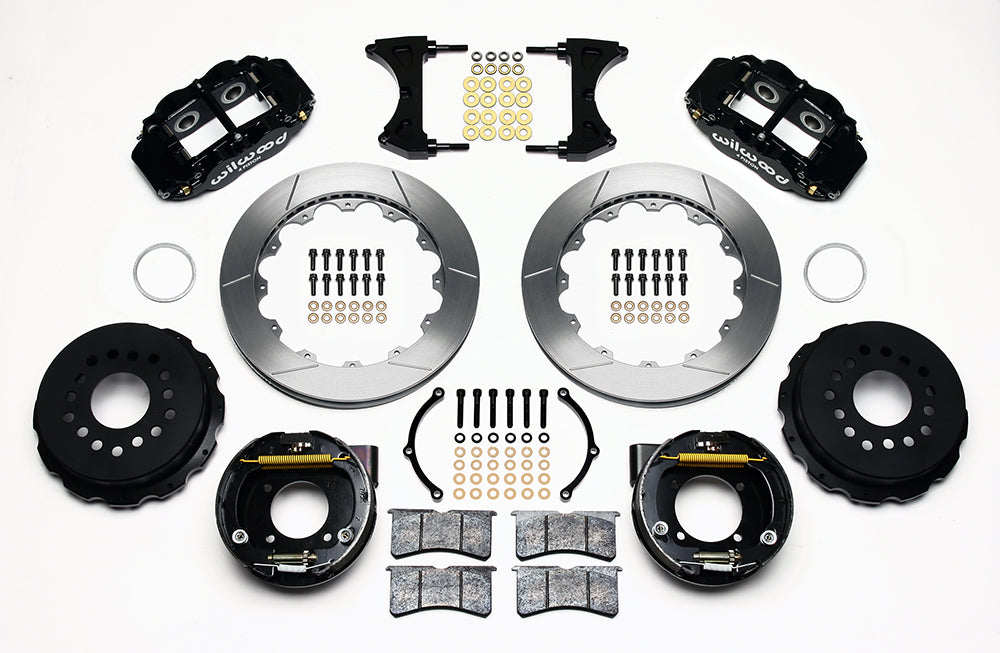

Wilwood rear Superlite 4R kit for Chevy 12-Bolt Factory C-Clip Axles, 2.81-Inch Offset, black calipers and 12.88-inch gt slotted rotors laid out, with internal parking-brake assemblies

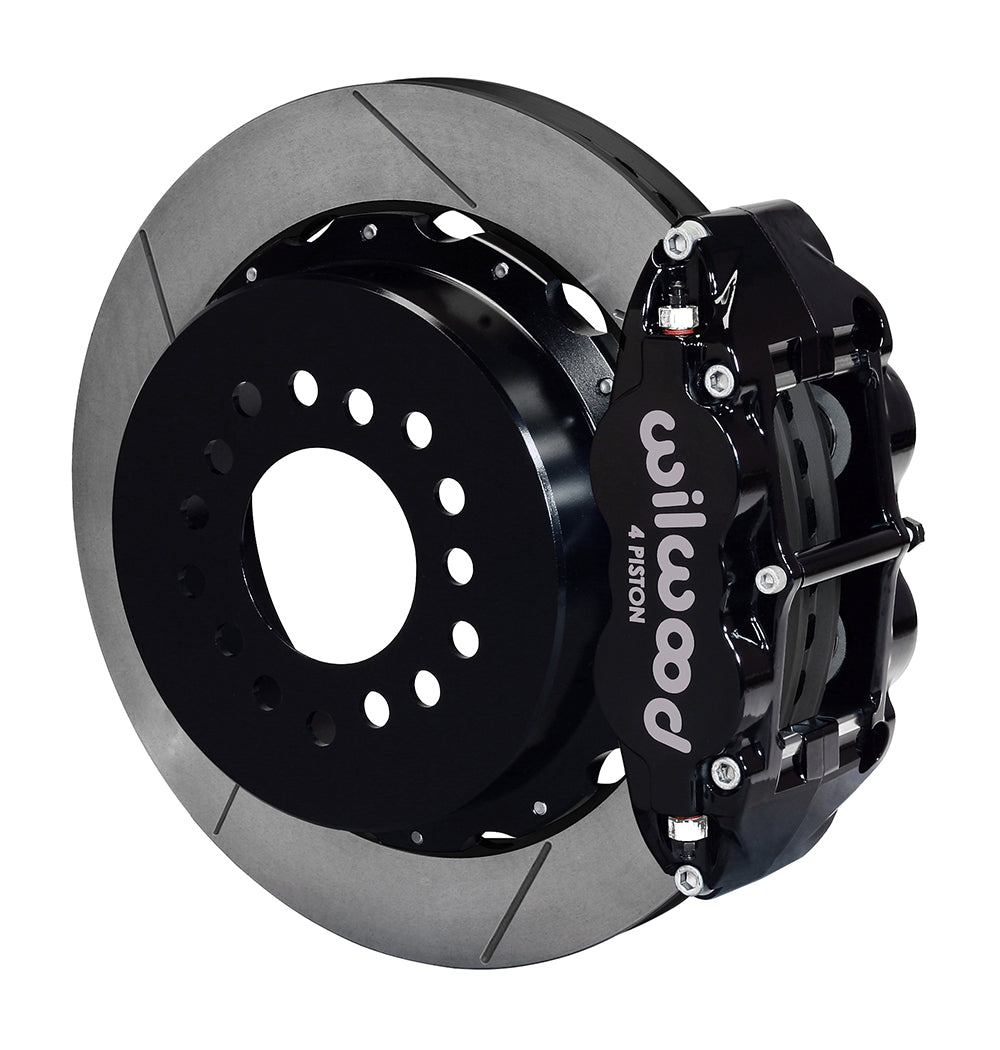

Wilwood black Superlite 4R caliper and 12.88-inch gt slotted rotor for Chevy 12-Bolt Factory C-Clip Axles, 2.81-Inch Offset, assembled rear view
Wilwood rear Superlite 4R kit for Chevy 12-Bolt Factory C-Clip Axles, 2.81-Inch Offset, black calipers and 12.88-inch gt slotted rotors laid out, with internal parking-brake assemblies
Wilwood black Superlite 4R caliper and 12.88-inch gt slotted rotor for Chevy 12-Bolt Factory C-Clip Axles, 2.81-Inch Offset, assembled rear view

Wilwood Rear Chevy 12-Bolt C-Clip GT Conversion, 2.81-Inch Offset — Black Superlite Calipers & 12.88-Inch Rotors

SKU: 140-9213

$2,216.93 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This black Superlite rear conversion is built for the Chevrolet 12-bolt factory C-clip axle at 2.81-inch offset. GT-slotted 12.88-inch rotors provide the service-brake surface, with a separate internal drum assembly for the mechanical parking brake. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded by Bill Wood in 1977, the company also produces the individual calipers, brake rotors, master cylinders, valves, fittings and brake lines used in these installations. Selection should account for how each component works within the complete brake system.

Technical Details

  • Manufacturer part number: 140-9213
  • Service calipers: 4-piston Forged Narrow Superlite 4R; Black Powder Coat; radial mounting
  • Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; GT Slotted; vented
  • Included pad compound: BP-10; pistons: stainless steel
  • Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
  • Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
  • Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; the existing hub/axle pattern is retained
  • Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
  • Required axle offset: 2.81 inches; measure from the axle flange to the housing flange as shown in the instructions
  • Parking brake: internal drum/shoe assemblies included; cable, clevis and control hardware are separate
  • Hydraulic hoses: not included; match the separate lines and fittings to the application
  • Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
  • Not included: master cylinder and brake booster
  • Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
  • Quantity: sold as one axle kit

Fitment & Compatibility

Select this kit by the Chevrolet 12-bolt factory C-clip axle arrangement and 2.81-inch measured offset. It is not the special 3.15-inch-bearing or C-clip-eliminator package. The GM vehicle entries below are conditional on the installed rear housing; a front-spindle description does not establish rear-axle compatibility.

Measure the flange pattern, register and axle offset using DS523 and the worksheet. The maximum axle-flange diameter is 6.61 inches with the specified chamfer. Hydraulic lines and parking-cable/clevis hardware are separate; universal cable kit 330-9371 is an option requiring installation-specific routing.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Adjust and test the mechanical parking brake as directed. Cable routing, tension and shoe adjustment affect its holding ability; do not rely on an untested parking brake alone to secure the vehicle on a slope.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1964-1968 Chevrolet Chevelle w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1964-1969 Chevrolet Chevelle w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4
1964 Oldsmobile 442 w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1964-1969 Pontiac Beaumont w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1964-1969 Pontiac Beaumont w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4
1967-1969 Chevrolet Camaro w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1967-1969 Chevrolet Camaro w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4
1970 Oldsmobile 442 w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4
1973-1974 Buick Apollo w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4
1973-1974 Buick Apollo w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4

Application Notes

  1. For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications
  2. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  3. Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
  4. Line kit included (manufacturer): None
