Wilwood Front Subaru GT Brake Kit — Selected Forester (2001–2011), Legacy/Outback (2000–2002), WRX/WRX STI (2013–2021) and Impreza (1999–2016); Red Calipers, 12-Inch Rotors

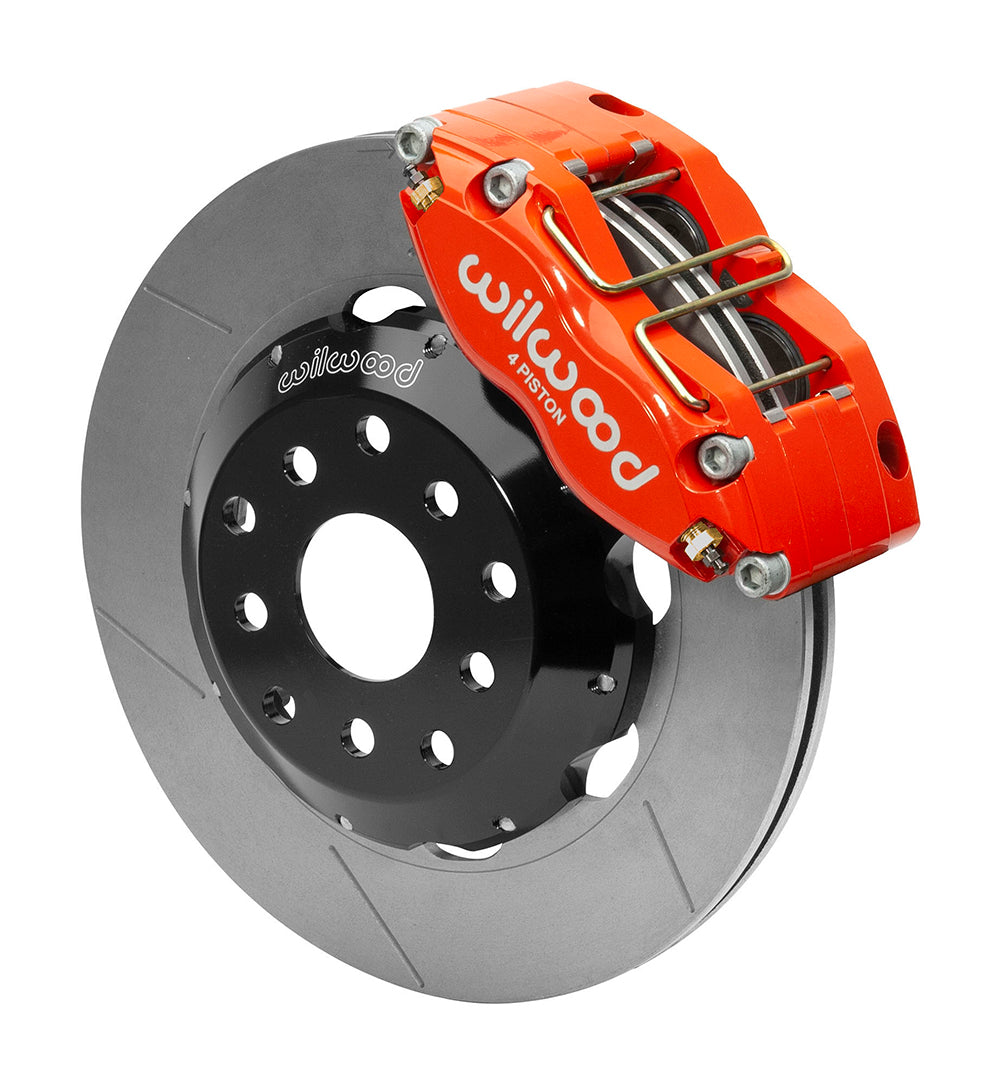

This GT-slotted Subaru package combines red four-piston Dynapro DS calipers with 12-inch vented rotors. The application list spans several model families and production splits, so the actual front spindle and wheel pattern must be verified for the chosen vehicle. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines as part of its disc brake systems and component range for motorsport, street-performance and specialized applications. Each component must suit the requirements of the complete brake installation.

Technical Details

• Manufacturer part number: 140-9193-R
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Plain; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 3.93 in; 5 x 99.82 mm; 5 x 4.5 in; 5 x 114.3 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

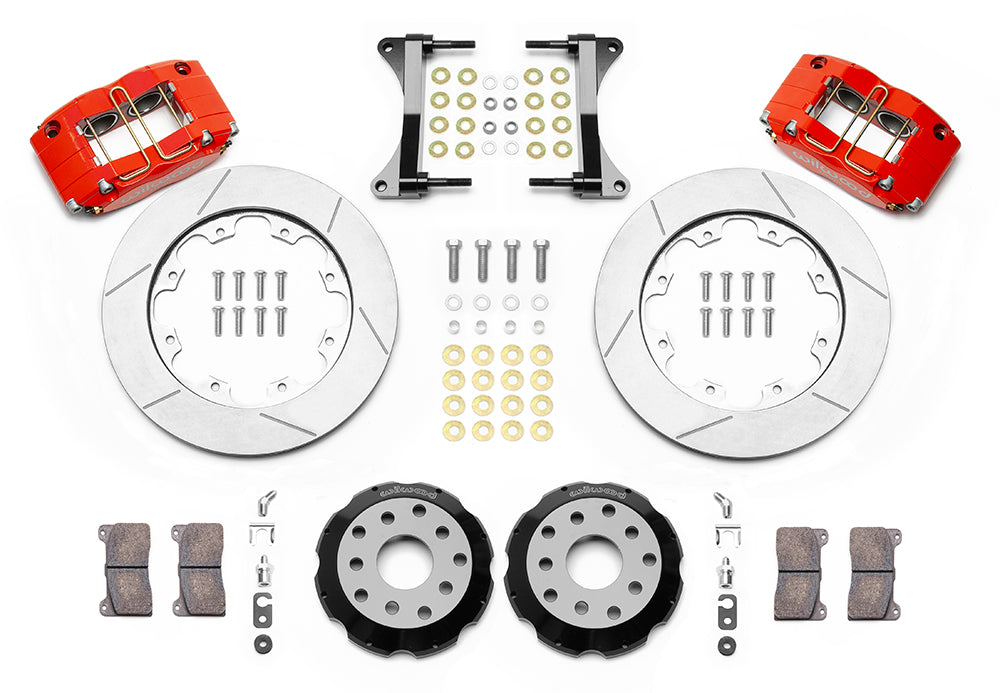

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 15-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 4-piston Dynapro Dust Seal Radial Mount; Red Powder Coat; radial mounting
• Brake rotors: 12.00 x 0.81 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel

Fitment & Compatibility

Coverage is limited to the specific Subaru entries below: selected Impreza models from 1999–2016, Forester from 2001–2011, Legacy and Outback from 2000–2002, plus the listed WRX and WRX STI configurations through 2021. Model and year alone do not establish a match; confirm the original brake/spindle arrangement and wheel pattern.

DS522 uses the original front hubs with radial caliper brackets. Match the actual five-lug pattern to the hat and verify the 12-inch rotor wheel template. Front hose kit 220-12857 is separate and must have clearance through full suspension and steering travel.

Review the complete fitment table below before purchase, retaining the restrictions attached to the chosen vehicle.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-12857
