Wilwood Front Red Dynapro DS Conversion for Selected WRX/WRX STI (2013–2021), Impreza (1999–2016), Legacy/Outback (2000–2002) and Forester (2001–2011), 12-Inch SRP Rotors

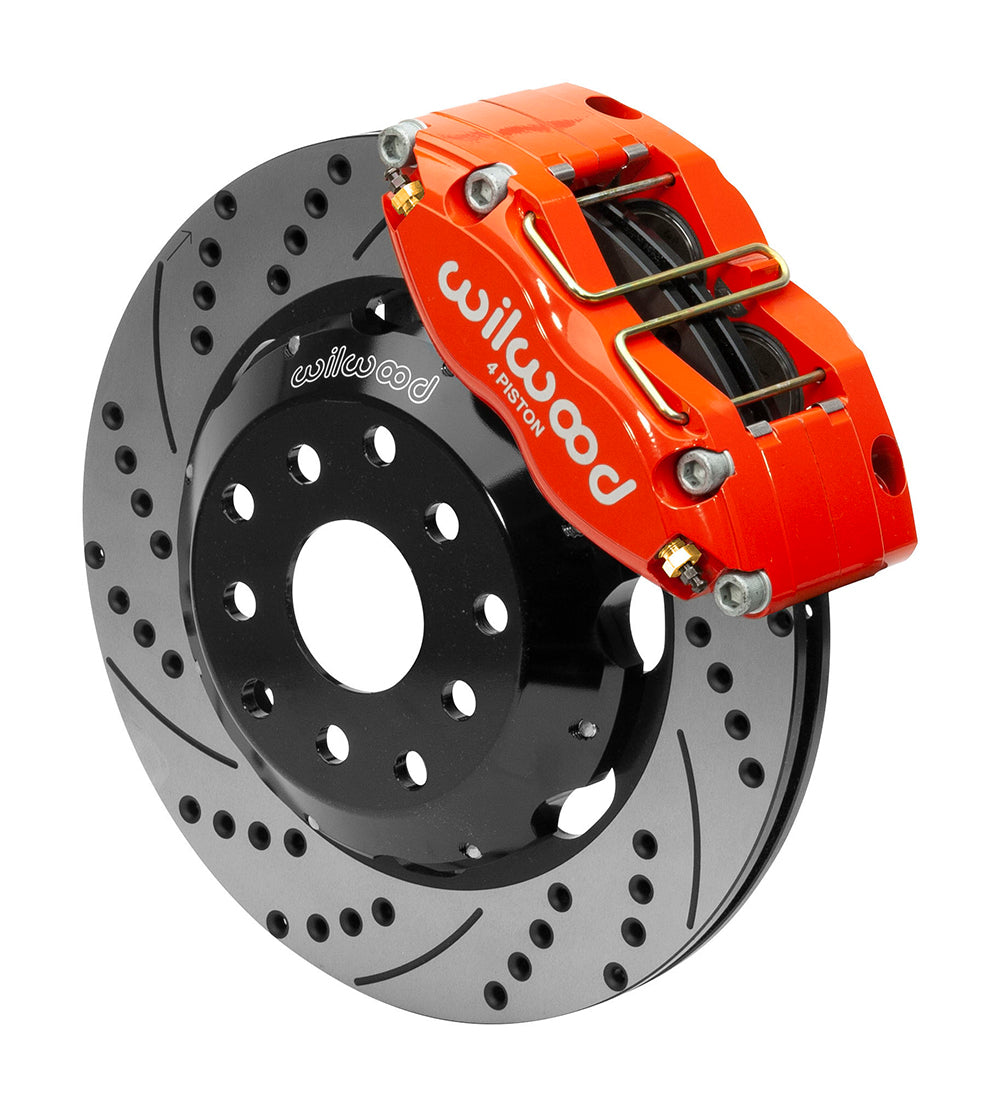

Red Dynapro calipers are paired with drilled/slotted 12-inch rotors in this Subaru conversion. The front assembly retains the factory hubs and requires a match between the installed bolt pattern and the supplied rotor hats. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together within a properly matched brake system.

Technical Details

• Manufacturer part number: 140-9193-DR
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 3.93 in; 5 x 99.82 mm; 5 x 4.5 in; 5 x 114.3 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

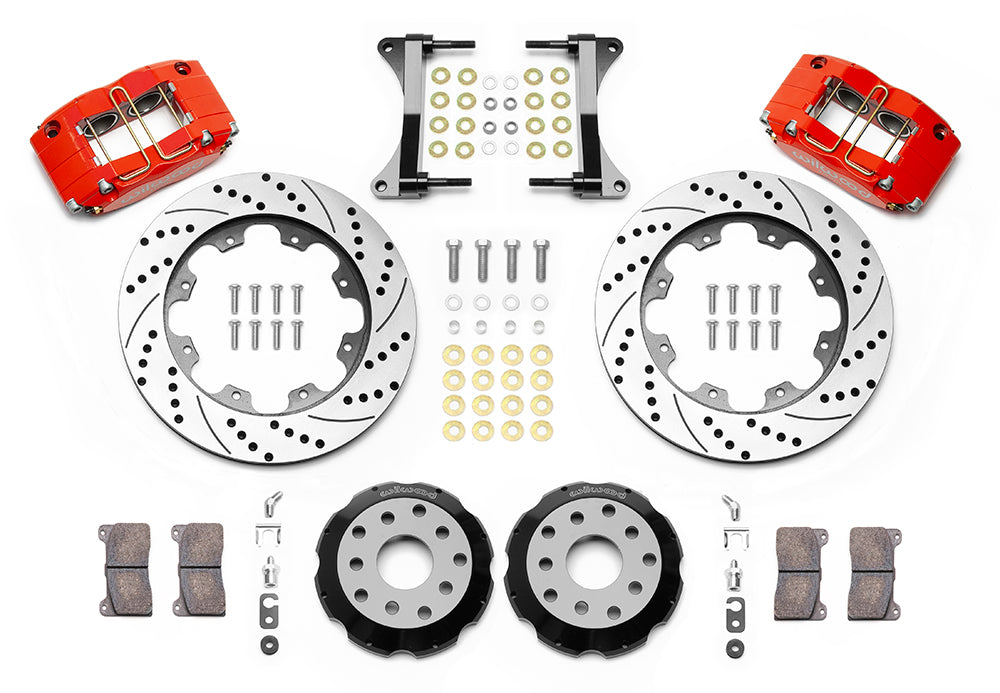

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 15-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 4-piston Dynapro Dust Seal Radial Mount; Red Powder Coat; radial mounting
• Brake rotors: 12.00 x 0.81 inches; Spec-37 Iron; SRP Drilled & Slotted; vented

Fitment & Compatibility

Coverage is limited to the specific Subaru entries below: selected Impreza models from 1999–2016, Forester from 2001–2011, Legacy and Outback from 2000–2002, plus the listed WRX and WRX STI configurations through 2021. Model and year alone do not establish a match; confirm the original brake/spindle arrangement and wheel pattern.

DS522 uses the original front hubs with radial caliper brackets. Match the actual five-lug pattern to the hat and verify the 12-inch rotor wheel template. Front hose kit 220-12857 is separate and must have clearance through full suspension and steering travel.

The table below gives the detailed vehicle coverage; match the individual entry and each referenced note.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-12857
