Wilwood Front 12-Inch Drilled/Slotted Rotors and Black Dynapro DS Calipers — Selected Legacy/Outback (2000–2002), Forester (2001–2011), Impreza (1999–2016) and WRX/WRX STI (2013–2021)

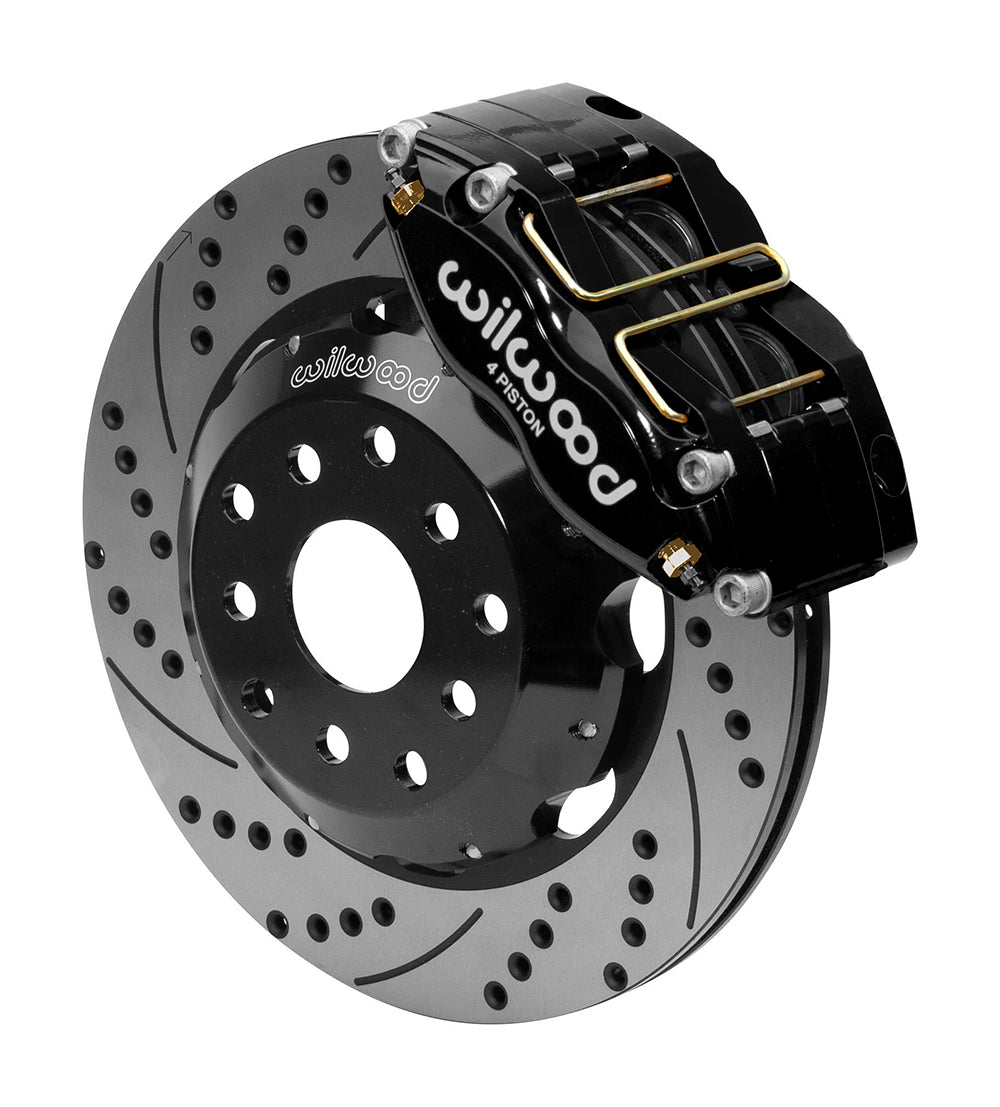

This Subaru front kit supplies black Dynapro DS calipers with 12-inch SRP rotors. The drilled/slotted rotor pair, radial brackets and BP-10 pads serve only the individual Impreza, WRX, Forester, Legacy and Outback configurations listed below. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded by Bill Wood in 1977, the company also produces the individual calipers, brake rotors, master cylinders, valves, fittings and brake lines used in these installations. Selection should account for how each component works within the complete brake system.

Technical Details

• Manufacturer part number: 140-9193-D
• Brake rotors: 12.00 x 0.81 inches; Spec-37 Iron; SRP Drilled & Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 3.93 in; 5 x 99.82 mm; 5 x 4.5 in; 5 x 114.3 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

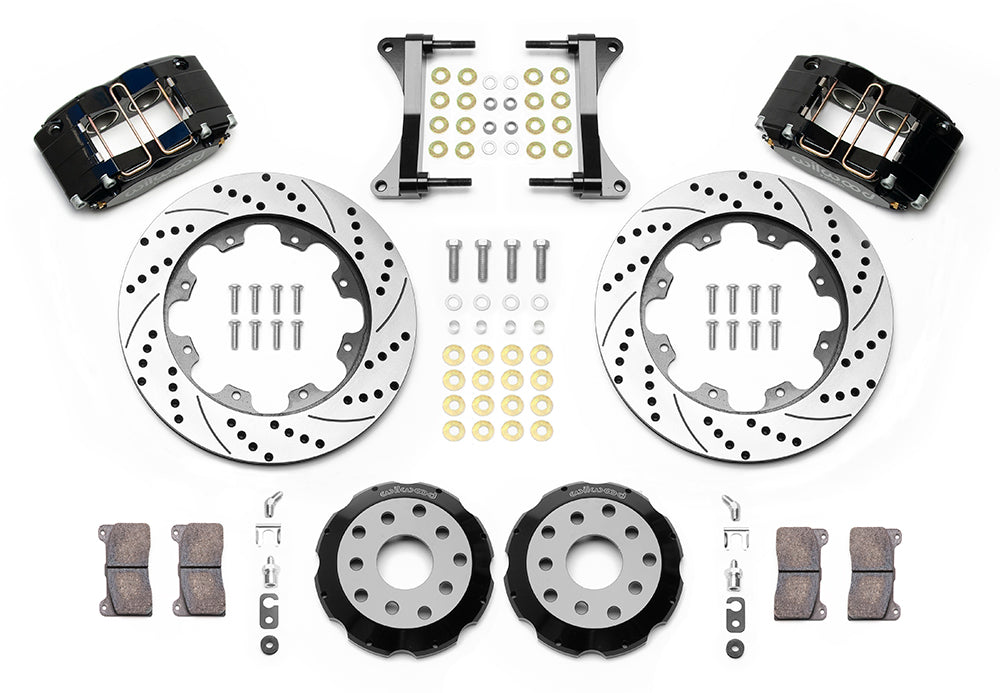

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 15-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 4-piston Dynapro Dust Seal Radial Mount; Black Powder Coat; radial mounting

Fitment & Compatibility

Coverage is limited to the specific Subaru entries below: selected Impreza models from 1999–2016, Forester from 2001–2011, Legacy and Outback from 2000–2002, plus the listed WRX and WRX STI configurations through 2021. Model and year alone do not establish a match; confirm the original brake/spindle arrangement and wheel pattern.

DS522 uses the original front hubs with radial caliper brackets. Match the actual five-lug pattern to the hat and verify the 12-inch rotor wheel template. Front hose kit 220-12857 is separate and must have clearance through full suspension and steering travel.

Check the full application table below, including its model-year splits and brake-configuration requirements.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-12857
