Wilwood Front Black Dynapro DS Kit, 12-Inch GT Rotors — Selected Subaru Impreza (1999–2016), WRX/WRX STI (2013–2021), Forester (2001–2011) and Legacy/Outback (2000–2002)

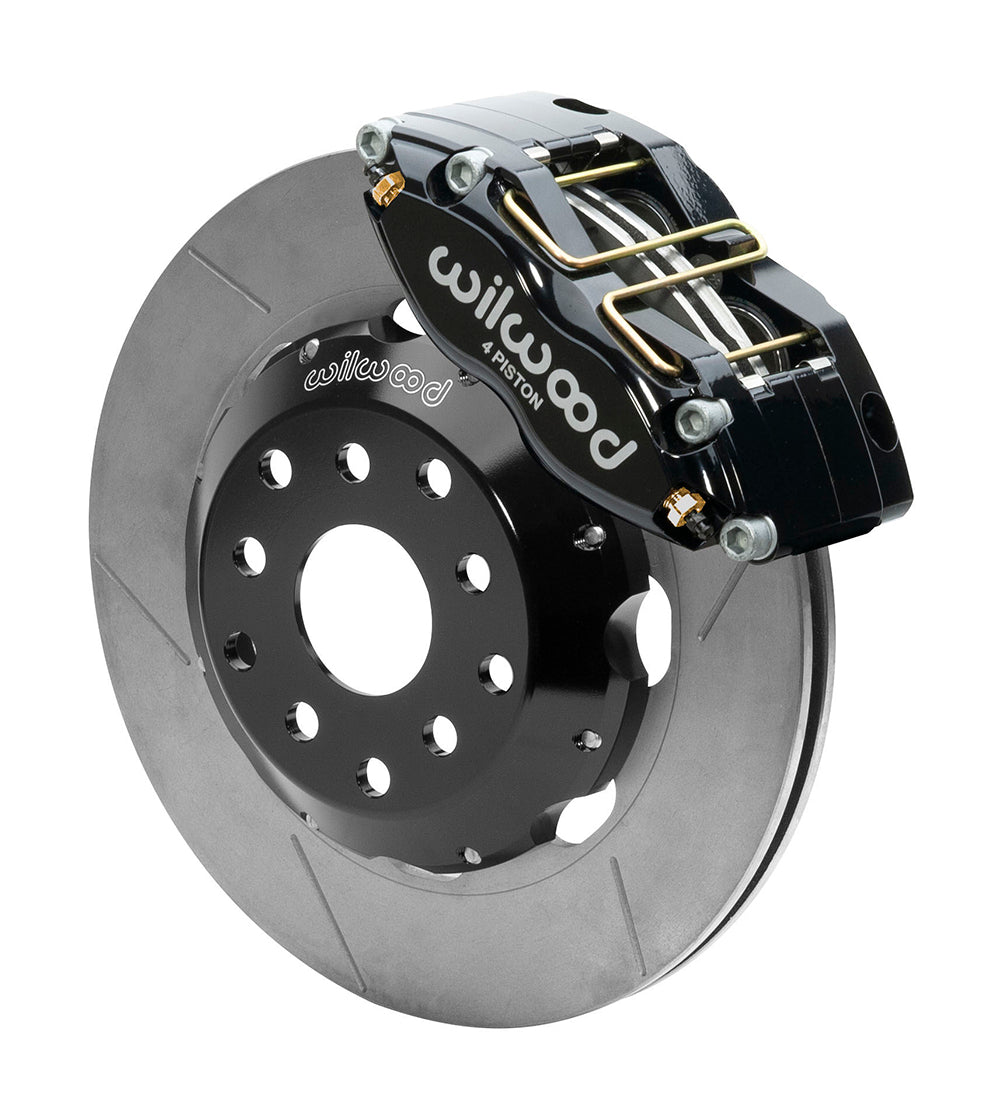

Black Dynapro Dust Seal calipers and 12-inch GT-slotted rotors make up this Subaru front package. Its dual-pattern hats accommodate the documented five-lug applications, while the original hubs and spindle configuration remain decisive. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are all part of Wilwood Engineering’s range of disc brake systems and components. The Camarillo, California company was founded in 1977 by Bill Wood and designs and manufactures these products for motorsport, street-performance and specialized applications. Compatibility with the complete brake system determines the appropriate component choice.

Technical Details

• Manufacturer part number: 140-9193
• Service calipers: 4-piston Dynapro Dust Seal Radial Mount; Black Powder Coat; radial mounting
• Brake rotors: 12.00 x 0.81 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Plain; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 3.93 in; 5 x 99.82 mm; 5 x 4.5 in; 5 x 114.3 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

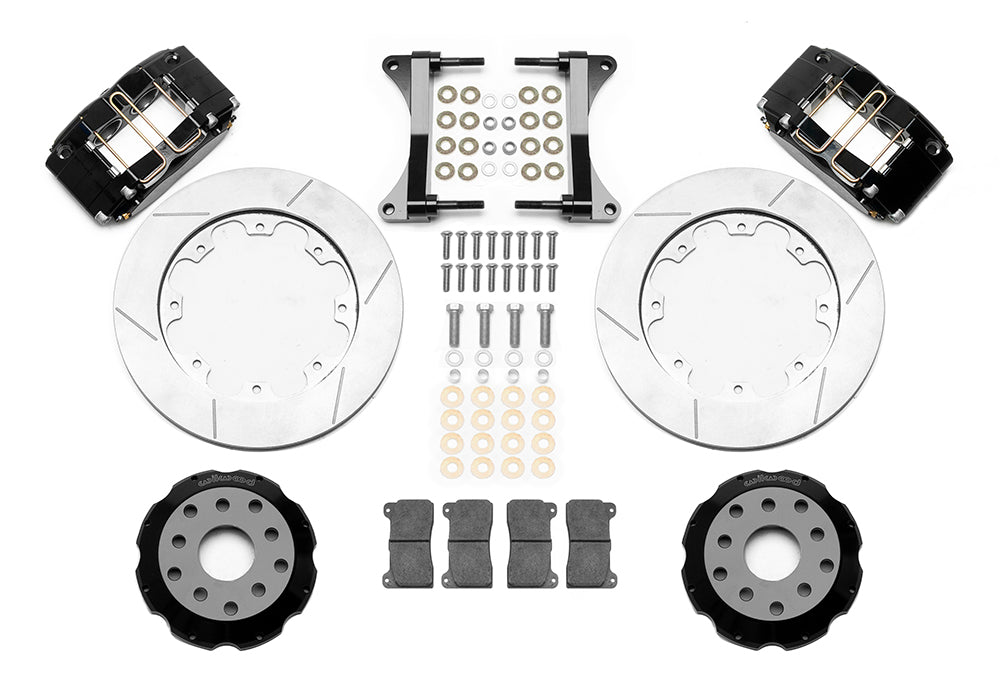

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 15-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit

Fitment & Compatibility

Coverage is limited to the specific Subaru entries below: selected Impreza models from 1999–2016, Forester from 2001–2011, Legacy and Outback from 2000–2002, plus the listed WRX and WRX STI configurations through 2021. Model and year alone do not establish a match; confirm the original brake/spindle arrangement and wheel pattern.

DS522 uses the original front hubs with radial caliper brackets. Match the actual five-lug pattern to the hat and verify the 12-inch rotor wheel template. Front hose kit 220-12857 is separate and must have clearance through full suspension and steering travel.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-12857
