Product details
This red-caliper GT option uses 14-inch Spec-37 rotors on separate front hats. The 350Z/G35 application must meet the model-specific restrictions as well as the DS547 mounting and wheel-clearance requirements. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together within a properly matched brake system.
Technical Details
- Manufacturer part number: 140-9192-R
- Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
- Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
- Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; the existing hub/axle pattern is retained
- Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
- Hydraulic hoses: not included; match the separate lines and fittings to the application
- Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
- Not included: master cylinder and brake booster
- Wheel clearance: 18-inch wheels may fit; check the complete manufacturer caliper/rotor template
- Quantity: sold as one axle kit

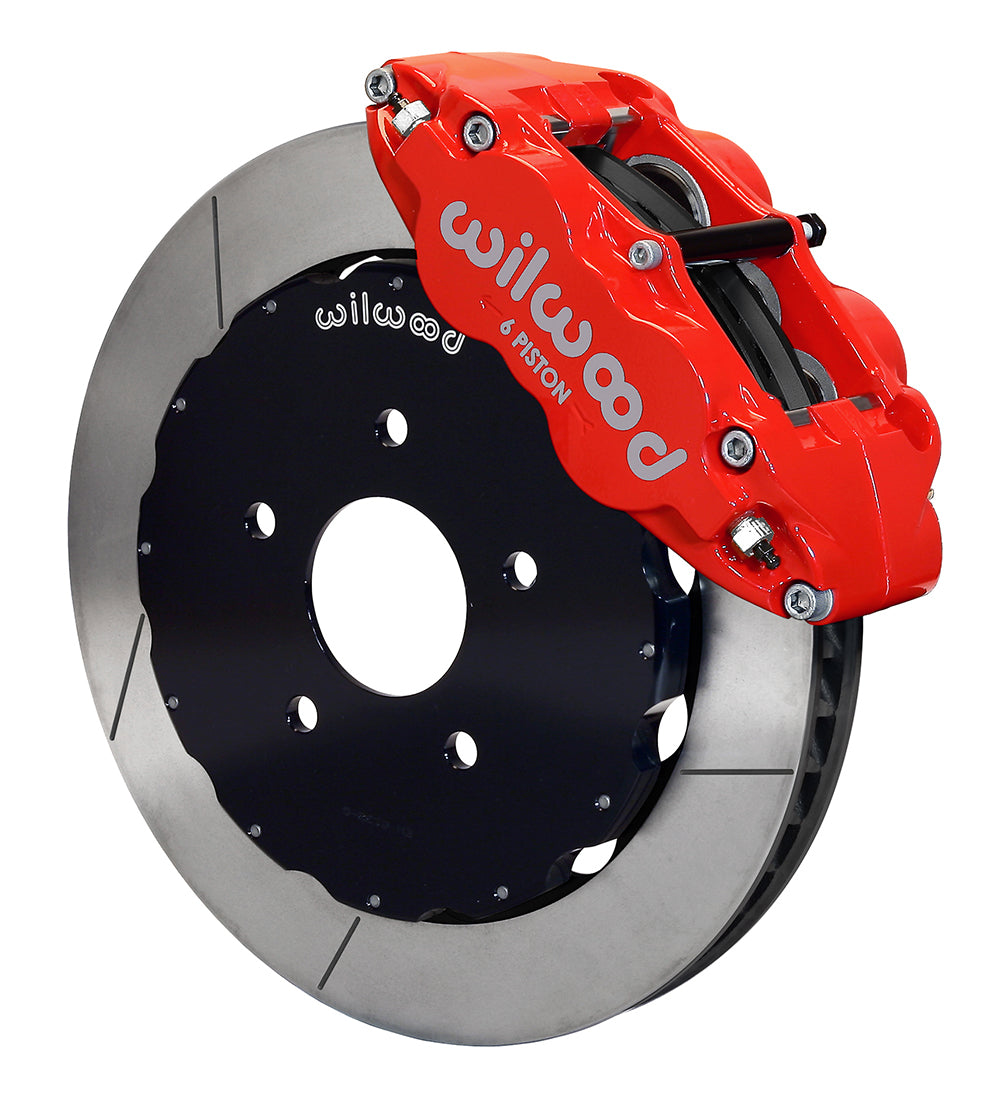

- Service calipers: 6-piston Forged Narrow Superlite 6R; Red Powder Coat; radial mounting
- Brake rotors: 14.00 x 1.25 inches; Spec-37 Iron; GT Slotted; vented
- Included pad compound: BP-10; pistons: stainless steel
Fitment & Compatibility
The application list covers Nissan 350Z from 2003–2009 and Infiniti G35 from 2003–2007. The 2007 G35 entry is specifically the two-door RWD model; AWD and later sedan configurations are not established by this kit. Match the listed standard/Brembo brake configuration and the original front spindle.
Plan for the dust-shield modifications detailed in DS547 and confirm clearance around the 14-inch rotor assembly. The 220-9196 hose kit is not included. Check the existing hub register, wheel pattern and caliper envelope before beginning installation.
Review the complete fitment table below before purchase, retaining the restrictions attached to the chosen vehicle.
Manufacturer Resources
- Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 2003 | Infiniti | G35 | Brembo Brakes | Disc | Disc | Front Kit | 1, 2, 3, 4 |
| 2003 | Infiniti | G35 | Std Brakes | Disc | Disc | Front Kit | 1, 2, 3, 4 |
| 2003-2009 | Nissan | 350Z | w/ 4 Piston Front Calipers | Disc | Disc | Front Kit | 1, 2, 3, 4 |
| 2003-2009 | Nissan | 350Z | w/ Single Piston Front Calipers | Disc | Disc | Front Kit | 1, 2, 3, 4 |
| 2004 | Infiniti | G35 | RWD Brembo Brakes | Disc | Disc | Front Kit | 1, 2, 3, 4 |
| 2004 | Infiniti | G35 | RWD Std Brakes | Disc | Disc | Front Kit | 1, 2, 3, 4 |
| 2005-2006 | Infiniti | G35 | RWD | Disc | Disc | Front Kit | 1, 2, 3, 4 |
| 2007 | Infiniti | G35 | 2 Door | Disc | Disc | Front Kit | 1, 2, 3, 4 |
Application Notes
- 14" Rotor
- Rear wheel drive (RWD) only, will not fit all wheel drive (AWD) vehicles.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-9196
