Wilwood Front Red Six-Piston GT Kit for 350Z (2003–2009) & G35 (2003–2007), Slotted 13.06-Inch Rotors

GT-slotted Spec-37 rotors are matched to red six-piston Superlite calipers in this 350Z/G35 package. The documented 13.06-inch front installation includes the mounting hardware and pads but requires separate flexlines. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded by Bill Wood in 1977, the company also produces the individual calipers, brake rotors, master cylinders, valves, fittings and brake lines used in these installations. Selection should account for how each component works within the complete brake system.

Technical Details

• Manufacturer part number: 140-9190-R
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

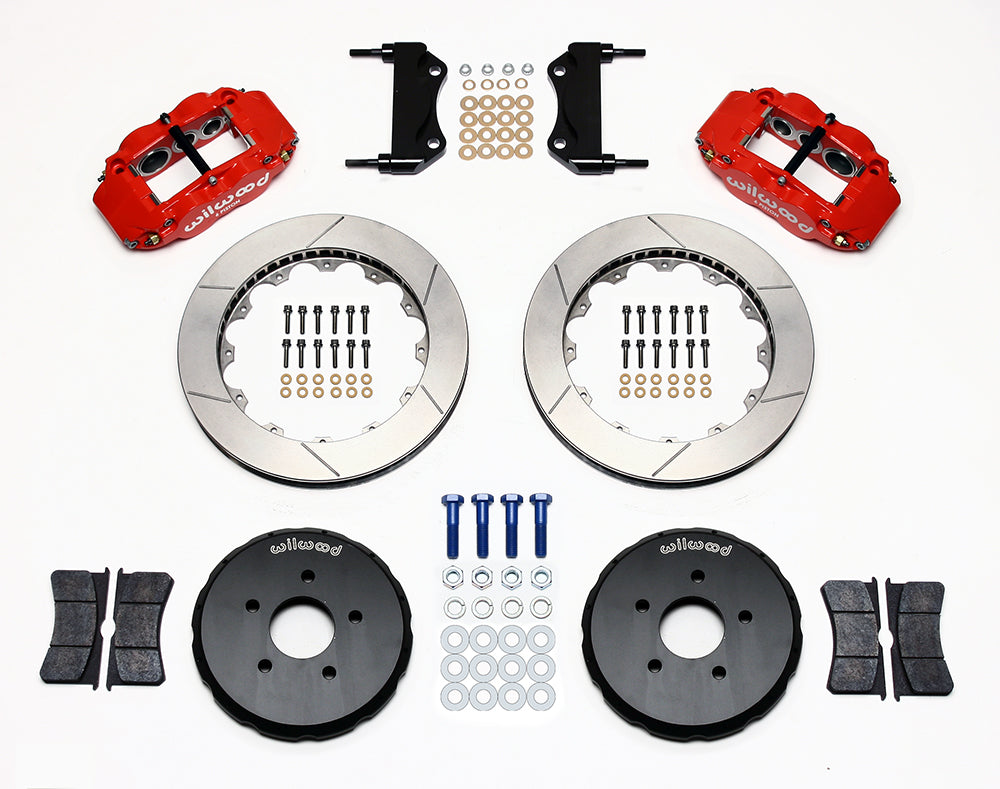

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit

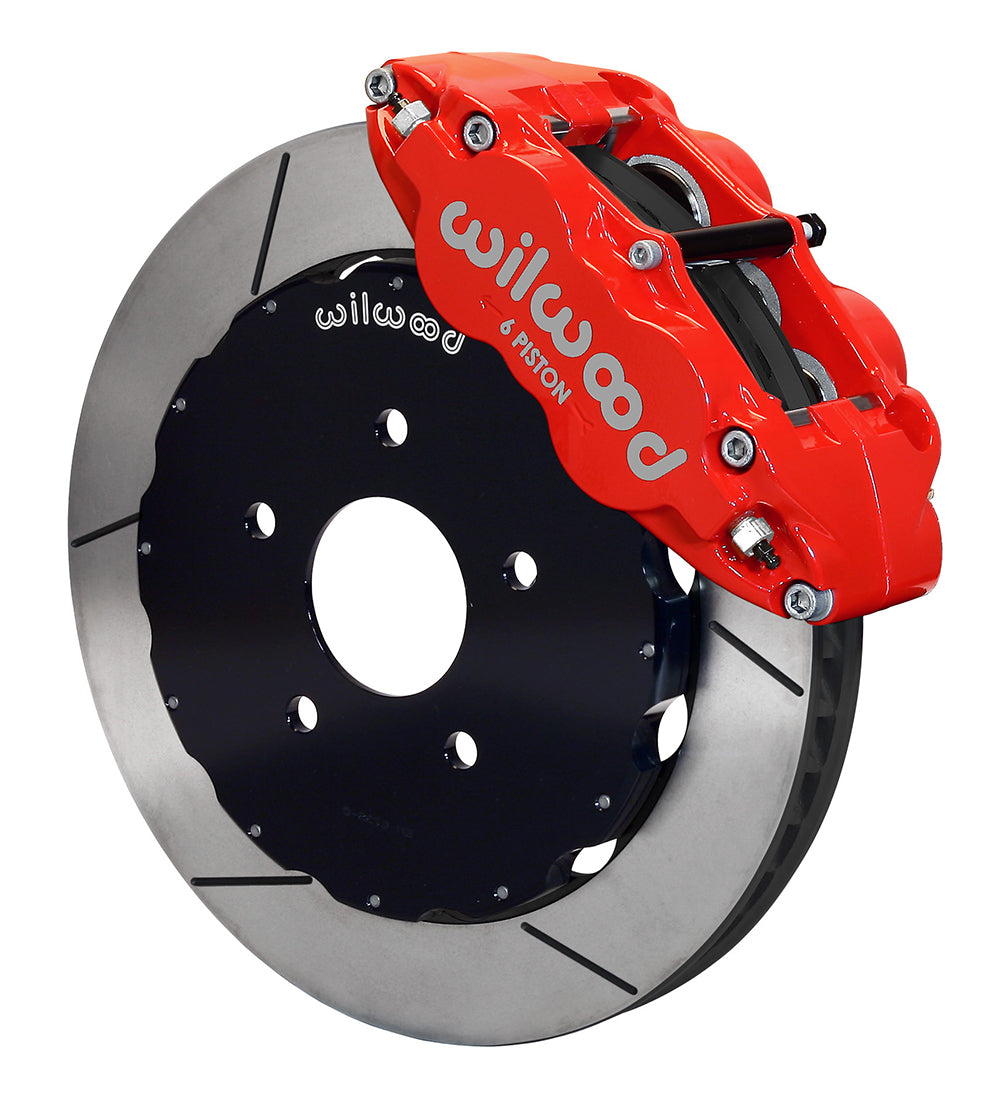

• Service calipers: 6-piston Forged Narrow Superlite 6R; Red Powder Coat; radial mounting
• Brake rotors: 13.06 x 1.25 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel

Fitment & Compatibility

The application list covers Nissan 350Z from 2003–2009 and Infiniti G35 from 2003–2007. The 2007 G35 entry is specifically the two-door RWD model; AWD and later sedan configurations are not established by this kit. Match the listed standard/Brembo brake configuration and the original front spindle.

DS546 requires cutting the front dust shield for rotor clearance and recommends a qualified machine shop. The 13.06-inch rotors fit the retained hubs; hydraulic kit 220-9196 is separate. Inspect the entire wheel profile using the manufacturer’s template.

Review the complete fitment table below before purchase, retaining the restrictions attached to the chosen vehicle.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Application Notes

1. Rear wheel drive (RWD) only, will not fit all wheel drive (AWD) vehicles.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-9196
