Product details

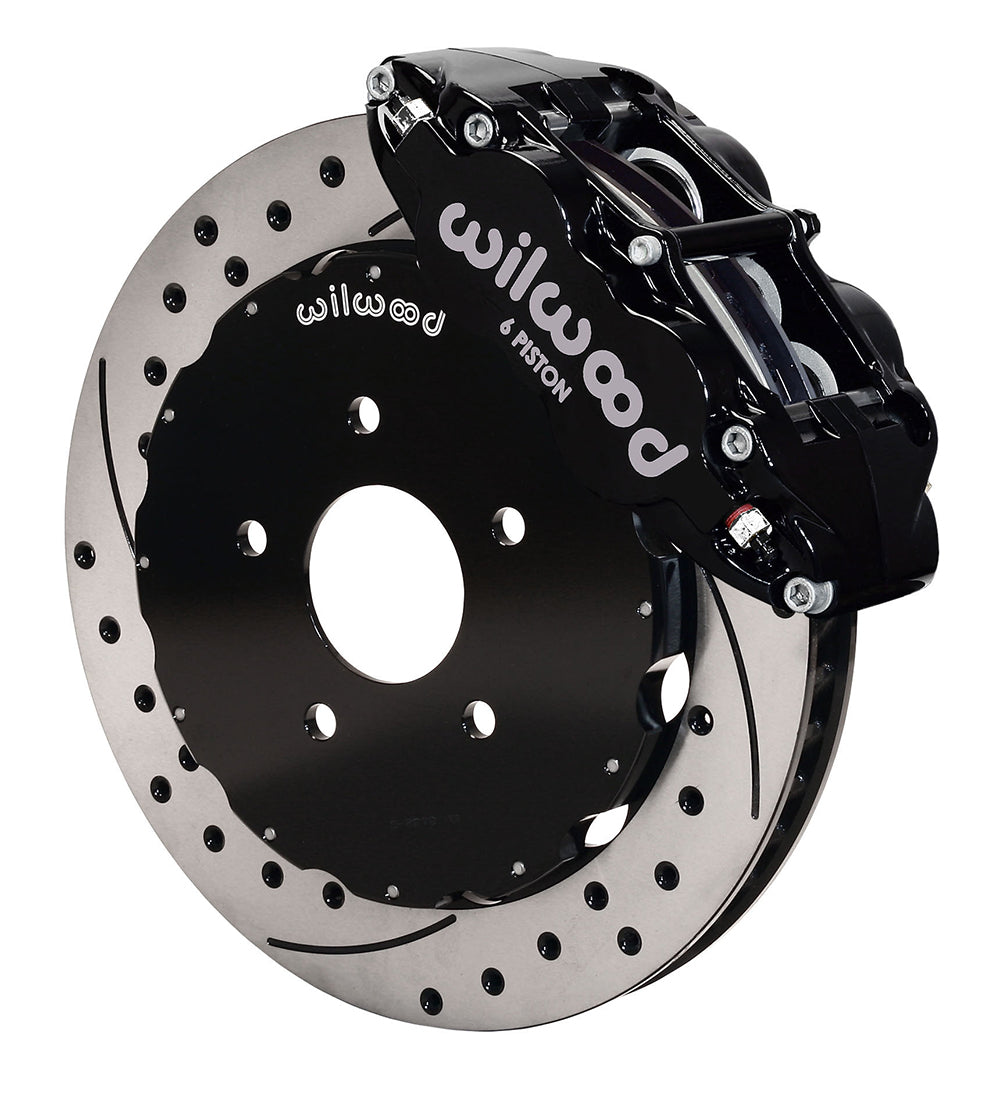

Drilled/slotted SRP rotors distinguish this black-caliper 350Z/G35 front conversion. The 13.06-inch rotor pair is supplied with radial brackets and BP-10 pads, subject to the specific model, body and drivetrain coverage below. Wilwood Engineering designs and manufactures the disc brake systems and components used throughout its motorsport, street-performance and specialized product range. Bill Wood established Wilwood in 1977, and the company is based in Camarillo, California. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings are selected according to the demands of the whole brake installation.
Technical Details
- Manufacturer part number: 140-9190-D
- Brake rotors: 13.06 x 1.25 inches; Spec-37 Iron; SRP Drilled & Slotted; vented
- Included pad compound: BP-10; pistons: stainless steel
- Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
- Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
- Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; the existing hub/axle pattern is retained
- Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
- Hydraulic hoses: not included; match the separate lines and fittings to the application

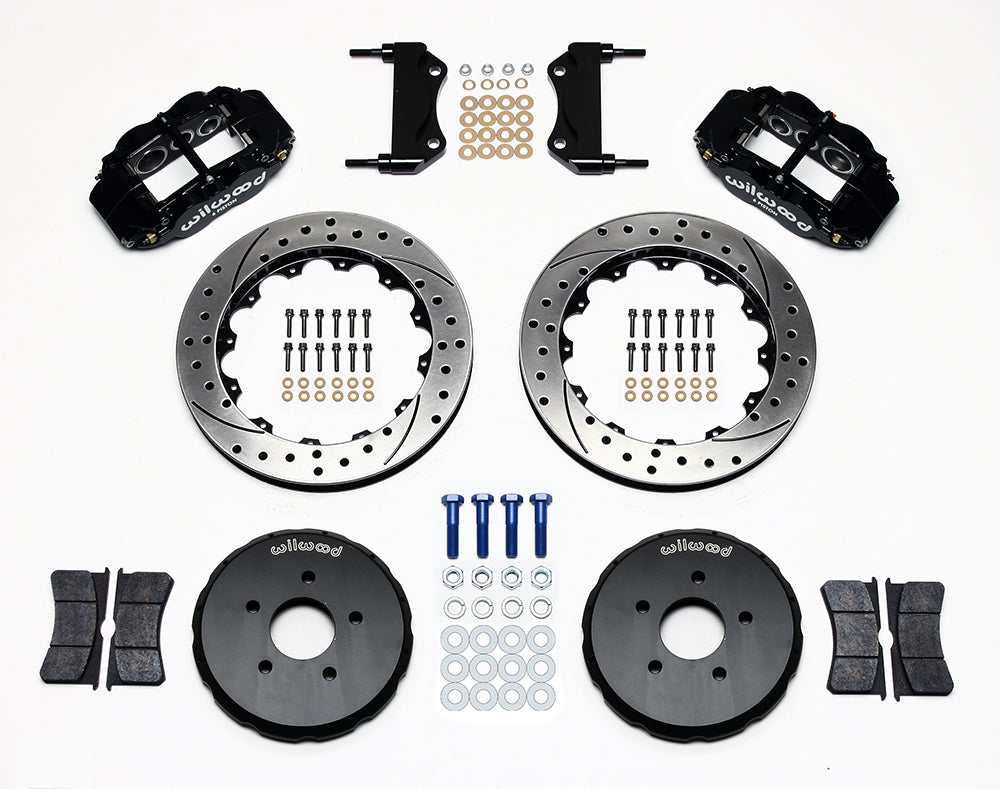

- Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
- Not included: master cylinder and brake booster
- Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
- Quantity: sold as one axle kit
- Service calipers: 6-piston Forged Narrow Superlite 6R; Black Powder Coat; radial mounting
Fitment & Compatibility
The application list covers Nissan 350Z from 2003–2009 and Infiniti G35 from 2003–2007. The 2007 G35 entry is specifically the two-door RWD model; AWD and later sedan configurations are not established by this kit. Match the listed standard/Brembo brake configuration and the original front spindle.
DS546 requires cutting the front dust shield for rotor clearance and recommends a qualified machine shop. The 13.06-inch rotors fit the retained hubs; hydraulic kit 220-9196 is separate. Inspect the entire wheel profile using the manufacturer’s template.
Check the full application table below, including its model-year splits and brake-configuration requirements.
Manufacturer Resources
- Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 2003 | Infiniti | G35 | Brembo Brakes | Disc | Disc | Front Kit | 1, 2, 3 |
| 2003 | Infiniti | G35 | Std Brakes | Disc | Disc | Front Kit | 1, 2, 3 |
| 2003-2009 | Nissan | 350Z | w/ 4 Piston Front Calipers | Disc | Disc | Front Kit | 1, 2, 3 |
| 2003-2009 | Nissan | 350Z | w/ Single Piston Front Calipers | Disc | Disc | Front Kit | 1, 2, 3 |
| 2004 | Infiniti | G35 | RWD Brembo Brakes | Disc | Disc | Front Kit | 1, 2, 3 |
| 2004 | Infiniti | G35 | RWD Std Brakes | Disc | Disc | Front Kit | 1, 2, 3 |
| 2005-2006 | Infiniti | G35 | RWD | Disc | Disc | Front Kit | 1, 2, 3 |
| 2007 | Infiniti | G35 | 2 Door | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- Rear wheel drive (RWD) only, will not fit all wheel drive (AWD) vehicles.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-9196
