Product details

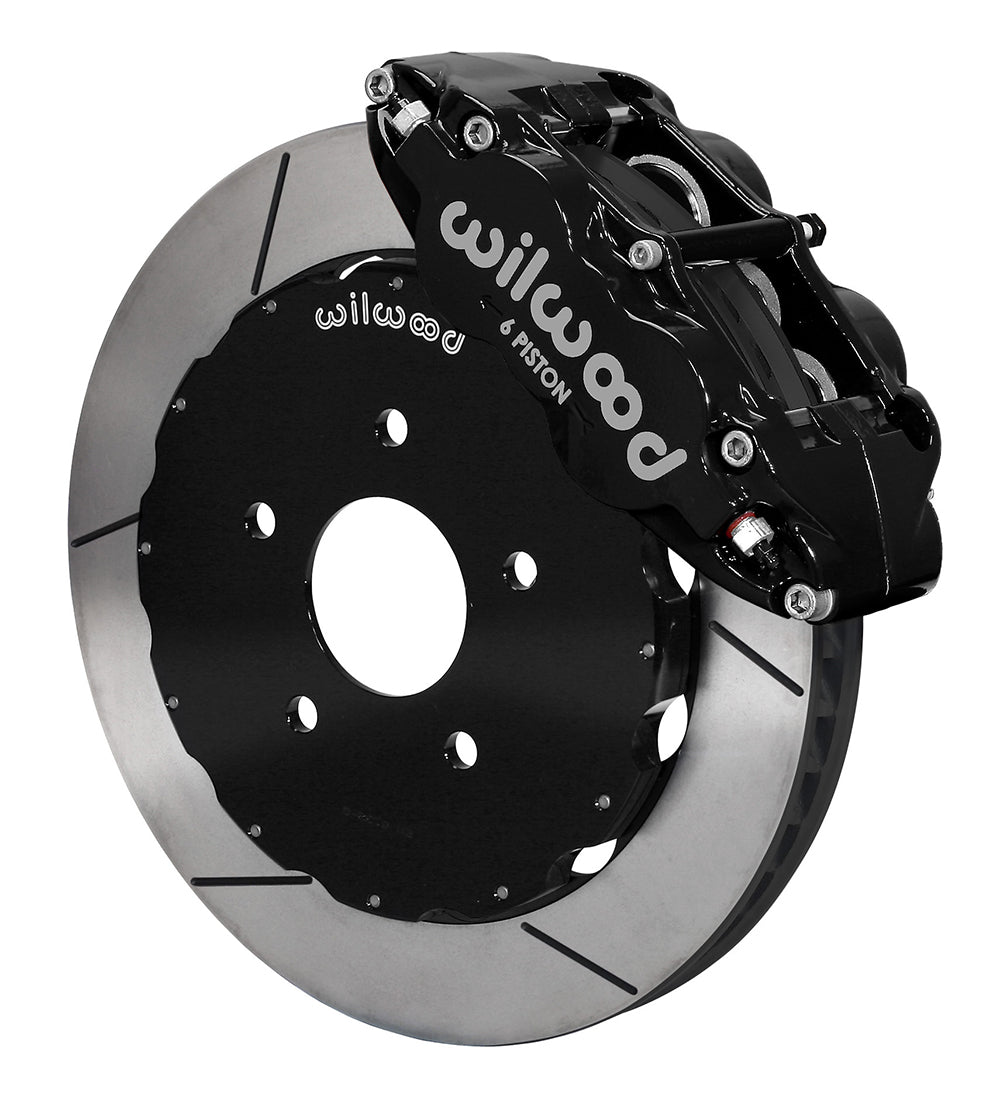

The black Superlite front package combines 13.06-inch GT-slotted rotors with six-piston calipers for the listed 350Z and G35 applications. Separate hats retain the original hub interface, while the dust shield must be modified as documented. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. It designs and manufactures disc brake components and complete systems, from calipers and brake rotors to valves, master cylinders, fittings and brake lines. Motorsport, street-performance and specialized installations each require those components to be matched to the complete brake system.
Technical Details
- Manufacturer part number: 140-9190
- Service calipers: 6-piston Forged Narrow Superlite 6R; Black Powder Coat; radial mounting
- Brake rotors: 13.06 x 1.25 inches; Spec-37 Iron; GT Slotted; vented
- Included pad compound: BP-10; pistons: stainless steel
- Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
- Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
- Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; the existing hub/axle pattern is retained
- Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
- Hydraulic hoses: not included; match the separate lines and fittings to the application

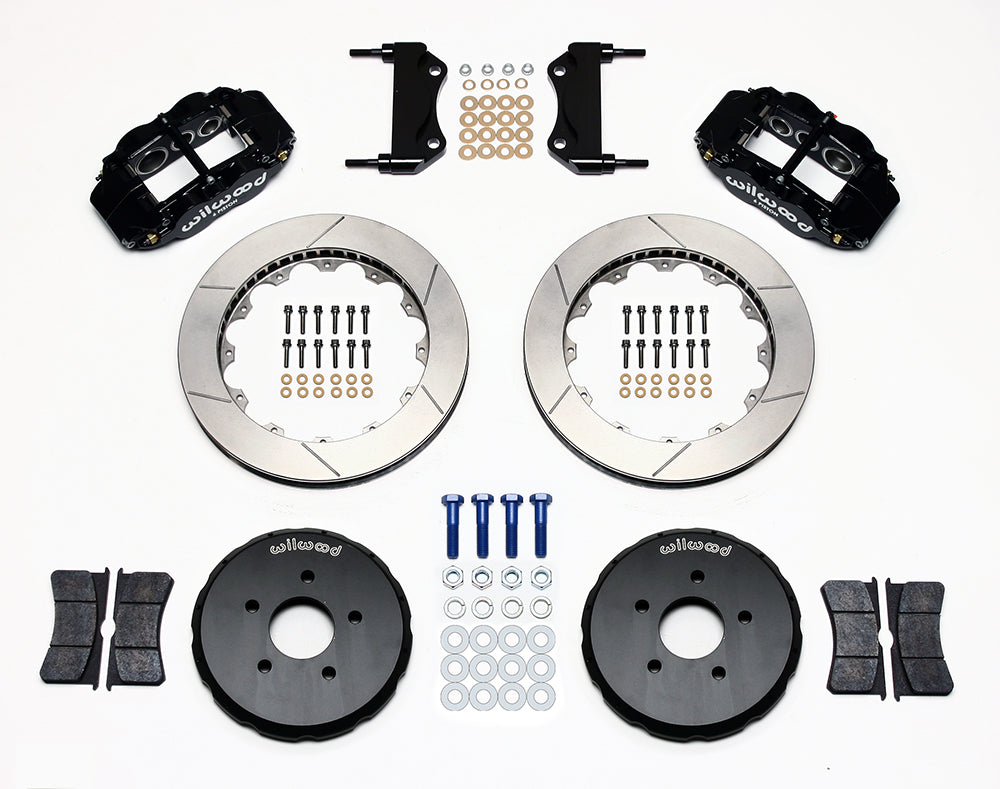

- Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
- Not included: master cylinder and brake booster
- Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
- Quantity: sold as one axle kit
Fitment & Compatibility
The application list covers Nissan 350Z from 2003–2009 and Infiniti G35 from 2003–2007. The 2007 G35 entry is specifically the two-door RWD model; AWD and later sedan configurations are not established by this kit. Match the listed standard/Brembo brake configuration and the original front spindle.
DS546 requires cutting the front dust shield for rotor clearance and recommends a qualified machine shop. The 13.06-inch rotors fit the retained hubs; hydraulic kit 220-9196 is separate. Inspect the entire wheel profile using the manufacturer’s template.
Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.
Manufacturer Resources
- Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 2003 | Infiniti | G35 | Brembo Brakes | Disc | Disc | Front Kit | 1, 2, 3 |
| 2003 | Infiniti | G35 | Std Brakes | Disc | Disc | Front Kit | 1, 2, 3 |
| 2003-2009 | Nissan | 350Z | w/ 4 Piston Front Calipers | Disc | Disc | Front Kit | 1, 2, 3 |
| 2003-2009 | Nissan | 350Z | w/ Single Piston Front Calipers | Disc | Disc | Front Kit | 1, 2, 3 |
| 2004 | Infiniti | G35 | RWD Brembo Brakes | Disc | Disc | Front Kit | 1, 2, 3 |
| 2004 | Infiniti | G35 | RWD Std Brakes | Disc | Disc | Front Kit | 1, 2, 3 |
| 2005-2006 | Infiniti | G35 | RWD | Disc | Disc | Front Kit | 1, 2, 3 |
| 2007 | Infiniti | G35 | 2 Door | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- Rear wheel drive (RWD) only, will not fit all wheel drive (AWD) vehicles.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-9196
