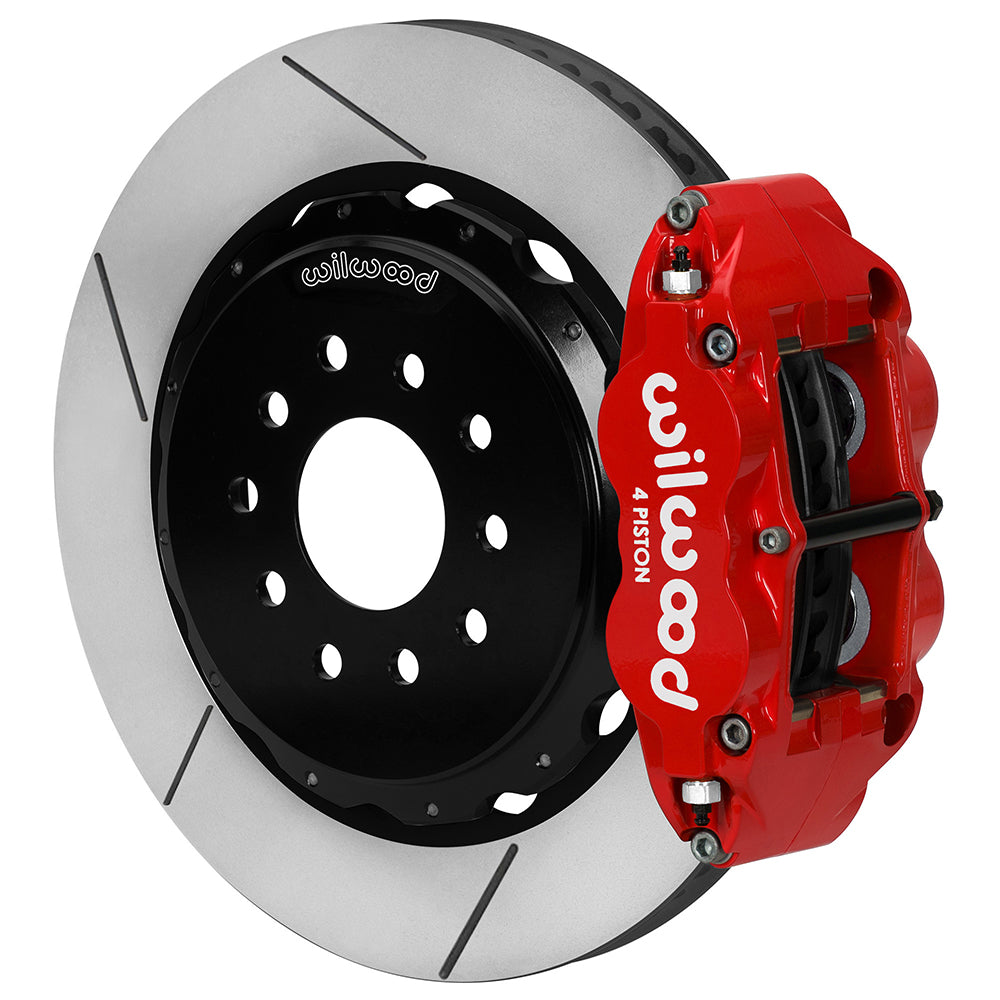

Wilwood Rear GT-Slotted Brakes for XLR (2004–2009) and Corvette C5/C6 (1997–2013) — Red Four-Piston Superlites with 14-Inch Rotors

This red Superlite 4R kit uses GT-slotted 14-inch rotors for the qualified Corvette and XLR rear applications. BP-20 pads are included, while the factory internal parking-brake mechanism and its operating controls are retained. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are all part of Wilwood Engineering’s range of disc brake systems and components. The Camarillo, California company was founded in 1977 by Bill Wood and designs and manufactures these products for motorsport, street-performance and specialized applications. Compatibility with the complete brake system determines the appropriate component choice.

Technical Details

• Manufacturer part number: 140-9119-R
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Parking brake: retain the original internal parking-brake mechanism; no replacement cable kit is supplied
• Hydraulic hoses: not included; match the separate lines and fittings to the application

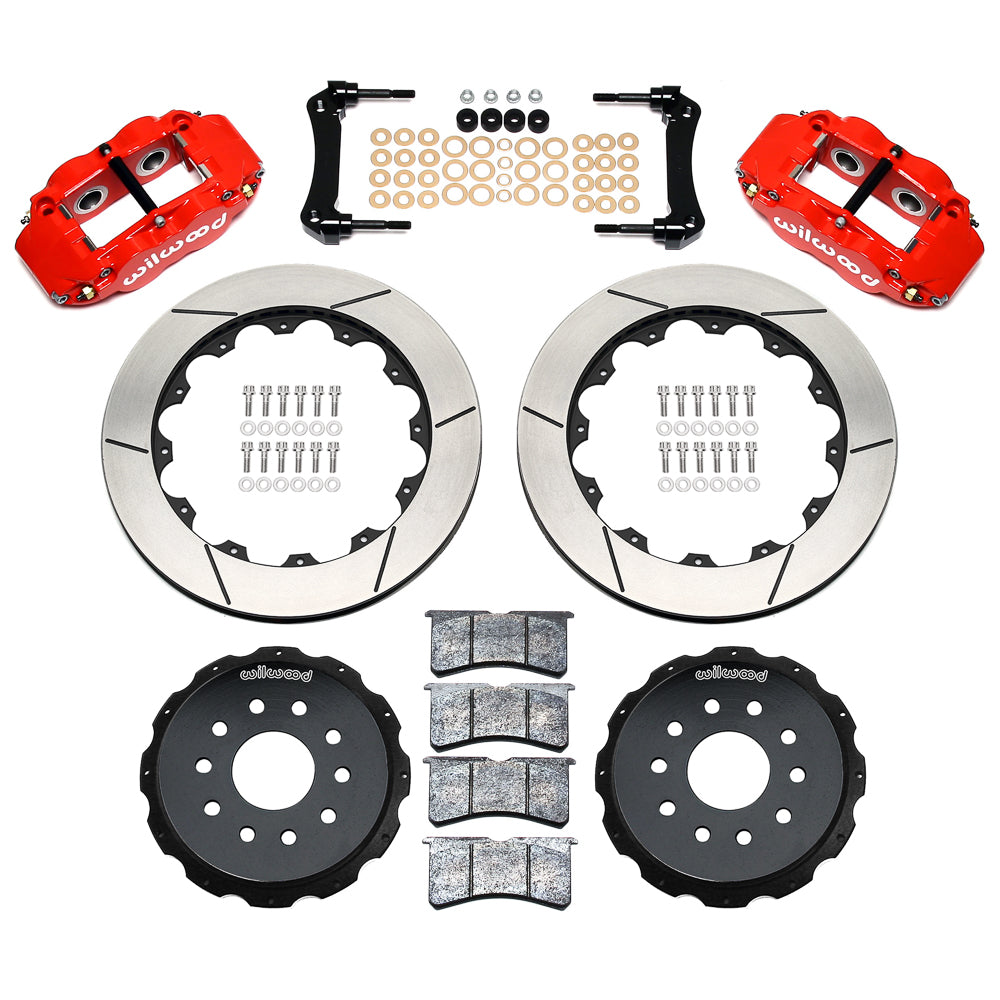

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 18-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 4-piston Forged Narrow Superlite 4R; Red Powder Coat; radial mounting
• Brake rotors: 14.00 x 1.10 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-20; pistons: stainless steel

Fitment & Compatibility

For the listed 1997–2013 Corvette C5/C6 and 2004–2009 Cadillac XLR rear applications. The rotor hats work with the existing internal parking brake, which is retained and adjusted to factory specifications. Verify the precise brake package, hub and wheel arrangement.

The application notes call for 1/8-inch spacers with OE rear wheels. Check the DS516 template, wheel seating and stud engagement for the actual wheel. Rear hydraulic lines are separate; choose the correct model-specific connection rather than treating a front hose reference as a rear component.

Review the complete fitment table below before purchase, retaining the restrictions attached to the chosen vehicle.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. 14" Rotor
2. Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
3. Line kit included (manufacturer): None
4. Rear line-kit reference: 220-8177, 220-9101
