Wilwood Rear Black Superlite 4R Kit with 14-Inch GT Rotors — Corvette C5/C6 (1997–2013) and Cadillac XLR (2004–2009), OE Parking Brake Retained

This black Superlite 4R rear package pairs 14-inch GT rotors with BP-20 pads for the specified Corvette and XLR applications. The original internal parking brake remains in place and must be adjusted after the new service-brake components are installed. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems and components since Bill Wood founded the company in 1977. Its work spans motorsport, street-performance and specialized applications, with a product range covering master cylinders, calipers, brake rotors, valves, fittings and brake lines. These parts must be chosen for the requirements of the entire brake system.

Technical Details

• Manufacturer part number: 140-9119
• Service calipers: 4-piston Forged Narrow Superlite 4R; Black Powder Coat; radial mounting
• Brake rotors: 14.00 x 1.10 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-20; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Parking brake: retain the original internal parking-brake mechanism; no replacement cable kit is supplied
• Hydraulic hoses: not included; match the separate lines and fittings to the application

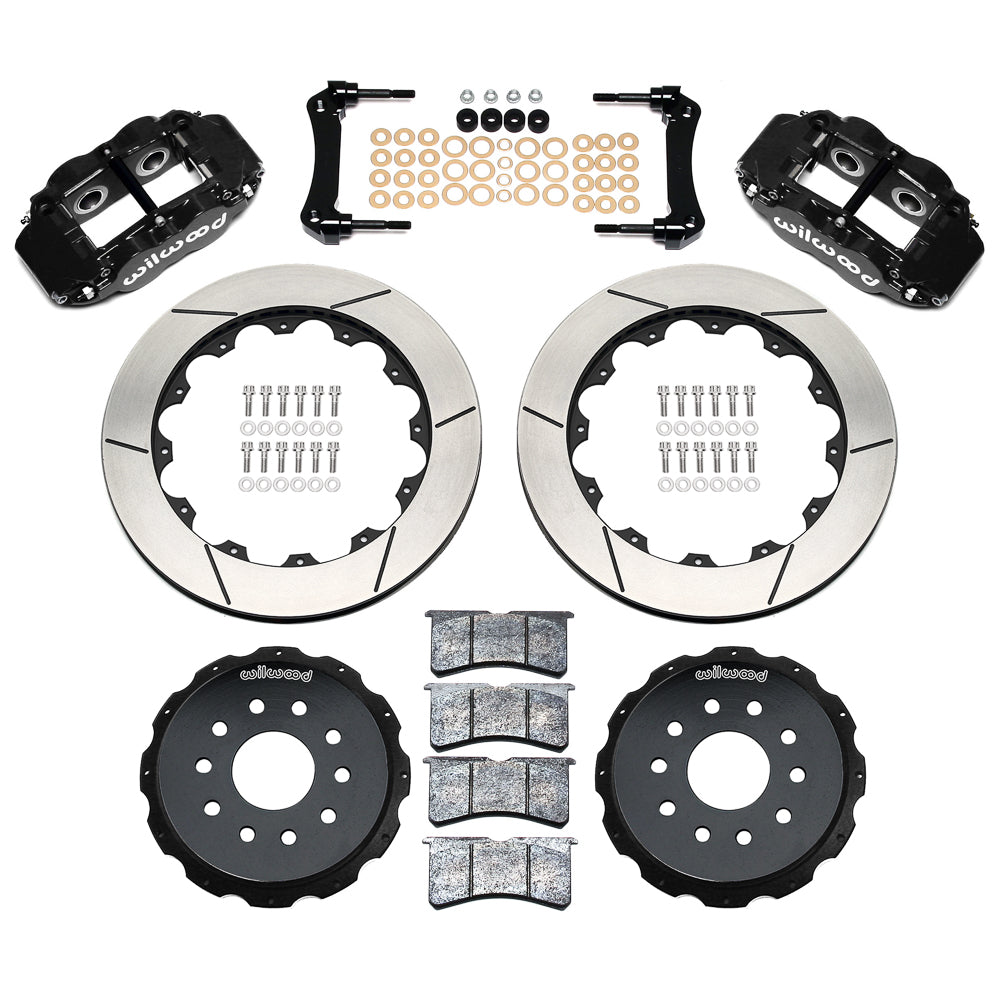

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 18-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit

Fitment & Compatibility

For the listed 1997–2013 Corvette C5/C6 and 2004–2009 Cadillac XLR rear applications. The rotor hats work with the existing internal parking brake, which is retained and adjusted to factory specifications. Verify the precise brake package, hub and wheel arrangement.

The application notes call for 1/8-inch spacers with OE rear wheels. Check the DS516 template, wheel seating and stud engagement for the actual wheel. Rear hydraulic lines are separate; choose the correct model-specific connection rather than treating a front hose reference as a rear component.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Application Notes

1. 14" Rotor
2. Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
3. Line kit included (manufacturer): None
4. Rear line-kit reference: 220-8177, 220-9101
