Product details

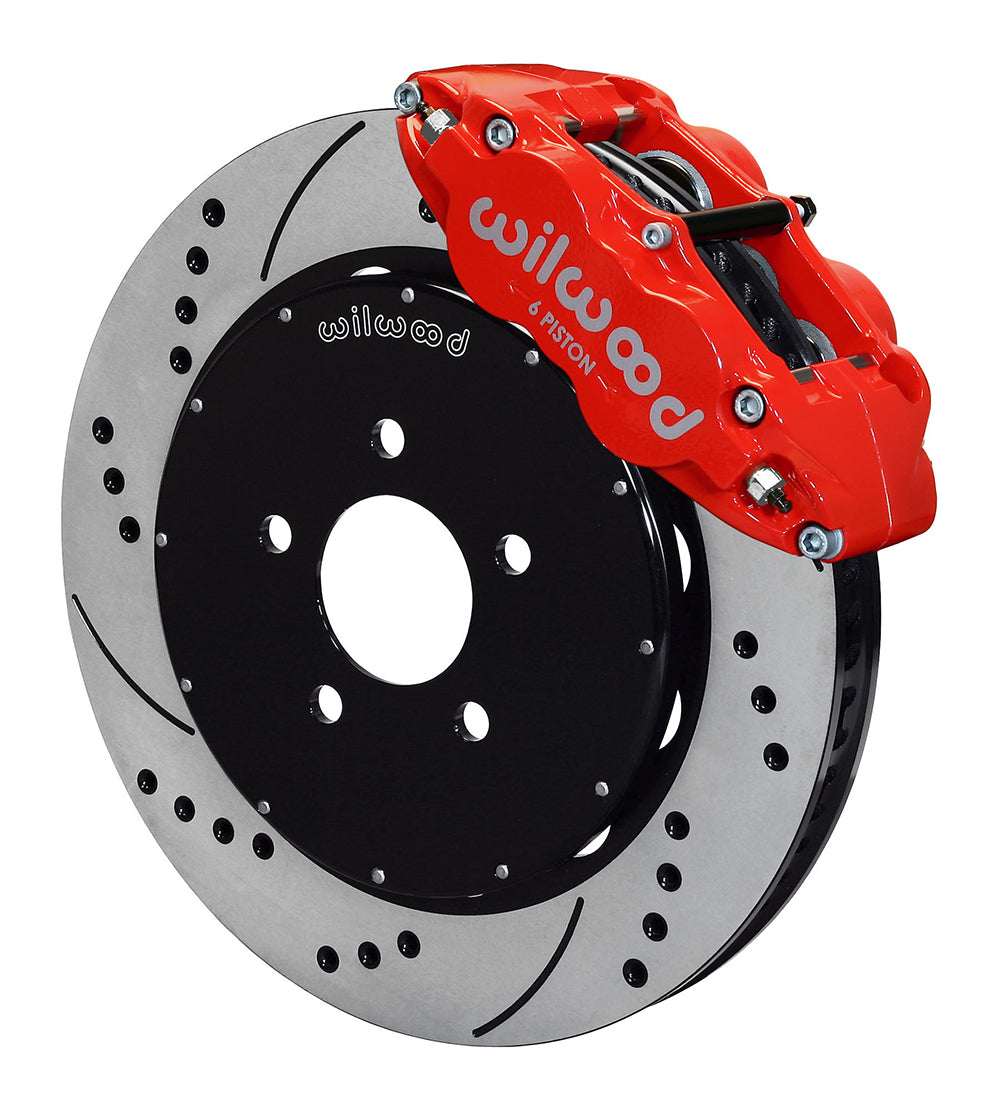

This red Superlite package combines the 14-inch SRP rotor option with Mustang-specific radial mounting brackets. The drilled/slotted iron rotors and retained factory hubs must satisfy the complete DS515 wheel and mounting requirements. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. It designs and manufactures disc brake components and complete systems, from calipers and brake rotors to valves, master cylinders, fittings and brake lines. Motorsport, street-performance and specialized installations each require those components to be matched to the complete brake system.
Technical Details
- Manufacturer part number: 140-9117-DR
- Included pad compound: BP-10; pistons: stainless steel
- Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
- Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
- Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; the existing hub/axle pattern is retained
- Hat/rotor stud-hole clearance: 0.580 in; 14.73 mm; this is not a wheel-stud thread designation
- Hydraulic hoses: not included; match the separate lines and fittings to the application

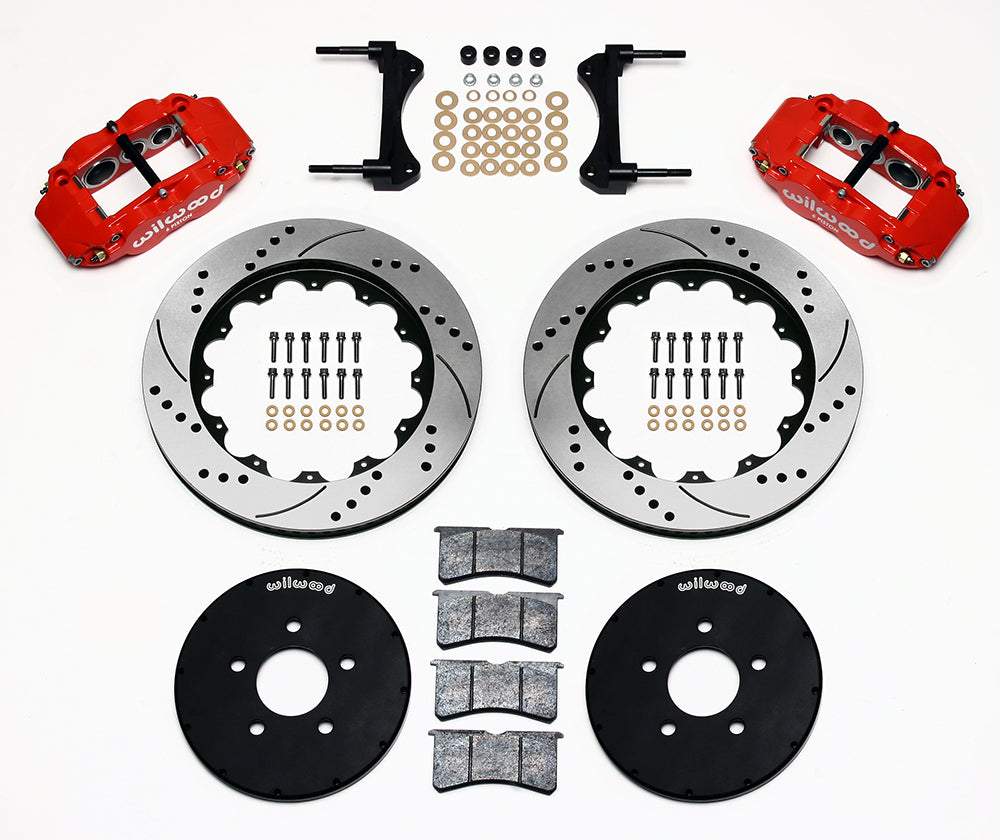

- Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
- Not included: master cylinder and brake booster
- Wheel clearance: 18-inch wheels may fit; check the complete manufacturer caliper/rotor template
- Quantity: sold as one axle kit
- Service calipers: 6-piston Forged Narrow Superlite 6R; Red Powder Coat; radial mounting
- Brake rotors: 14.00 x 1.25 inches; Spec-37 Iron; SRP Drilled & Slotted; vented
Fitment & Compatibility
For the listed 1994–2004 Ford Mustang five-lug, stock-offset front spindles. Base and GT coverage is supplemented by specific Cobra, Bullitt and Mach I entries. Observe the independent-rear-suspension exclusions attached to particular 1999–2001 applications in the table; a trim name alone does not override those restrictions.
Use the 14-inch wheel-clearance drawing in DS515, then check the retained hub and hat seating. The 220-6458 front hose kit is separate. Confirm the original spindle and mounting-bolt arrangement before installing the radial caliper brackets.
The table below gives the detailed vehicle coverage; match the individual entry and each referenced note.
Manufacturer Resources
- Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 1994-2004 | Ford | Mustang | Base | Base Models | Disc | Disc | Front Kit | 1, 2, 3 |
| 1994-2004 | Ford | Mustang | GT | GT Models | Disc | Disc | Front Kit | 1, 2, 3 |
| 1994-1998, 2003-2004 | Ford | Mustang | SVT Cobra | SVT Cobra | Disc | Disc | Front Kit | 1, 2, 3 |
| 1999-2000 | Ford | Mustang | SVT Cobra | SVT Cobra, Except Independent Rear Suspension (IRS) | Disc | Disc | Front Kit | 1, 2, 3 |
| 2001 | Ford | Mustang | SVT Cobra | SVT Cobra & Bullitt Except Independent Rear Suspension (IRS) | Disc | Disc | Front Kit | 1, 2, 3 |
| 2003-2004 | Ford | Mustang | Mach I | Mach 1 | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- 14" Rotor
- Line kit included (manufacturer): None
- Front line-kit reference: 220-6458
