Wilwood Front 14-Inch Drilled/Slotted Brake Kit — Black Superlite 6R for Ford Mustang Five-Lug Spindles (1994–2004)

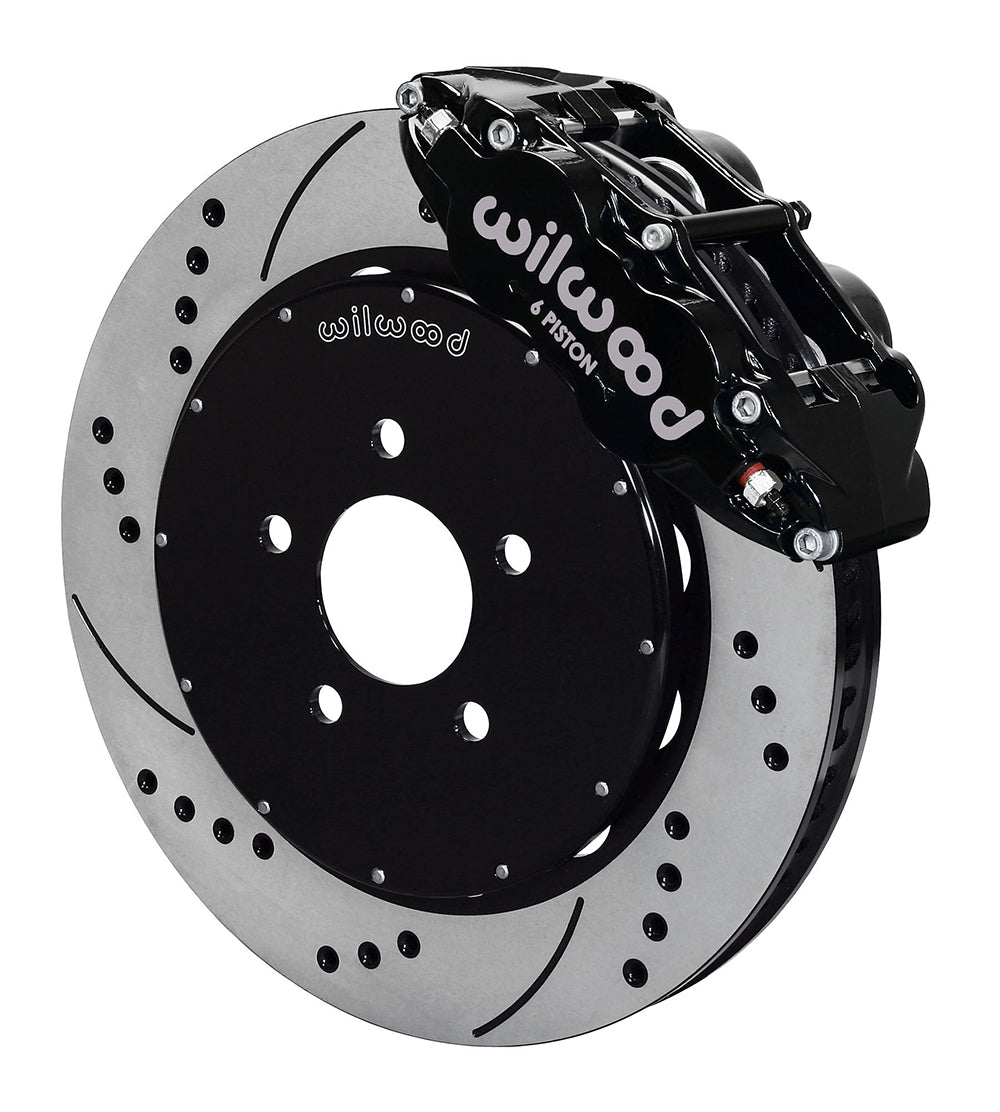

Black six-piston calipers accompany the 14-inch SRP rotor pair in this Mustang front package. It supplies brackets, hats and BP-10 pads for the documented five-lug hubs without changing the need to verify model-specific exclusions. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems and components since Bill Wood founded the company in 1977. Its work spans motorsport, street-performance and specialized applications, with a product range covering master cylinders, calipers, brake rotors, valves, fittings and brake lines. These parts must be chosen for the requirements of the entire brake system.

Technical Details

• Manufacturer part number: 140-9117-D
• Brake rotors: 14.00 x 1.25 inches; Spec-37 Iron; SRP Drilled & Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.580 in; 14.73 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

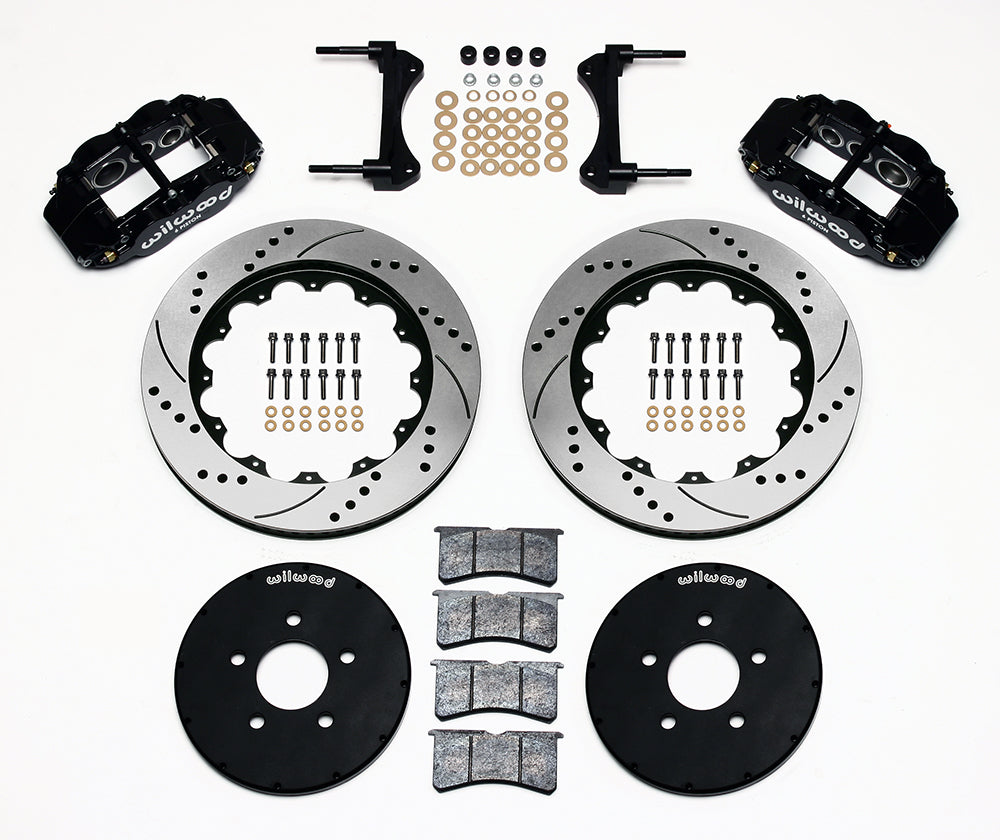

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 18-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 6-piston Forged Narrow Superlite 6R; Black Powder Coat; radial mounting

Fitment & Compatibility

For the listed 1994–2004 Ford Mustang five-lug, stock-offset front spindles. Base and GT coverage is supplemented by specific Cobra, Bullitt and Mach I entries. Observe the independent-rear-suspension exclusions attached to particular 1999–2001 applications in the table; a trim name alone does not override those restrictions.

Use the 14-inch wheel-clearance drawing in DS515, then check the retained hub and hat seating. The 220-6458 front hose kit is separate. Confirm the original spindle and mounting-bolt arrangement before installing the radial caliper brackets.

Check the full application table below, including its model-year splits and brake-configuration requirements.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Application Notes

1. 14" Rotor
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-6458
