Wilwood Front Black Six-Piston Mustang Kit (2005–2014) with 14-Inch GT-Slotted Rotors

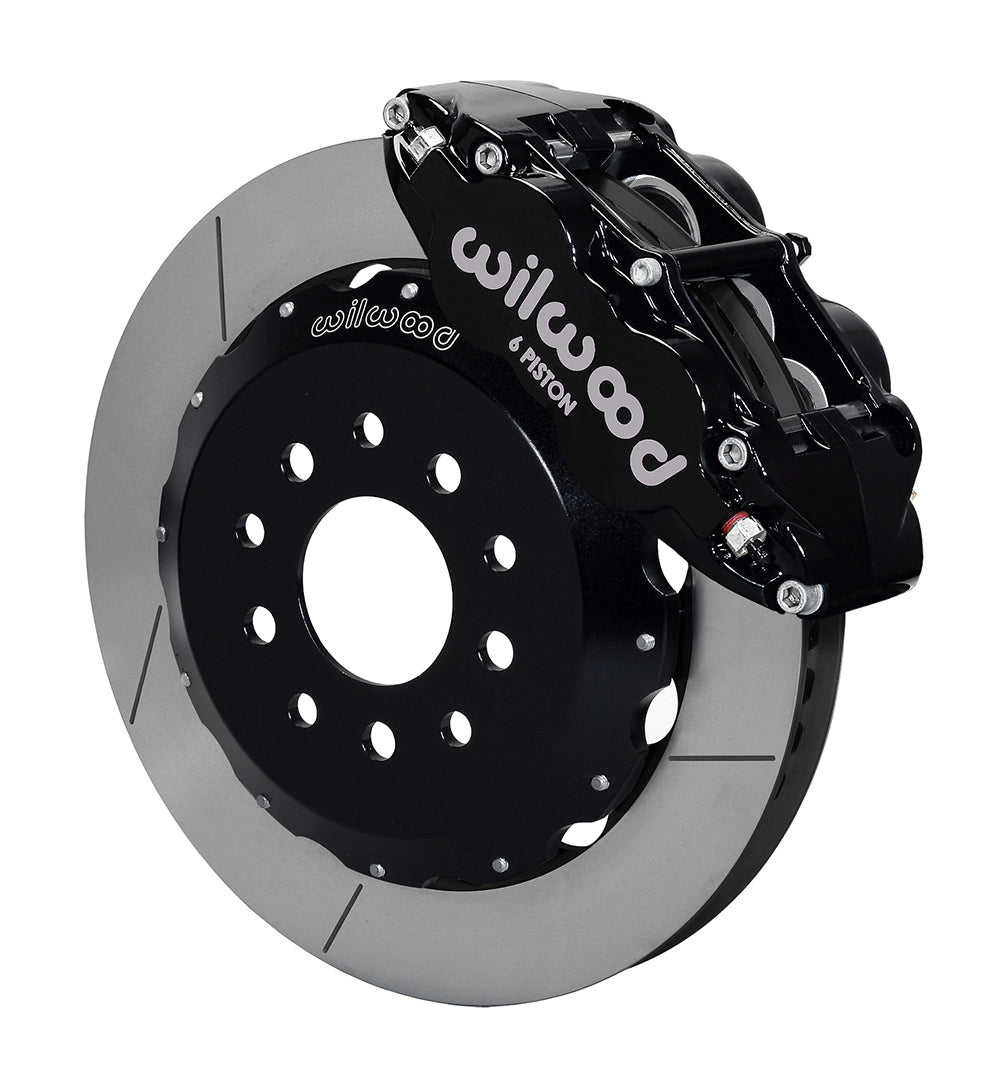

The 14-inch GT rotor assembly is paired with black six-piston Superlite calipers for this Mustang front package. It requires the DS521 wheel envelope and may require removal of the original dust plates for rotor clearance. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines as part of its disc brake systems and component range for motorsport, street-performance and specialized applications. Each component must suit the requirements of the complete brake installation.

Technical Details

• Manufacturer part number: 140-9110
• Service calipers: 6-piston Forged Narrow Superlite 6R; Black Powder Coat; radial mounting
• Brake rotors: 14.00 x 1.25 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.580 in; 14.73 mm; 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

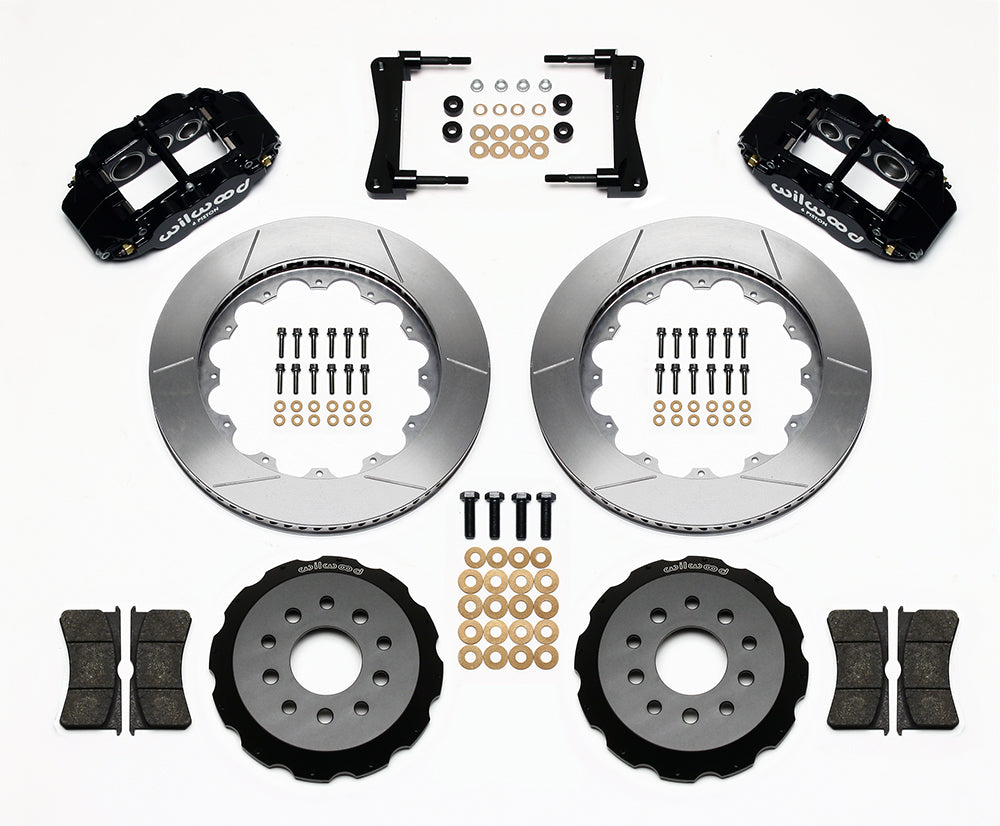

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 18-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit

Fitment & Compatibility

For the listed 2005–2014 Ford Mustang front applications with five-lug, stock-offset hubs. The table separates base, GT, Bullitt, Boss 302 and Shelby GT500 configurations by year. Confirm the exact factory package and wheel measurements before ordering.

The 14-inch assembly needs the wheel clearance shown in DS521; nominal 18-inch diameter alone is insufficient. The original dust plates may need removal. Order front hose kit 220-9111 separately and install its replacement line brackets using the specified factory hardware.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Application Notes

1. 14" Rotor
2. Front flexline kit 220-9111 is specified for this kit and is sold separately. Confirm fitting compatibility and hose routing for the vehicle.
3. Line kit included (manufacturer): None
4. Front line-kit reference: 220-9111
