Wilwood Front Superlite 6R Brake Kit, 13.06-Inch GT-Slotted Rotors and Black Calipers — Ford Mustang (2005–2014)

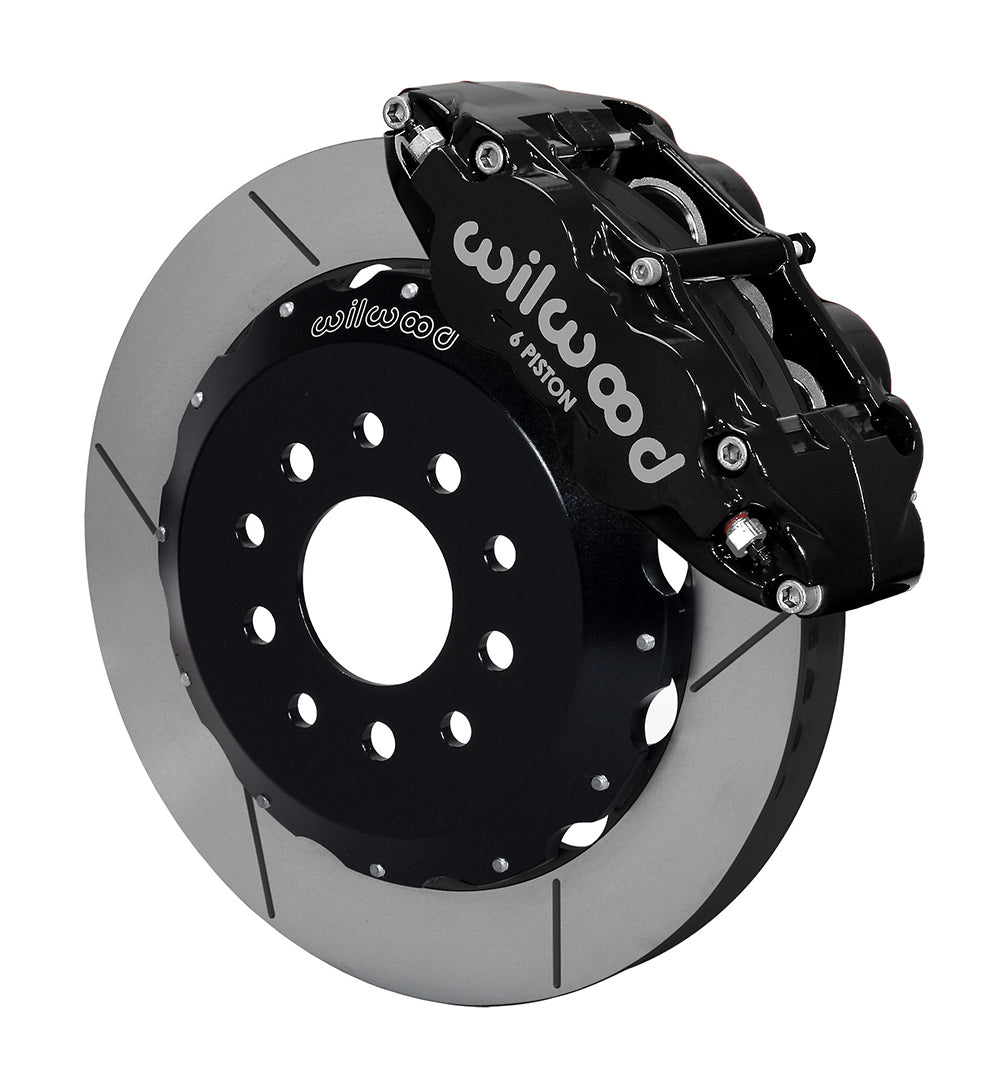

Black Superlite 6R calipers and 13.06-inch GT rotors form this S197 Mustang front conversion. The package retains the factory hubs and uses radial brackets, with dust-plate clearance assessed during the installation. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together within a properly matched brake system.

Technical Details

• Manufacturer part number: 140-9109
• Service calipers: 6-piston Forged Narrow Superlite 6R; Black Powder Coat; radial mounting
• Brake rotors: 13.06 x 1.25 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.580 in; 14.73 mm; 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

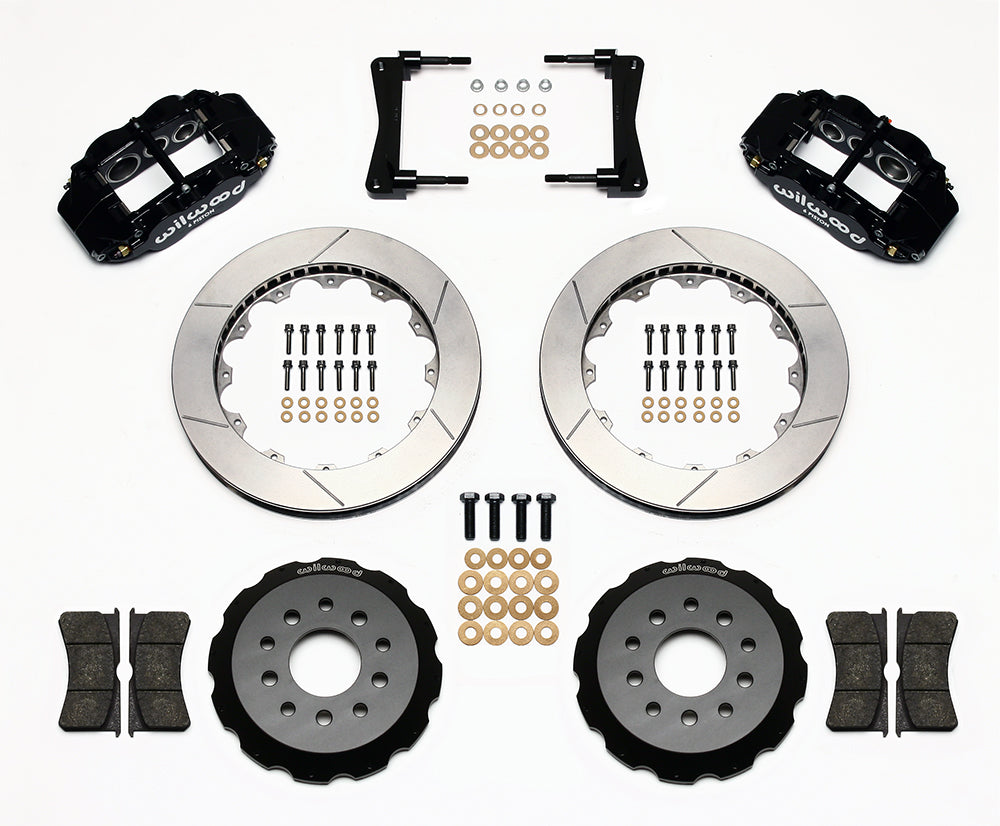

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit

Fitment & Compatibility

For the listed 2005–2014 Ford Mustang front applications with five-lug, stock-offset hubs. The table separates base, GT, Bullitt, Boss 302 and Shelby GT500 configurations by year. Confirm the exact factory package and wheel measurements before ordering.

DS520 describes the 13.06-inch conversion and notes that the original dust plates may need permanent removal for rotor clearance. Front flexline kit 220-9111 is separate and includes the replacement hose brackets; the factory bracket hardware is reused as instructed.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.

Vehicle Applications

Application Notes

1. Front flexline kit 220-9111 is specified for this kit and is sold separately. Confirm fitting compatibility and hose routing for the vehicle.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-9111
