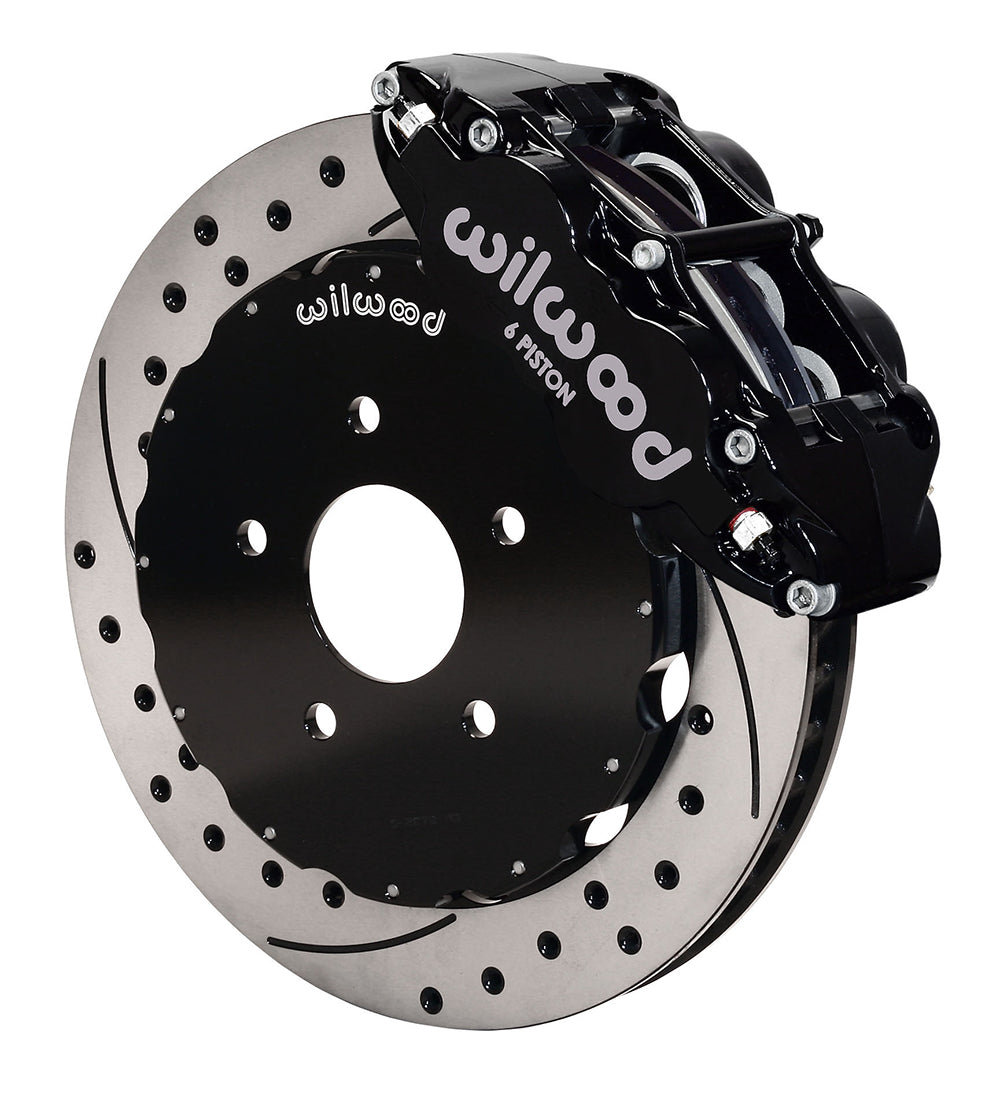

Wilwood Front Superlite 6R Brake Kit, 12.88-Inch Drilled/Slotted Rotors and Black Calipers — Ford Mustang Five-Lug Spindles (1994–2004)

The 12.88-inch SRP rotor pair gives this Mustang front kit drilled and slotted friction surfaces. Black Superlite calipers and BP-10 pads are supplied with the radial brackets; the original spindle and model-specific restrictions still determine fitment. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together within a properly matched brake system.

Technical Details

• Manufacturer part number: 140-9107-D
• Brake rotors: 12.88 x 1.25 inches; Spec-37 Iron; SRP Drilled & Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.580 in; 14.73 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

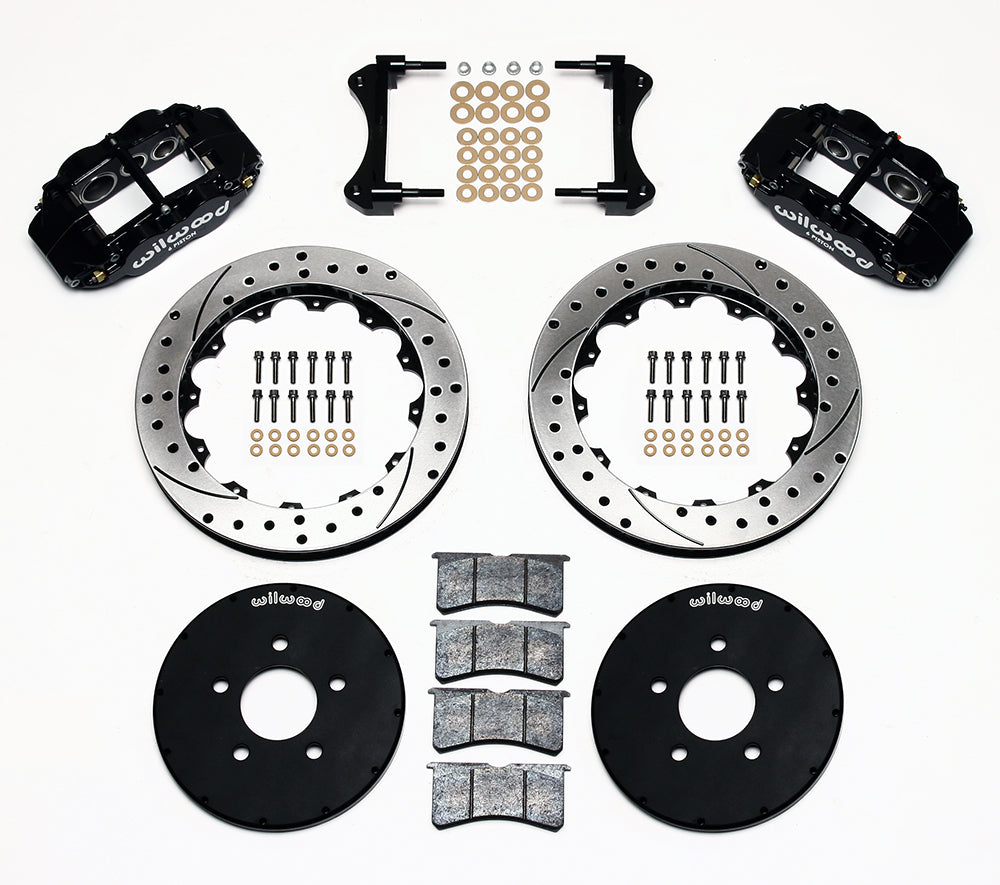

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 6-piston Forged Narrow Superlite 6R; Black Powder Coat; radial mounting

Fitment & Compatibility

For the listed 1994–2004 Ford Mustang five-lug, stock-offset front spindles. Base and GT coverage is supplemented by specific Cobra, Bullitt and Mach I entries. Observe the independent-rear-suspension exclusions attached to particular 1999–2001 applications in the table; a trim name alone does not override those restrictions.

Retain the factory hubs and confirm the 12.88-inch package against DS513. Wilwood-compatible front flexlines 220-6458 are sold separately. Verify the wheel template, mounting-bolt engagement and the resulting brake balance after assembly.

Check the full application table below, including its model-year splits and brake-configuration requirements.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-6458
