Wilwood Front Type III Anodized Superlite 4 Brake Kit for Scion tC (2005–2010), 12.88-Inch Drilled/Slotted Rotors

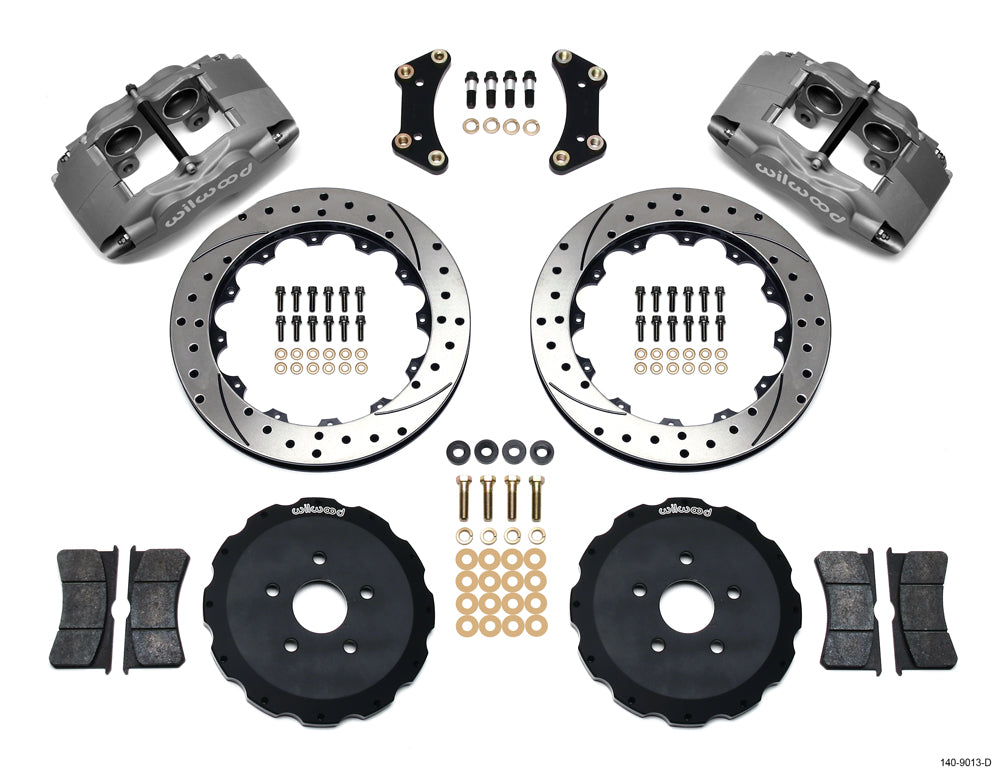

This drilled/slotted tC front conversion uses the verified 12.88-inch SRP rotor pair with anodized four-piston calipers. It is supplied with hats, brackets and BP-10 pads for the retained factory hubs, with hydraulic hoses ordered separately. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are all part of Wilwood Engineering’s range of disc brake systems and components. The Camarillo, California company was founded in 1977 by Bill Wood and designs and manufactures these products for motorsport, street-performance and specialized applications. Compatibility with the complete brake system determines the appropriate component choice.

Technical Details

• Manufacturer part number: 140-9013-D
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 3.93 in; 5 x 99.82 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application
• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 4-piston Forged Superlite Internal; Type III Anodize; lug mounting

Fitment & Compatibility

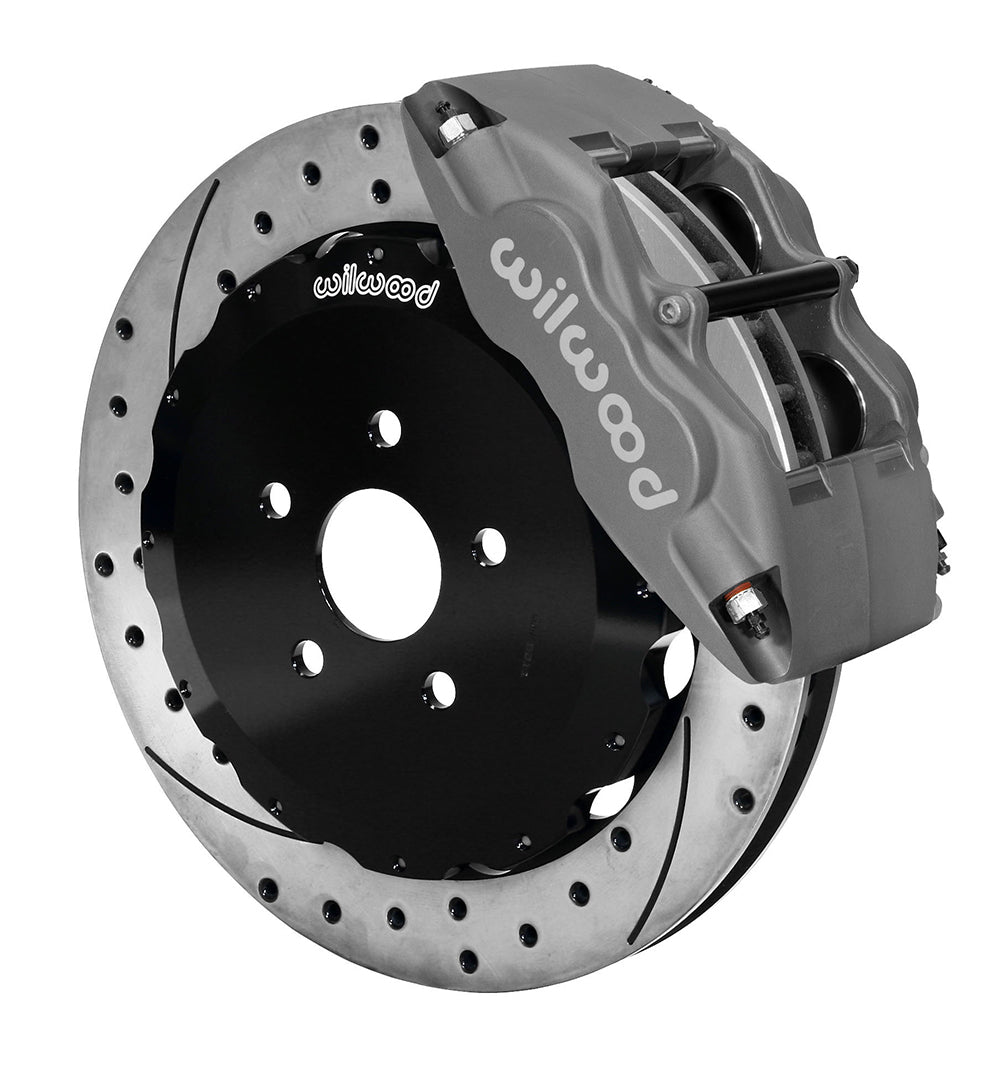

For the first-generation Scion tC applications listed from 2005–2010. The actual rotor specification is 12.88 inches in diameter and 1.10 inches thick. The kit fits over the retained factory front hubs and uses four-piston Superlite Internal calipers.

Check the existing hub pattern and the complete wheel envelope in DS510. Front flexline kit 220-9365 is separate. The factory master cylinder can be used as documented, but the completed system still requires brake-bias evaluation and testing.

Check the full application table below, including its model-year splits and brake-configuration requirements.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-9365
